15LW1401
|
|
15LW1401 |
|
| 15" HIGH POWER WOOFER |
|
EIHTEEN SOUND 15LW1401 15" SUBWOOFER SPEAKER HAS A STRONG TIGHT CLEAN BASS SOUND! |
|
|
|
15LW1401 |
|
Item Price: $359.95 |
|
|
WOOFER MODEL |
15LW1401 |
|
Specifications |
|
|
Diameter |
15" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
1,000 Watts |
| Program Power | 2,000 Watts |
|
Sensitivity
(1W/1m) |
98dB SPL |
|
Frequency
Response |
40Hz - 2.4kHz |
| Recommended Crossover | 800Hz |
| Voice Coil Diameter |
4"
/ 100mm |
| BL Factor | 24.2 TM |
| Recommended Enclosure Volume | 2.47-5.3 cu. ft / 70-150Liters |
| Magnet | Ferrite |
|
Mounting Information |
|
| Overall Diameter | 15.23" / 387mm |
| Bolt Circle Diameter | 14.55" / 370mm |
| Baffle Cutout Diameter | 13.9" / 353mm |
| Overall Depth | 6.43" / 163.4mm |
| Flange Thickness | .76" / 19.5mm |
| Net Weight | 27.37 lbs. / 12.4 kg. |
| Shipping Weight | 29.58 lbs. / 13.4 kg. |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 42 Hz |
| Impedance (Re) | 5 ohms |
| Coil Inductance (Le) | 2.15mH |
| Mechanical Q (Qms) | 5.36 |
| Electrical Factor(Qes) | .28 |
| Total Q (Qts) | .27 |
| Comp. Equivelant Vol. (Vas) | 4.63 ft3 / 131 Liters |
| Voice Coil Overhang (Xmax) | 9.0mm |
| Surface Area of Cone (Sd)m2 | 0.09m2 |

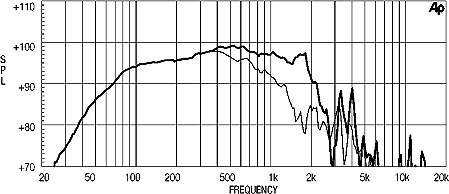

| Frequency response in 125 Liter enclosure tuned to 50Hz | |
 |
|
