15MB700
|
|
15MB700 |
|
| 15" VERY HIGH OUTPUT MIDBASS |
|
VERY HIGH EFFICIENCY OF 103DB SPL W/ 800 WATTS POWER HANDLING! |
|
|
|
15MB700 |
|
Item Price: $279.95 |
|
|
WOOFER MODEL |
15MB700 |
|
Specifications |
|
|
Diameter |
15" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
400 Watts |
| Program Power | 800 Watts |
|
Sensitivity
(1W/1m) |
103dB SPL |
|
Frequency
Response |
45Hz - 4.3kHz |
| Recommended Crossover | 3.0kHz |
| Voice Coil Diameter |
3"
/ 75mm |
| BL Factor | 17.6 TM |
| Recommended Enclosure Volume | 2.65-4.6 cu. ft / 75-130Liters |
| Magnet | Ferrite |
|
Mounting Information |
|
| Overall Diameter | 15.23" / 387mm |
| Bolt Circle Diameter | 14.55" / 370mm |
| Baffle Cutout Diameter | 13.9" / 353mm |
| Overall Depth | 6.59" / 167.5mm |
| Flange Thickness | .76" / 19.5mm |
| Net Weight | 18.3 lbs. / 8.3 kg. |
| Shipping Weight | 20.75 lbs. / 9.4 kg. |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 42 Hz |
| Impedance (Re) | 5.0 ohms |
| Coil Inductance (Le) | 1.2mH |
| Mechanical Q (Qms) | 4.5 |
| Electrical Factor(Qes) | .31 |
| Total Q (Qts) | .29 |
| Comp. Equivelant Vol. (Vas) | 7.14 ft3 / 202 Liters |
| Voice Coil Overhang (Xmax) | 5.5mm |
| Surface Area of Cone (Sd)m2 | 0.085m2 |

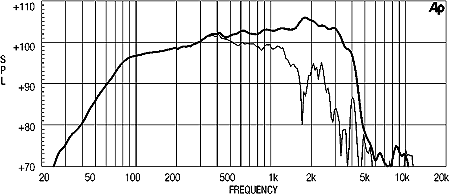

| Frequency response in 125 Liter enclosure tuned to 50Hz | |
 |
|
