BASSLITE SC10-16 - 10" BASS SPEAKER
|
|
|
BASSLITE SC10-16 - 10" BASS SPEAKER |
|
THE EMINENCE BASSLITE SC10-16 IS A LIGHTWEIGHT NEODYMIUM 10" BASS GUITAR SPEAKER THAT IS SPECIALLY DESIGNED FOR SEALED BASS CABINETS! |
|
|
|
Item Price: $134.99 Free UPS Ground Shipping in the U.S. |
|
WOOFER
MODEL |
BassLite SC10-16 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
10"
/ 254mm |
|
Impedance |
16
ohms
|
|
RMS
Power Rating |
150
Watts |
|
Frequency
Response |
50Hz
- 4.2kHz |
| Sensitivity | 94.3dB SPL |
|
Voice Coil Diameter |
2" / 50.8mm |
|
MOUNTING INFORMATION |
|
|
Overall Diameter |
10.08" / 256mm |
| Bolt Circle Diameter | 9.66" / 245.4mm |
| Baffle Cutout Diameter | 9.18" / 233.2mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.25" / 6.4mm |
| Overall Depth | 4.25" / 108mm |
| Magnet Weight | 4 oz. |
| Net Weight | 3.5 lbs./ 1.59 kg. |
| Shipping Weight | 4.6 lbs./ 2.09 kg. |
|
MATERIALS |
|
| Cone | Paper |
| Voice Coil | Copper |
| Former | Polyimide |
| Magnet | Neodymium |
| Core | Non Vented |
| Basket | Pressed Steel |
| Surround | Cloth |
| Dust Cap | Solid Composition Felt |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 46Hz |
| Impedance (Re) | 12.21 ohms |
| Coil Inductance (Le) | 0.89mH |
| Electromagnetic Q (Qes) | .56 |
| Mechanical Q (Qms) | 2.23 |
| Total Q (Qts) | .45 |
| Compliance Equiv. Vol. (Vas) | 78.27 Liters/2.276cu. ft. |
| Voice Coil Overhang (Xmax | 4.4mm |
| Diaphragm Mass (Mms) | 26 Grams |
| Surface Area of Cone (Sd) | .03501 m2 |
| BL Product (BL) | 12.75 T-M |
| Peak Dia. Displacement Volume(Vd) | 154cc |
|

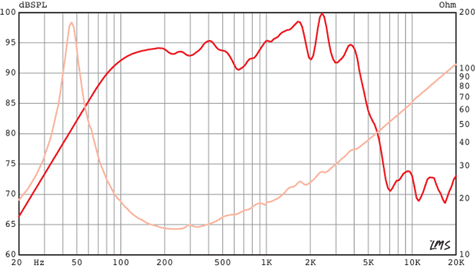

BASSLITE SC10-16 RESPONSE CURVE |
|
|
|
|
