EMINENCE DELTA LITE II 2512 - 12" LIGHTWEIGHT SPEAKER

THE EMINENCE DELTALITE II 2512 HANDLES 250 WATTS RMS POWER W/ A CLEAN SOUND THAT IS TIGHT AND CRISP & WEIGHS ONLY 5.1LBS

Eminence Delta Lite II 2512Eminence Delta Lite II 2512

Item Price: $194.99

Free UPS Ground Shipping in the U.S.

WOOFER MODEL

Delta Lite II 2512

SPECIFICATIONS

Nominal Basket Diameter

12" / 304.8mm

Impedance

8 ohms

RMS Power Rating

250 Watts

Program Power Rating 500 Watts

Frequency Response

58Hz - 4.3kHz

Sensitivity 99.9dB SPL

Voice Coil Diameter

2.5" / 63.5mm

Magnet Weight

7 oz.

Rec. Enclosure Volume(Sealed) .9-1.5cu. ft./25.5-42.5 Liters
Rec. Enclosure Volume(Vented) 1.15-4.5cu. ft./32.6-127.4 Liters

MOUNTING INFORMATION

Overall Diameter 12.38" / 314.5mm
Bolt Circle Diameter 11.62" / 295.1mm
Baffle Cutout Diameter 11.06" / 280.9mm
No. Of Mounting Holes 8
Mounting Hole Diameter 0.28" / 7mm
Overall Depth 6.06" / 154mm
Net Weight 5.1 lbs. / 2.3kg.
Shipping Weight 6.8 lbs. / 3.1kg.
MATERIALS
Cone Paper
Voice Coil Aluminum
Magnet Neodymium
Basket Die-Cast Aluminum
Surround Cloth
Dust Cap Solid Composition Paper

THIELE-SMALL PARAMETERS

Resonant Frequency (fs) 44 Hz
Impedance (Re) 5.17 ohms
Coil Inductance (Le) 0.43mH
Electromagnetic Q (Qes) .45
Mechanical Q (Qms) 4.17
Total Q (Qts) .41
Compliance Equivalent Vol. (Vas) 134.88 Liters/4.76cu. ft.
Voice Coil Overhang (Xmax) 4.9mm
Surface Area of Cone (Sd) .05195m2
Moving Mass (Mms) 37 Grams
BL Product (BL) 10.69 T-M
Peak Dia. Displacement Volume(Vd) 255cc

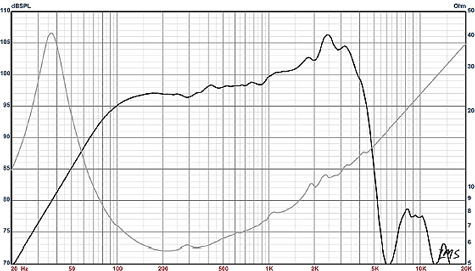

DELTALITE II 2512 RESPONSE CURVE
