LEGEND BP102-8 - 10" BASS GUITAR SPEAKER |
THE EMINENCE LEGEND BP102-8 IS SPECIALIZED 10" FOR BASS GUITAR W/ CLEAN DEEP BASS DOWN TO 40HZ! |
|
Free UPS Ground Shipping in the U.S. |
|
LEGEND BP102-8 |
|
8 Ohms Item Price: $114.99 |
|
WOOFER
MODEL |
LEGEND BP102-8 |
Specifications |
|
Nominal
Basket Diameter |
10" / 254mm |
Impedance | 8 ohms |
RMS Power Rating | 200 Watts |
Frequency Response | 40Hz - 2.0kHz |
Sensitivity (1W/1m) SPL |
91.8dB |
Voice Coil Diameter | 2" / 50.8mm |
Gap Height | 0.312" / 7.92mm |
Rec. Enclosure Volume(Sealed) | .5-1.1cu. ft./14-31 Liters |
Rec. Enclosure Volume(Vented) | .9-2.7cu. ft./25-75 Liters |
Mounting
Information |
|
Overall Diameter | 10.08" / 256mm |
Bolt Circle Diameter | 9.67" / 245.6mm |
Baffle Cutout Diameter | 9.05" / 229.9mm |
No. Of Mounting Holes | 8 |
Mounting Hole Diameter | 0.25" / 6.4mm |
Overall Depth | 4.25" / 108mm |
Magnet Weight | 38 oz. |
Net Weight | 8.9lbs. / 4.0 kg. |
Shipping Weight | 9.1lbs. / 4.13 kg. |
Materials |
|
Basket Type | Pressed Steel |
Voice Coil | Copper |
Coil Former Material | Polyimide |
Cone | Paper |
Surround | Cloth |
Dust Cap | Zurette |
Core | Non Vented |
Magnet | Ferrite |
Thiele-Small Parameters |
|
Resonant Frequency (fs) | 35 Hz |
Impedance (Re) | 5.59 ohms |
Coil Inductance (Le) | 0.83mH |
Electromagnetic Q (Qes) | .47 |
Mechanical Q (Qms) | 5.36 |
Total Q (Qts) | .43 |
Compliance Equivalent Vol. (Vas) | 91.2 Liters/3.22cu. ft. |
Voice Coil Overhang (Xmax) | 6.2mm |
Diaphragm Mass (Mms) | 38 Grams |
BL Product (BL) | 10.0 T-M |
Surface Area Of Cone (Sd) | .03345m2 |

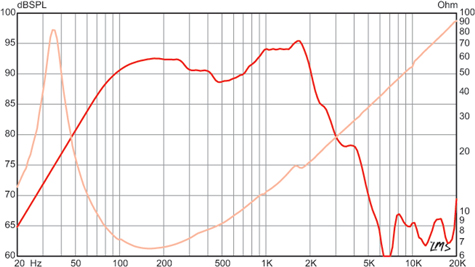

LEGEND BP102-8 FREQUENCY RESPONSE CURVE |
|
|
