ELECTRO-VOICE

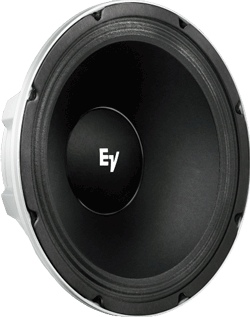

EVM-12L Black Label - Zakk Wylde 12" Signature Guitar Speaker
|
|
ELECTRO-VOICE |
|
EVM-12L Black Label - Zakk Wylde 12" Signature Guitar Speaker |
|
| DELIVERS A CREAMY SMOOTH SOUND WITH GOOD POWER HANDLING FOR THE MOST DEMANDING GUITAR PLAYERS! | |
  |
Item Price: $279.95 Free UPS Ground Shipping in the U.S. |
|
WOOFER
MODEL |
EVM-12L Black Label |
|
Specifications |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
|
Long Term Power Rating |
300 Watts |
|
Frequency
Response |
80Hz
- 7khz |
|
Sensitivity
(1W/1m) |
100dB |
| Max SPL |
125dB |
|
Voice
Coil Diameter |
2.5"
/ 63.5mm |
|
Mounting Information |
|
|
Overall
Diameter |
12.19" / 309.6 mm |
| Bolt Circle Diameter | 11.56" / 293.7 mm |
|
Baffle
Cutout Diameter |
11.06" / 281 mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.275" / 7mm |
| Overall Depth | 5.25" / 133.4 mm |
| Magnet Diameter | 7.5" / 190.5 mm |
| Magnet Weight | 16 lbs. / 7.27 kg. |
| Net Weight | 18.92 lbs. / 8.6 kg. |
|
Materials |
|
|
Basket |
Cast Aluminum |
| Voice Coil | Edgewound Aluminum Flat Wire |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 55 Hz |
|
Impedance
(Re) |
5.4 ohms |
| Coil Inductance (Le) | 1.27mH |
| Electromagnetic Q (Qes) | .245 |
| Mechanical Q (Qms) | 4.37 |
| Total Q (Qts) | .232 |
| Compliance Equivalent Vol. (Vas) | 82.9 liters / 2.9 cu.ft. |
| Voice Coil Overhang (Xmax) | 3.3mm |
| Surface Area of Cone (Sd) | .05 m2 |
| Efficiency No. % | 5.9% |
| Displacement Volume | .0059 m2 |
