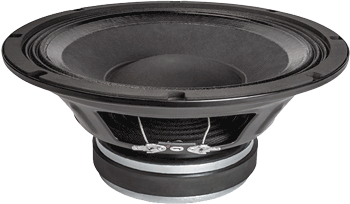

FAITAL PRO 10FE300 - 10" SPEAKER

THE FAITAL PRO 10FE300 HAS SMOOTH BASS & LOUD MIDS WITH 150 WATTS AES POWER HANDLING!

Faital Pro 10FE300

Coming Sept. 2021

Item Price: $100.95

WOOFER MODEL 10FE300

Specifications

Nominal Basket Diameter 10" / 250mm
Impedance 8 ohms
AES Power Rating 250 Watts
Program Power 500 Watts
Frequency Response 50Hz - 4.5kHz
Sensitivity (1W/1m) 96dB SPL
Winding Depth 2.05" / 52mm
Voice Coil Length 13.7 mm
Magnetic Gap Depth 8 mm
X Damage 13.1 mm
BL Factor 11.3 N/A

Mounting Information

Overall Diameter 10.24" / 260m
Bolt Circle Diameter 9.69" / 246mm
Baffle Cutout Diameter-Front Mount 9.17" / 233mm
No. Of Mounting Holes 8
Overall Depth 4.33" / 110mm
Flange & gasket Thickness 0.28" / 7mm
Net Weight 7.1 lb. / 3.2 kg.
Shipping Weight 8.2 lb. / 3.7 kg.

Materials

Basket Steel
Cone Paper Pulp (Weather Proof)
Surround Treated Cloth
Surround Shape Triple Roll
Former Material Glass Fiber
Voice Coil Aluminum
Magnet Ferrite

Thiele-Small Parameters

Resonant Frequency (fs) 50 Hz
Impedance (Re) 5.8 ohms
Coil Inductance (Le) 0.42 mH
Mechanical Q (Qms) 13.1
Electrical Factor (Qes) .54
Total Q (Qts) .52
Comp. Equivelant Vol. (Vas) 1.78 ft3 / 50.5 Liters
Voice Coil Overhang (Xmax) 5.52 mm
Surface Area of Cone (Sd)m2 0.0358m2
Reference Efficiency 1.2%
Diaphragm Mass (Mms) 35.9 Grams
Mechanical Compliance (Cms) .28 mm/N
Mechanical Resistance (Rms) .9 Kg/s

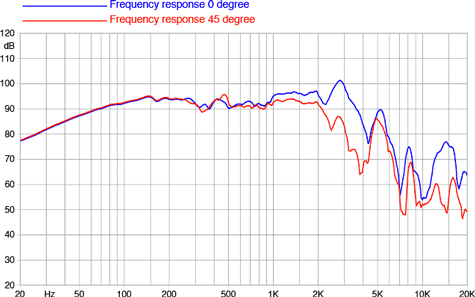

Frequency Response

Faital Pro 10FE300 Frequency

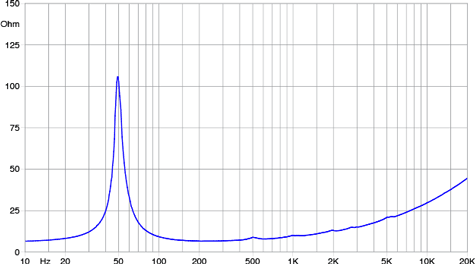

Free Air Impedance Curve
Faital Pro 10FE300 Impedance

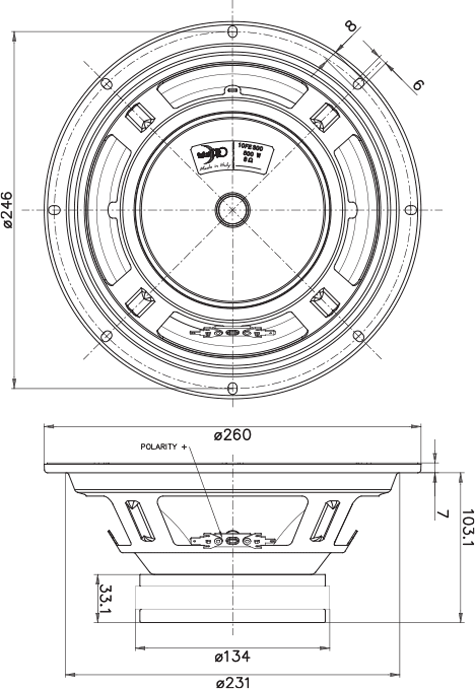

Mounting Dimensions

Faital Pro 10FE300 Drawing
