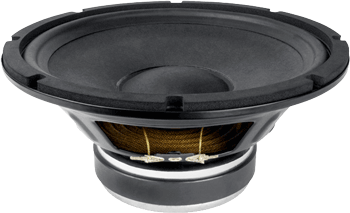

FAITAL PRO 10FE330 - 10" SPEAKER
|
|
|
FAITAL PRO 10FE330 - 10" SPEAKER |
|
THE FAITAL PRO 10FE330 HAS A TIGHT DEEP BASS & DETAILED MIDS WITH 250 WATTS AES POWER HANDLING! |
|
|
|
Item Price: $127.95 |
| WOOFER MODEL | 10FE330 |
|
Specifications |
|
|
Nominal
Basket Diameter |
10" |
|
Impedance |
8 ohms |
|
AES
Power Rating |
250 Watts |
| Program Power | 500 Watts |
| Frequency Response | 35Hz - 4kHz |
|
Sensitivity
(1W/1m) |
92dB SPL |
| Voice Coil Diameter | 2.05" / 52mm |
| Winding Depth | .76" / 19.3mm |
| Magnetic Gap Depth | 8 mm |
| X Damage | 13.6 mm |
| BL Factor | 12.6 N/A |
|
Mounting Information |
|
| Overall Diameter | 10.24" / 260m |
| Bolt Circle Diameter | 9.69" / 246mm |
| Baffle Cutout Diameter-Front Mount | 9.17" / 233mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 4.33" / 110mm |
| Flange & gasket Thickness | 0.28" / 7mm |
| Net Weight | 7.7 lb. / 3.47 kg. |
| Shipping Weight | 8.8 lb. / 4.0 kg. |
|
Materials |
|
| Basket | Steel |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Rubber |
| Surround Shape | Half Roll |
| Former Material | Glass Fiber |
| Voice Coil | Aluminum |
| Magnet | Ferrite |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 35 Hz |
| Impedance (Re) | 5.3 ohms |
| Coil Inductance (Le) | 0.42 mH |
| Mechanical Q (Qms) | 6.7 |
| Electrical Factor (Qes) | .43 |
| Total Q (Qts) | .40 |
| Comp. Equivelant Vol. (Vas) | 2.56 ft3 / 72.4 Liters |
| Voice Coil Overhang (Xmax) | 8.32 mm |
| Surface Area of Cone (Sd)m2 | 0.0382m2 |
| Reference Efficiency | .7% |
| Diaphragm Mass (Mms) | 58.2 Grams |
| Mechanical Compliance (Cms) | .36 mm/N |
| Mechanical Resistance (Rms) | 1.9 Kg/s |
|

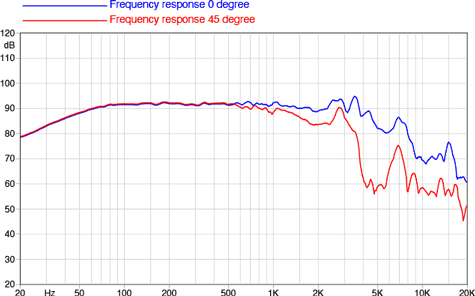

Frequency Response |
|
|
|
|

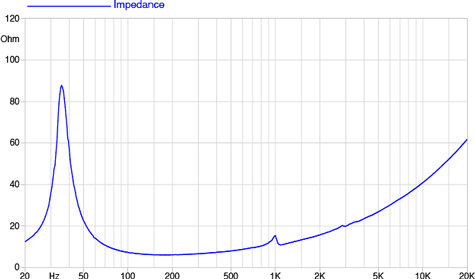

| Free Air Impedance Curve | |
 |
|
|

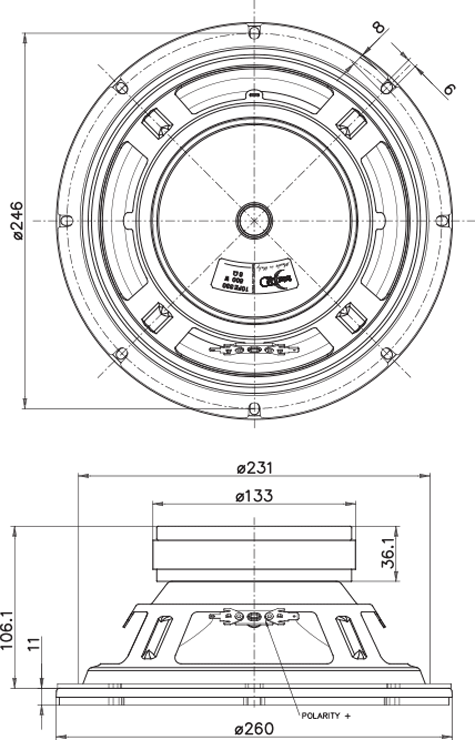

Mounting Dimensions |
|
|
|
|
