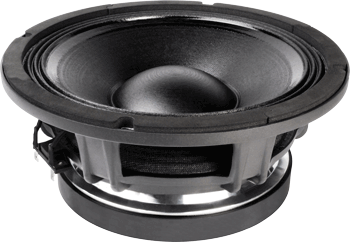

FAITAL PRO 10FH530 - 10" SPEAKER
|
|
|
FAITAL PRO 10FH530 - 10" SPEAKER |
|
THE 10FH530 IS A NICE BASS GUITAR OR MID-BASS SPEAKER THAT HAS A POWERFUL TIGHT BASS AND CLEAN LOUD MIDS W/ 500 WATTS AES POWER HANDLING! |
|
|
|
Item Price: $285.95 |
| WOOFER MODEL | 10FH530 |
|
Specifications |
|
|
Nominal
Basket Diameter |
10" |
|
Impedance |
8 ohms |
|
AES
Power Rating |
500 Watts |
| Program Power | 1,000 Watts |
| Frequency Response | 60Hz - 4.0kHz |
|
Sensitivity
(1W/1m) |
97dB SPL |
| Voice Coil Diameter | 3.0" / 77mm |
| Voice Coil Length | 18.5 mm |
| Air Gap Height | 10.5 mm |
| X Damage | 18.8 mm |
| Flux Density | 1.2 T |
| BL Factor | 19.5 N/A |
|
Mounting Information |
|
| Overall Diameter | 10.28" / 261mm |
| Bolt Circle Diameter | 9.69" / 246mm |
| Baffle Cutout Diameter-Front Mount | 9.06" / 230mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 5.12" / 130mm |
| Flange & gasket Thickness | 0.45" / 11.5mm |
| Net Weight | 16.5 lb. / 7.5 kg. |
| Shipping Weight | 17.6 lb. / 8.0 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Treated Cloth |
| Surround Shape | Triple Roll |
| Demodulation Ring | Aluminum Ring |
| Former Material | Glass Fiber |
| Voice Coil | Aluminum |
| Magnet | Ferrite |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 60 Hz |
| Impedance (Re) | 5.1 ohms |
| Coil Inductance (Le) | 0.8 mH |
| Mechanical Q (Qms) | 12.4 |
| Electrical Factor (Qes) | .25 |
| Total Q (Qts) | .25 |
| Comp. Equivelant Vol. (Vas) | .72 ft3 / 20.4 Liters |
| Voice Coil Overhang (Xmax) | 7.5 mm |
| Surface Area of Cone (Sd)m2 | 0.0321m2 |
| Reference Efficiency | 1.7% |
| Diaphragm Mass (Mms) | 50.3 Grams |
| Mechanical Compliance (Cms) | .14 mm/N |
| Mechanical Resistance (Rms) | 1.53 Kg/s |
|

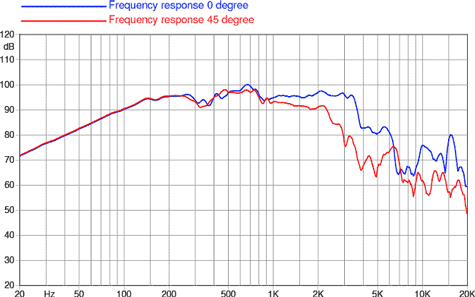

Frequency Response |
|
|
|
|
| Free Air Impedance Curve | |
 |
|
|

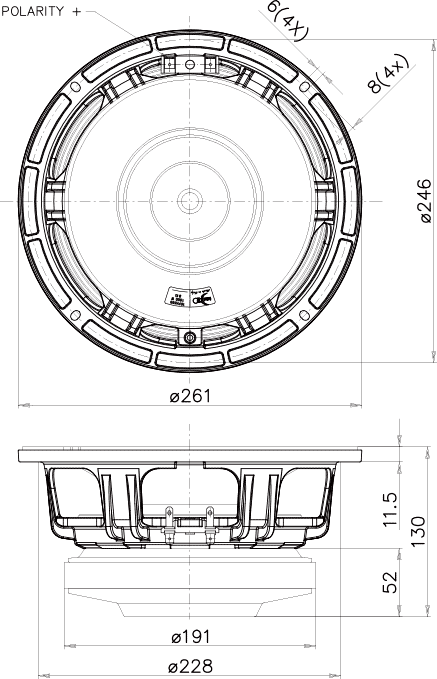

Mounting Dimensions |
|
|
|
|
