• THE FAITAL PRO 10HP1020 10" SPEAKER CAN HANDLE 700 WATTS AES & 1,400 WATTS PROGRAM POWER
• EFFICIENCY IS 96DB SPL & HAS A VERY HIGH 9.0MM XMAX FOR CLEAN STRONG SOUND
• LARGE 4" VOICE COIL, DOUBLE SPIDER, HIGH 25.7 BL FACTOR & A WIDE FREQUENCY RANGE FROM 60HZ TO 4.0KHZ
• WEIGHS ONLY 11.44 LBS. THANKS TO ITS' LIGHTWEIGHT NEODYMIUM MAGNET
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• WORKS GREAT FOR 2 OR 3-WAY HIGH POWER PA SPEAKER SYSTEMS & BASS GUITAR CABINETS

THE 10HP1020 HANDLES POWERFUL BASS & MIDS WITH 700 WATTS AES POWER HANDLING!
	Item Price: $399.95
WOOFER MODEL	10HP1020
Specifications
Nominal Basket Diameter	10" / 250mm
Impedance	8 ohms
AES Power Rating	700 Watts
Program Power	1,400 Watts
Frequency Response	60Hz - 4.0kHz
Sensitivity (1W/1m)	96dB SPL
Voice Coil Diameter	4" / 100mm
Voice Coil Length	22 mm
Air Gap Height	12 mm
X Damage	12.5 mm
BL Factor	25.7 N/A
Mounting Information
Overall Diameter	10.28" / 261mm
Bolt Circle Diameter	9.69" / 246mm
Baffle Cutout Diameter-Front Mount	9.06" / 230mm
No. Of Mounting Holes	8
Overall Depth	5.56" / 141.3mm
Flange & gasket Thickness	0.49" / 12.5mm
Net Weight	11.44 lb. / 5.2 kg.
Shipping Weight	12.76 lb. / 5.8 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Former Material	Glass Fiber
Voice Coil	Aluminum
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	60 Hz
Impedance (Re)	5.5 ohms
Coil Inductance (Le)	1.3 mH
Mechanical Q (Qms)	6.5
Electrical Factor (Qes)	.25
Total Q (Qts)	.24
Comp. Equivelant Vol. (Vas)	0.48 ft3 / 13.7 Liters
Voice Coil Overhang (Xmax)	9.0 mm
Surface Area of Cone (Sd)m2	0.0315m2
Reference Efficiency	1.14%
Diaphragm Mass (Mms)	72.5 Grams
Mechanical Compliance (Cms)	.1 mm/N
Mechanical Resistance (Rms)	4.2 Kg/s

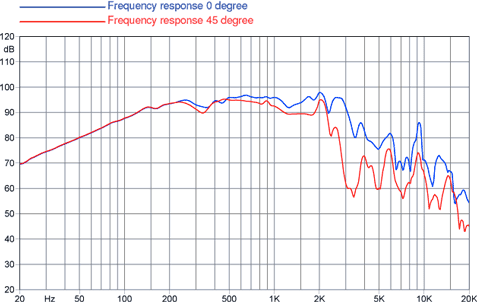

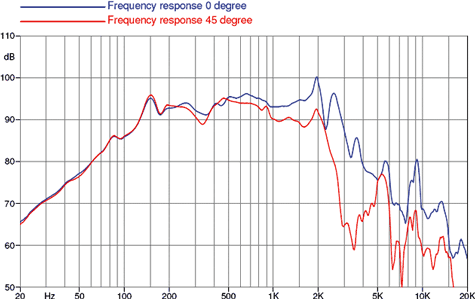

Frequency Response

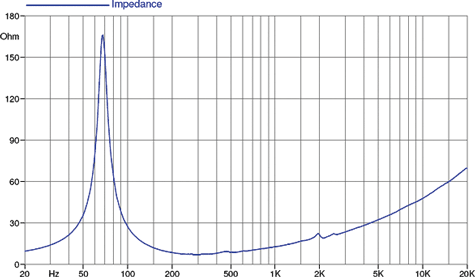

Free Air Impedance Curve

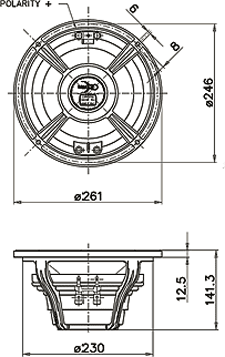

Mounting Dimensions
