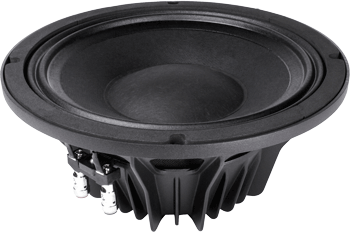

• THE FAITAL PRO 10PR300 10" SPEAKER CAN HANDLE 300 WATTS AES & 600 WATTS PROGRAM POWER
• GOOD EFFICIENCY OF 98DB SPL & A 4.92MM XMAX FOR CLEAN TIGHT SOUND
• WIDE FREQUENCY RANGE FROM 60HZ TO 5.0KHZ
• WEIGHS ONLY 4.62 LBS. THANKS TO ITS' LIGHTWEIGHT NEODYMIUM MAGNET
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• WORKS GREAT FOR 2 OR 3-WAY HIGH POWER PA SPEAKER SYSTEMS & BASS GUITAR CABINETS
• NOW AVAILABLE IN 4, 8 OR 16 OHMS

THE FAITAL PRO 10PR300 IS A NICE BASS GUITAR SPEAKER THAT HAS SMOOTH CLEAN MIDS & BASS WITH 300 WATTS AES POWER HANDLING!
	4 ohm version Item Price: $259.95
	8 ohm version Item Price: $259.95
	16 ohm version Item Price: $259.95
WOOFER MODEL	10PR300
Specifications
Nominal Basket Diameter	10" / 250mm
Impedance	4,8 or 16 ohms
AES Power Rating	300 Watts
Program Power	600 Watts
Frequency Response	60Hz - 5.0kHz
Sensitivity (1W/1m)	98dB SPL
Voice Coil Diameter	2.5" / 65mm
Voice Coil Length	12.5 mm
Air Gap Height	8.0 mm
X Damage	14 mm
BL Factor	14.1 N/A
Mounting Information
Overall Diameter	10.28" / 261mm
Bolt Circle Diameter	9.69" / 246mm
Baffle Cutout Diameter-Front Mount	9.06" / 230mm
No. Of Mounting Holes	8
Overall Depth	4.54" / 115.3mm
Flange & gasket Thickness	0.48" / 12.2mm
Net Weight	4.62 lb. / 2.1 kg.
Shipping Weight	6.16 lb. / 2.8 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Former Material	Glass Fiber
Voice Coil	Aluminum
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	60 Hz
Impedance (Re)	5.4 ohms
Coil Inductance (Le)	0.60 mH
Mechanical Q (Qms)	5.8
Electrical Factor (Qes)	.29
Total Q (Qts)	.27
Comp. Equivelant Vol. (Vas)	1.3 ft3 / 36.7 Liters
Voice Coil Overhang (Xmax)	4.92 mm
Surface Area of Cone (Sd)m2	0.0322m2
Reference Efficiency	2.67%
Diaphragm Mass (Mms)	28.2 Grams
Mechanical Compliance (Cms)	.25 mm/N
Mechanical Resistance (Rms)	1.83 Kg/s

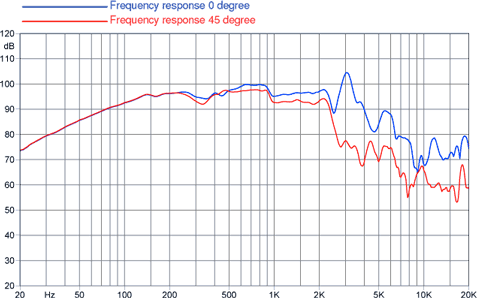

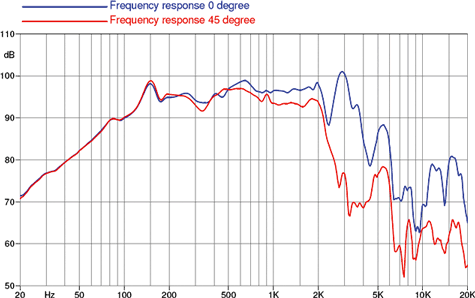

Frequency Response

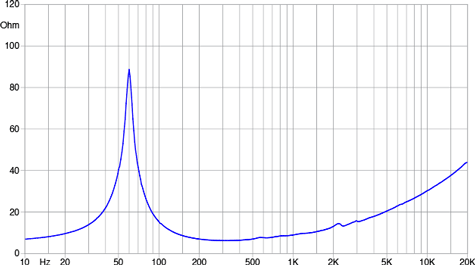

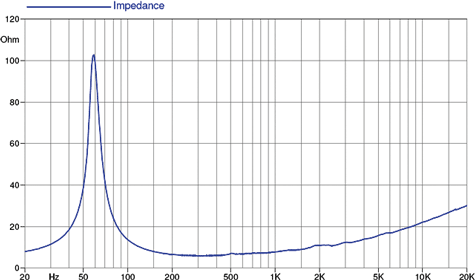

Free Air Impedance Curve

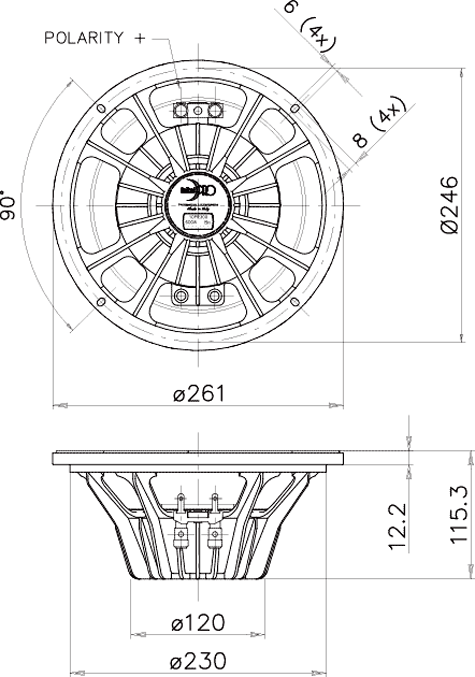

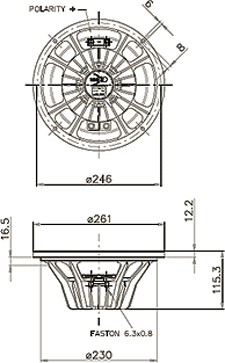

Mounting Dimensions
