• FAITAL PRO 10PR410 10" MIDRANGE SPEAKER CAN HANDLE 300 WATTS AES & 600 WATTS PROGRAM POWER
• HIGH EFFICIENCY OF 99DB SPL, 4.5MM XMAX FOR CLEAN TIGHT SOUND & A FREQUENCY RANGE FROM 100HZ TO 2.0KHZ
• ALUMINUM DEMODULATION RING TO FLATTEN THE ENTIRE FREQUENCY RANGE TO DELIVER A MORE FLAT MIDRANGE WITH LOW DISTORTION
• FERRITE MAGNET WEIGHS 16.6 LBS.
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• WORKS GREAT FOR 3-WAY SPEAKER SYSTEMS THAT REQUIRE CLEAN LOUD MIDRANGE
• BRINGS OUT THE CLARITY AND DETAIL IN THE VOCALS & INSTRUMENTS

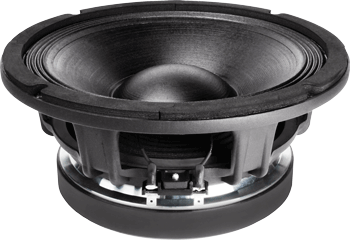

THE FAITAL PRO 10PR410 10 INCH MIDRANGE SPEAKER IS FOR SYSTEMS REQUIRING CLEAN LOUD MIDRANGE WITH HIGH EFFICIENCY OF 99DB SPL!
	8 ohms Item Price: $268.95
WOOFER MODEL	10PR410
Specifications
Nominal Basket Diameter	10" / 250mm
Impedance	8 ohms
AES Power Rating	300 Watts
Program Power	600 Watts
Frequency Response	100Hz - 2.0kHz
Sensitivity (1W/1m)	99dB SPL
Voice Coil Diameter	2.56" / 65mm
Voice Coil Length	12.5 mm
Air Gap Height	10.5 mm
X Damage	12.2 mm
BL Factor	18.5 N/A
Mounting Information
Overall Diameter	10.28" / 261mm
Bolt Circle Diameter	9.69" / 246mm
Baffle Cutout Diameter-Front Mount	9.06" / 230mm
No. Of Mounting Holes	8
Overall Depth	5.16" / 131mm
Flange & gasket Thickness	0.45" / 11.5mm
Net Weight	16.6 lb. / 7.5 kg.
Shipping Weight	17.9 lb. / 8.1 kg.
Materials
Basket	Cast Aluminum
Cone	Treated Polycotton
Surround	Treated Cloth
Surround Shape	Accordian (4 Waves)
Former Material	Glass Fiber
Voice Coil	Aluminum
Demodulation Ring	Aluminum
Magnet	Ferrite
Thiele-Small Parameters
Resonant Frequency (fs)	60 Hz
Impedance (Re)	5.4 ohms
Coil Inductance (Le)	0.60 mH
Mechanical Q (Qms)	8.7
Electrical Factor (Qes)	.22
Total Q (Qts)	.21
Comp. Equivelant Vol. (Vas)	.97 ft3 / 27.6 Liters
Voice Coil Overhang (Xmax)	4.5 mm
Surface Area of Cone (Sd)m2	0.03178m2
Reference Efficiency	2.67%
Diaphragm Mass (Mms)	36.5 Grams
Mechanical Compliance (Cms)	.19 mm/N
Mechanical Resistance (Rms)	1.59 Kg/s

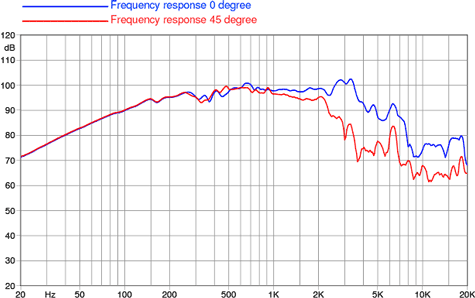

Frequency Response

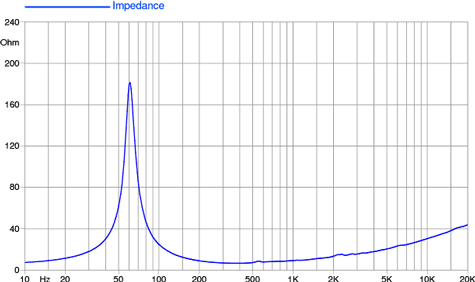

Free Air Impedance Curve

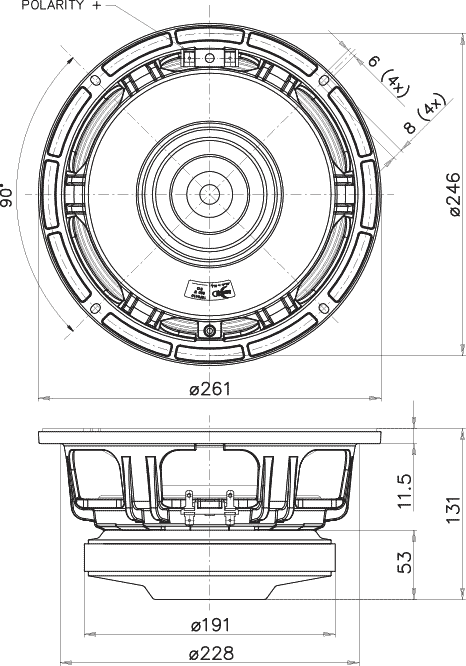

Mounting Dimensions
