• NEW FAITAL PRO 10RS430 10" SPEAKER CAN HANDLE 400 WATTS AES & 800 WATTS PROGRAM POWER
• FEATURES A RUBBER SURROUND  & A HIGH 13.57MM XMAX FOR CLEAN TIGHT SOUND
• LOW RESONANT FREQUENCY OF 32HZ & A WIDE FREQUENCY RANGE FROM 30HZ TO 2.5KHZ
• POWERFUL TIGHT DEEP BASS WITH GOOD MIDS THAT ARE NOT BRIGHT
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• WORKS GREAT FOR BASS GUITAR CABINETS & PA SPEAKER SYSTEMS TO HANDLE THE LOW FREQUENCIES
• AVAILABLE IN 8 OHMS

THE FAITAL PRO 10RS430 DELIVERS A DEEP TIGHT BASS WITH A 13.57MM XMAX & 400 WATTS AES POWER HANDLING!
	8 Ohms Item Price: $278.95
WOOFER MODEL	10RS430
Specifications
Nominal Basket Diameter	10" / 250mm
Impedance	8 ohms
AES Power Rating	400 Watts
Program Power	800 Watts
Frequency Response	30Hz - 2.5kHz
Sensitivity (1W/1m)	91dB SPL
Voice Coil Diameter	2.56" / 65mm
Voice Coil Length	29.8 mm
Air Gap Height	8.0 mm
X Damage	21.5 mm
BL Factor	18 N/A
Mounting Information
Overall Diameter	10.28" / 261mm
Bolt Circle Diameter	9.69" / 246mm
Baffle Cutout Diameter-Front Mount	9.06" / 230mm
No. Of Mounting Holes	8
Overall Depth	5.35" / 136mm
Flange & gasket Thickness	0.67" / 17mm
Net Weight	15.0 lb. / 6.8 kg.
Shipping Weight	16.1 lb. / 7.3 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Rubber
Surround Shape	Half Roll
Former Material	Glass Fiber
Voice Coil	Aluminum
Demodulation Ring	Aluminum
Magnet	Ferrite
Thiele-Small Parameters
Resonant Frequency (fs)	32 Hz
Impedance (Re)	6.8 ohms
Coil Inductance (Le)	0.78 mH
Mechanical Q (Qms)	10
Electrical Factor (Qes)	.29
Total Q (Qts)	.28
Comp. Equivelant Vol. (Vas)	2.09 ft3 / 59.2 Liters
Voice Coil Overhang (Xmax)	13.57 mm
Surface Area of Cone (Sd)m2	0.0344m2
Reference Efficiency	.65%
Diaphragm Mass (Mms)	69 Grams
Mechanical Compliance (Cms)	.36 mm/N
Mechanical Resistance (Rms)	1.4 Kg/s

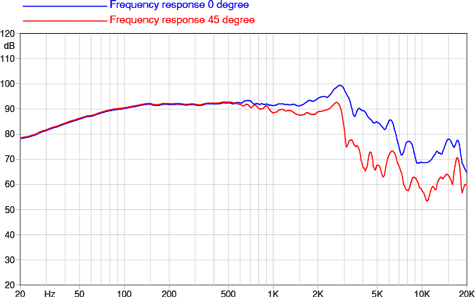

Frequency Response

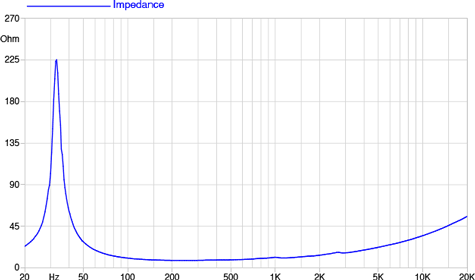

Free Air Impedance Curve

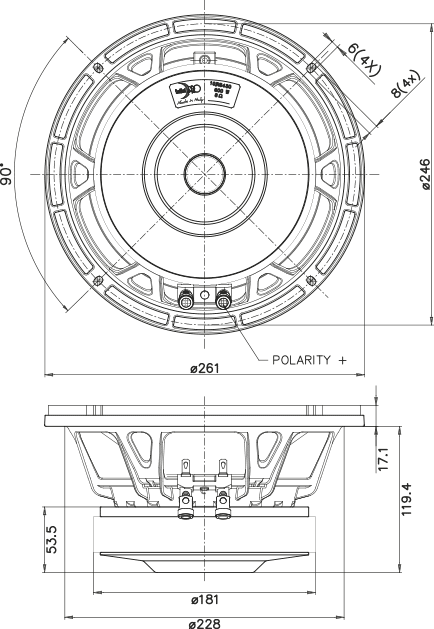

Mounting Dimensions
