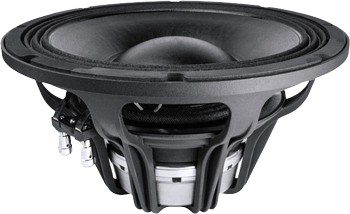

FAITAL PRO 12XL1200 - 12" VERY HIGH POWER SUBWOOFER SPEAKER
|
|
|
FAITAL PRO 12XL1200 - 12" VERY HIGH POWER SUBWOOFER SPEAKER |
|
THE 12XL1200 HANDLES A MASSIVE 2,800 WATTS PROGRAM W/ A HIGH 12.45MM XMAX! |
|
|
|
Item Price: $614.95 |
| WOOFER MODEL | 12XL1200 |
|
Specifications |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8 ohms |
|
AES
Power Rating |
1,400 Watts |
| Program Power | 2,800 Watts |
| Frequency Response | 50Hz - 2.5kHz |
|
Sensitivity
(1W/1m) |
93dB SPL |
| Voice Coil Diameter | 4" / 100mm |
| Voice Coil Length | 28.9 mm |
| Air Gap Height | 12 mm |
| X Damage | 24 mm |
| BL Factor | 23.6 N/A |
|
Mounting Information |
|
| Overall Diameter | 12.44" / 316mm |
| Bolt Circle Diameter | 11.75" / 298.5mm |
| Baffle Cutout Diameter-Front Mount | 11.1" / 282mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 6.64" / 168.75mm |
| Flange & gasket Thickness | 0.49" / 12.5mm |
| Net Weight | 15 lb. / 6.8 kg. |
| Shipping Weight | 16.5 lb. / 7.5 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Treated Cloth |
| Surround Shape | Triple Roll |
| Former Material | Glass Fiber |
| Voice Coil | Copper |
| Demodulation Ring | Aluminum |
| Magnet | Neodymium |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 50Hz |
| Impedance (Re) | 5 ohms |
| Coil Inductance (Le) | 1.3 mH |
| Mechanical Q (Qms) | 14.8 |
| Electrical Factor (Qes) | .43 |
| Total Q (Qts) | .42 |
| Comp. Equivelant Vol. (Vas) | .88 ft3 / 25 Liters |
| Voice Coil Overhang (Xmax) | 12.45 mm |
| Surface Area of Cone (Sd)m2 | 0.0518m2 |
| Reference Efficiency | 0.93% |
| Diaphragm Mass (Mms) | 152 Grams |
| Mechanical Compliance (Cms) | .07 mm/N |
| Mechanical Resistance (Rms) | 3.2 Kg/s |
| EBP | 116 Hz |
|

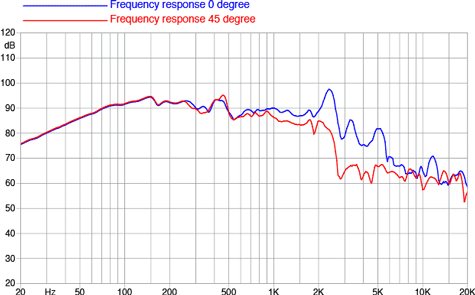

Frequency Response |
|
|
|
|

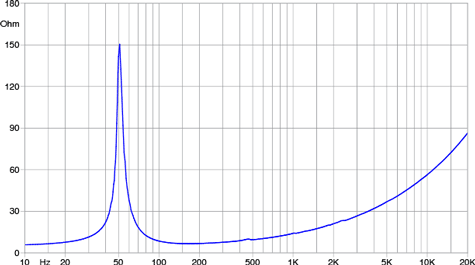

| Free Air Impedance Curve | |
 |
|
|

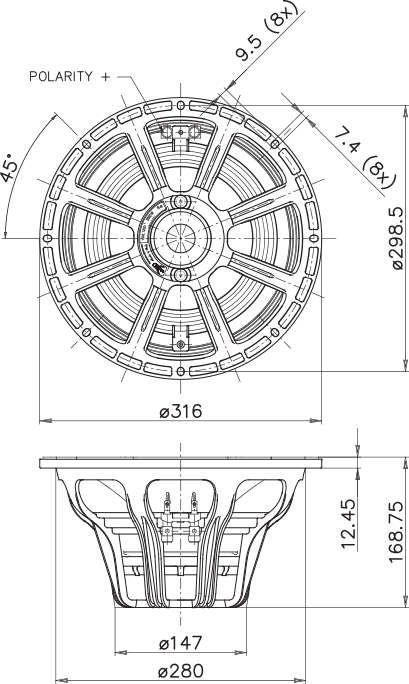

Mounting Dimensions |
|
|
|
|
