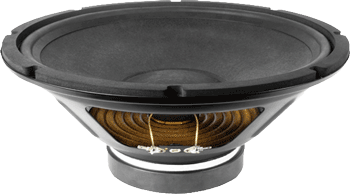

FAITAL PRO 12FE330 - 12" BASS / MID-BASS WOOFER
|
|
|
FAITAL PRO 12FE330 - 12" BASS / MID-BASS WOOFER |
|
FAITAL PRO 12FE330 SPEAKER HAS LOUD CLEAN MIDS W/ TIGHT BASS & HANDLES 250 WATTS AES W/ A 5.07MM XMAX! |
|
|
|
Item Price: $154.95 |
| WOOFER MODEL | 12FE330 |
|
Specifications |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8 ohms |
|
AES
Power Rating |
250 Watts |
| Program Power | 500 Watts |
| Frequency Response | 30Hz - 3kHz |
|
Sensitivity
(1W/1m) |
94dB SPL |
| Voice Coil Diameter | 2.05" / 52mm |
| Winding Depth | 19.3 mm |
| Magnetic Gap Depth | 8 mm |
| X Damage | 13.6 mm |
| BL Factor | 13 N/A |
|
Mounting Information |
|
| Overall Diameter | 12.24" / 311mm |
| Bolt Circle Diameter | 11.57" / 294mm |
| Baffle Cutout Diameter-Front Mount | 11.18" / 284mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 5.24" / 133mm |
| Flange & Gasket Thickness | 0.31" / 8mm |
| Net Weight | 7.9 lb. / 3.6 kg. |
| Shipping Weight | 9.5 lb. / 4.3 kg. |
|
Materials |
|
| Basket | Steel |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Treated Cloth |
| Surround Shape | Triple Roll |
| Former Material | Glass Fiber |
| Voice Coil | Aluminum |
| Magnet | Ferrite |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 33 Hz |
| Impedance (Re) | 5.3 ohms |
| Coil Inductance (Le) | 1.1 mH |
| Mechanical Q (Qms) | 7.0 |
| Electrical Factor (Qes) | .48 |
| Total Q (Qts) | .45 |
| Comp. Equivelant Vol. (Vas) | 5.18 ft3 / 146.7 Liters |
| Voice Coil Overhang (Xmax) | 8.32 mm |
| Surface Area of Cone (Sd)m2 | 0.0579m2 |
| Reference Efficiency | 1.55% |
| Diaphragm Mass (Mms) | 74.2 Grams |
| Mechanical Compliance (Cms) | .31 mm/N |
| Mechanical Resistance (Rms) | 2.2 Kg/s |
|

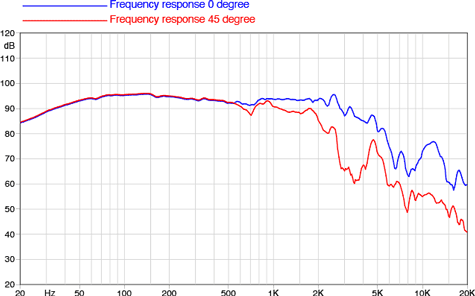

Frequency Response |
|
|
|
|

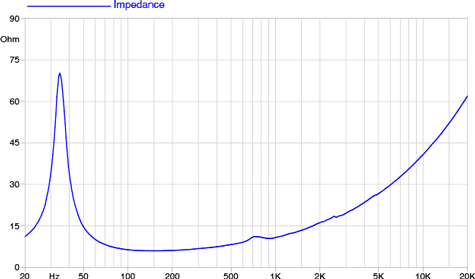

| Free Air Impedance Curve | |
 |
|
|

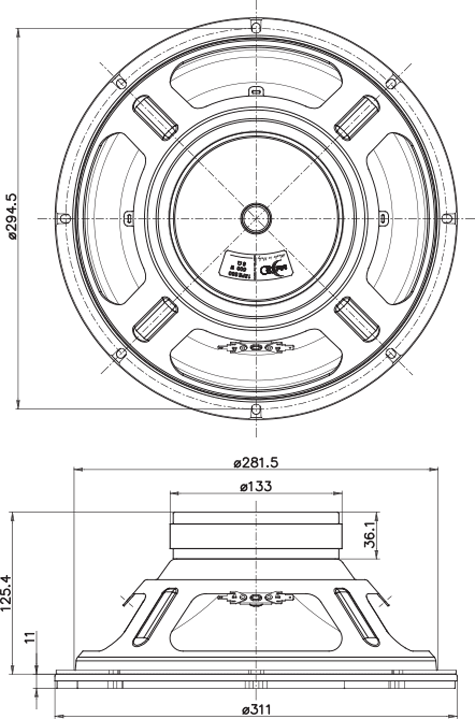

Mounting Dimensions |
|
|
|
|
