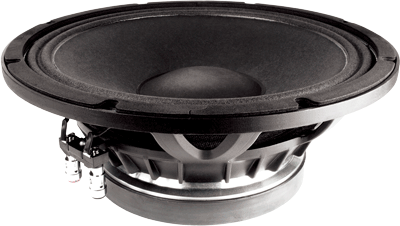

FAITAL PRO 12FH510 - 12" HIGH POWER WOOFER
|
|
|
FAITAL PRO 12FH510 - 12" HIGH POWER WOOFER |
|
SMOOTH SOUNDING 12" THAT HANDLES 500 WATTS AES WITH A HIGH 7.25MM XMAX! |
|
|
|
Item Price: $271.95 |
| WOOFER MODEL | 12FH510 |
|
Specifications |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8 ohms |
|
AES
Power Rating |
500 Watts |
| Program Power | 1,000 Watts |
| Frequency Response | 45Hz - 3.15kHz |
|
Sensitivity
(1W/1m) |
97dB SPL |
| Voice Coil Diameter | 3" / 77mm |
| Voice Coil Length | 18 mm |
| Air Gap Height | 10.5 mm |
| X Damage | 21.5 mm |
| BL Factor | 18.1 N/A |
|
Mounting Information |
|
| Overall Diameter | 12.44" / 316mm |
| Bolt Circle Diameter | 11.75" / 298.5mm |
| Baffle Cutout Diameter-Front Mount | 11.1" / 282mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 5.51" / 140mm |
| Flange & gasket Thickness | 0.47" / 12mm |
| Net Weight | 17.28 lb. / 7.84 kg. |
| Shipping Weight | 19.18 lb. / 8.7 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Treated Cloth |
| Former Material | Glass Fiber |
| Voice Coil | Aluminum |
| Magnet | Ferrite |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 45 Hz |
| Impedance (Re) | 5.1 ohms |
| Coil Inductance (Le) | 0.8 mH |
| Mechanical Q (Qms) | 10.9 |
| Electrical Factor (Qes) | .27 |
| Total Q (Qts) | .26 |
| Comp. Equivelant Vol. (Vas) | 2.46 ft3 / 69.56 Liters |
| Voice Coil Overhang (Xmax) | 7.25 mm |
| Surface Area of Cone (Sd)m2 | 0.0489m2 |
| Reference Efficiency | 2.3% |
| Diaphragm Mass (Mms) | 54.9 Grams |
| Mechanical Compliance (Cms) | .2 mm/N |
| Mechanical Resistance (Rms) | 1.58 Kg/s |
|

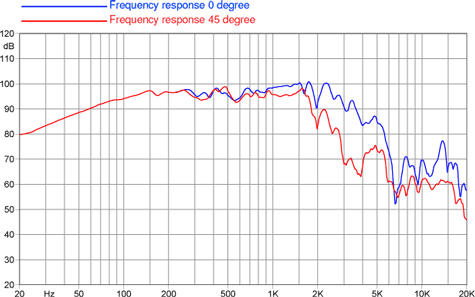

Frequency Response |
|
|
|
|

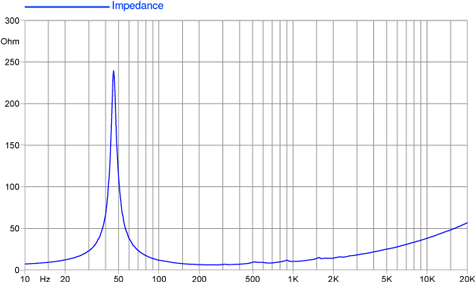

| Free Air Impedance Curve | |
 |
|
|

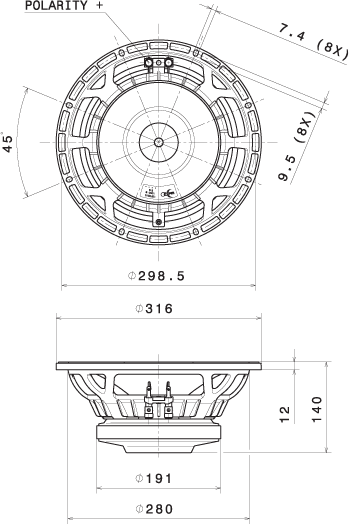

Mounting Dimensions |
|
|
|
|
