FAITAL PRO 12FH520 - 12" HIGH POWER WOOFER
|
|
|
FAITAL PRO 12FH520 - 12" HIGH POWER WOOFER |
|
THE FAITAL PRO 12FH530 IA S NICE UPGRADE IN BASS GUITAR CABINETS & PA SYSTEMS THAT REQUIRE CLEAN FLAT MIDS & TIGHT BASS! |
|
|
|
4 Ohm Version
Item Price: $375.95 |
|
8 Ohm Version
Item Price: $375.95 |
|
|
16 Ohm Version
Item Price: $375.95 |
|
| WOOFER MODEL | 12FH520 |
|
Specifications |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
4, 8 or 16 ohms |
|
AES
Power Rating |
600 Watts |
| Program Power | 1,200 Watts |
| Frequency Response | 50Hz - 4.0kHz |
|
Sensitivity
(1W/1m) |
98dB SPL |
| Voice Coil Diameter | 3" / 77mm |
| Voice Coil Length | 18.5 mm |
| Air Gap Height | 12 mm |
| X Damage | 19.5 mm |
| BL Factor | 17.3 N/A |
|
Mounting Information |
|
| Overall Diameter | 12.44" / 316mm |
| Bolt Circle Diameter | 11.75" / 298.5mm |
| Baffle Cutout Diameter-Front Mount | 11.18" / 284mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 6.13" / 155.7mm |
| Flange & gasket Thickness | 0.49" / 12.5mm |
| Net Weight | 9.5 lb. / 4.3 kg. |
| Shipping Weight | 10.8 lb. / 4.9 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Treated Cloth |
| Former Material | Glass Fiber |
| Voice Coil | Aluminum |
| Magnet | Neodymium |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 50 Hz |
| Impedance (Re) | 5.1 ohms |
| Coil Inductance (Le) | 0.74 mH |
| Mechanical Q (Qms) | 11.1 |
| Electrical Factor (Qes) | .3 |
| Total Q (Qts) | .29 |
| Comp. Equivelant Vol. (Vas) | 2.27 ft3 / 64.2 Liters |
| Voice Coil Overhang (Xmax) | 7.25 mm |
| Surface Area of Cone (Sd)m2 | 0.05m2 |
| Reference Efficiency | 2.6% |
| Diaphragm Mass (Mms) | 56 Grams |
| Mechanical Compliance (Cms) | .18 mm/N |
| Mechanical Resistance (Rms) | 1.58Kg/s |
|

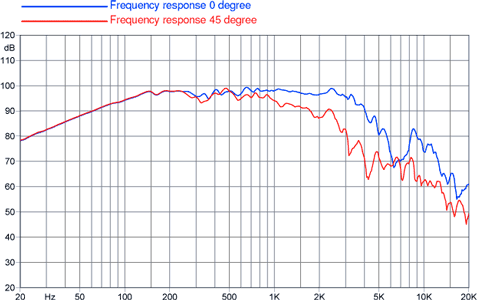

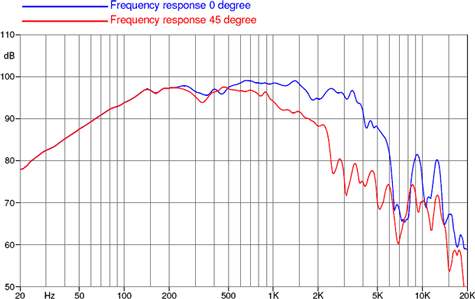

Frequency Response |
|
|
|
|
|

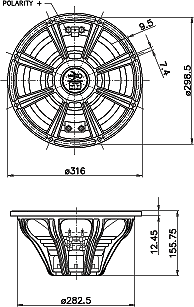

Mounting Dimensions |
|
|
|
|
