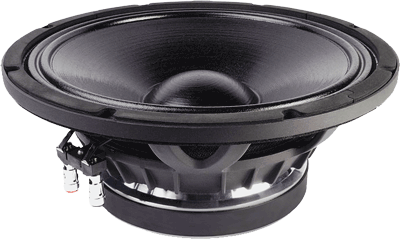

• THE FAITAL PRO 12FH530 12" HIGH POWER WOOFER CAN HANDLE 500 WATTS AES & 1,000 WATTS PROGRAM POWER
• FLAT SMOOTH DETAILED MIDRANGE AND TIGHT STRONG BASS
• FEATURES A 7.5MM XMAX FOR CLEAN STRONG SOUND & A HIGH X DAMAGE (PEAK TO PEAK) OF 21.5MM
• ALUMINUM DEMODULATION RING FOR EXTENDED FLAT MIDRANGE & STRONG TIGHT LOWS
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• WORKS GREAT FOR 2 OR 3-WAY PA SPEAKER SYSTEMS & BASS GUITAR CABINETS

NICE UPGRADE IN PA SPEAKER SYSTEMS THAT REQUIRE CLEAN FLAT MIDS & TIGHT BASS!
	Item Price: $293.95
WOOFER MODEL	12FH530
Specifications
Nominal Basket Diameter	12" / 300mm
Impedance	8 ohms
AES Power Rating	500 Watts
Program Power	1,000 Watts
Frequency Response	45Hz - 3.15kHz
Sensitivity (1W/1m)	98dB SPL
Voice Coil Diameter	3" / 77mm
Voice Coil Length	18.5 mm
Air Gap Height	10.5 mm
X Damage	21.5 mm
BL Factor	18.9 N/A
Mounting Information
Overall Diameter	12.44" / 316mm
Bolt Circle Diameter	11.75" / 298.5mm
Baffle Cutout Diameter-Front Mount	11.1" / 282mm
No. Of Mounting Holes	8
Overall Depth	5.51" / 140mm
Flange & gasket Thickness	0.47" / 12mm
Net Weight	17.28 lb. / 7.84 kg.
Shipping Weight	19.18 lb. / 8.7 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Former Material	Glass Fiber
Voice Coil	Aluminum
Magnet	Ferrite
Thiele-Small Parameters
Resonant Frequency (fs)	45 Hz
Impedance (Re)	5.1 ohms
Coil Inductance (Le)	0.8 mH
Mechanical Q (Qms)	6.4
Electrical Factor (Qes)	.27
Total Q (Qts)	.26
Comp. Equivelant Vol. (Vas)	2.22 ft3 / 63 Liters
Voice Coil Overhang (Xmax)	7.5 mm
Surface Area of Cone (Sd)m2	0.0489m2
Reference Efficiency	2.1%
Diaphragm Mass (Mms)	55.3 Grams
Mechanical Compliance (Cms)	.19 mm/N
Mechanical Resistance (Rms)	2.9 Kg/s

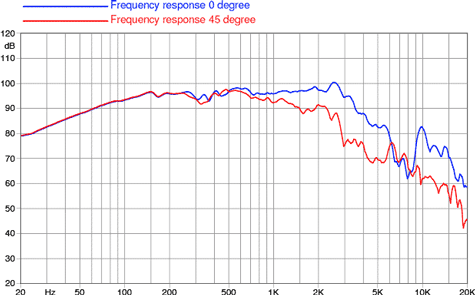

Frequency Response

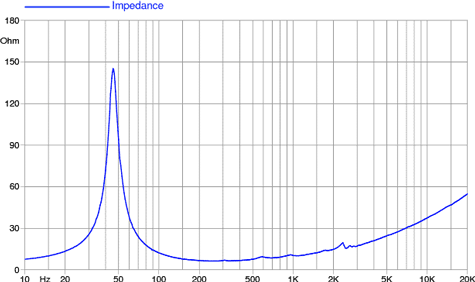

Impedance Curve

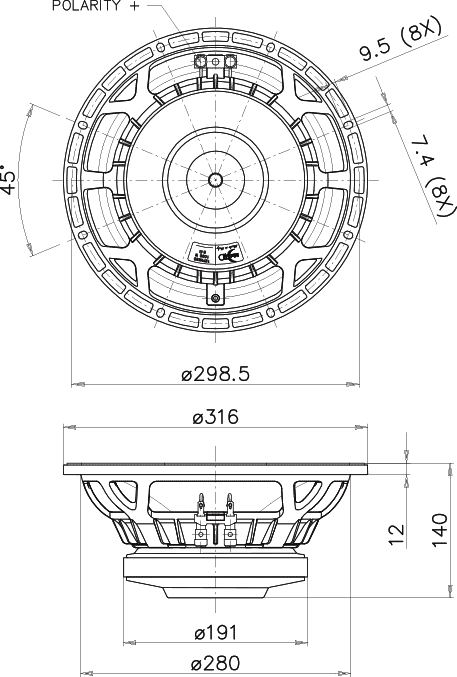

Mounting Dimensions
