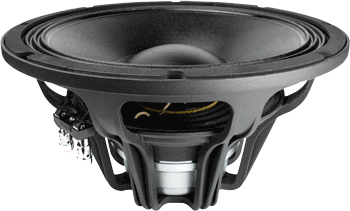

• NEW FAITAL PRO 12FX600 12" HIGH POWER WOOFER CAN HANDLE 700 WATTS AES & 1,400 WATTS PROGRAM POWER
• 9.9MM XMAX FOR CLEAN STRONG SOUND & A HIGH X DAMAGE OF 24.1MM
• WIDE FREQUENCY RANGE FROM 50HZ TO 3.15KHZ
• ALUMINUM DEMODULATION RING FOR EXTENDED FLAT SMOOTH MIDRANGE & STRONG TIGHT LOWS
• WEIGHS ONLY 12.1 LBS. THANKS TO ITS' LIGHTWEIGHT NEODYMIUM MAGNET
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• WORKS GREAT FOR 2 OR 3-WAY PA SPEAKER SYSTEMS & BASS GUITAR CABINETS
• AVAILABLE 8 OHMS ONLY

THE FAITAL PRO 12FX600 IS A POWERFUL SPEAKER THAT HAS STRONG TIGHT BASS & LOW MIDS THAT ARE SMOOTH SOUNDING!
	Item Price: $430.95
WOOFER MODEL	12FX600
Specifications
Nominal Basket Diameter	12" / 300mm
Impedance	8 ohms
AES Power Rating	700 Watts
Program Power	1,400 Watts
Frequency Response	50Hz - 3.15kHz
Sensitivity (1W/1m)	97dB SPL
Voice Coil Diameter	3" / 77mm
Voice Coil Length	23.8 mm
Air Gap Height	12 mm
X Damage	24.1 mm
BL Factor	25.3 N/A
Mounting Information
Overall Diameter	12.44" / 316mm
Bolt Circle Diameter	11.75" / 298.5mm
Baffle Cutout Diameter-Front Mount	11.1" / 284mm
No. Of Mounting Holes	8
Overall Depth	6.64" / 168.75mm
Flange & gasket Thickness	0.49" / 12.5mm
Net Weight	12.1 lb. / 5.5 kg.
Shipping Weight	13.7 lb. / 6.2 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Surround Shape	Triple Roll
Former Material	Glass Fiber
Voice Coil	Copper
Demodulation Ring	Aluminum
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	48 Hz
Impedance (Re)	5.3 ohms
Coil Inductance (Le)	1.34 mH
Mechanical Q (Qms)	6.88
Electrical Factor (Qes)	.25
Total Q (Qts)	.24
Comp. Equivelant Vol. (Vas)	1.38 ft3 / 39 Liters
Voice Coil Overhang (Xmax)	9.9 mm
Surface Area of Cone (Sd)m2	0.05m2
Reference Efficiency	1.68%
Diaphragm Mass (Mms)	100 Grams
Mechanical Compliance (Cms)	.1 mm/N
Mechanical Resistance (Rms)	4.57Kg/s

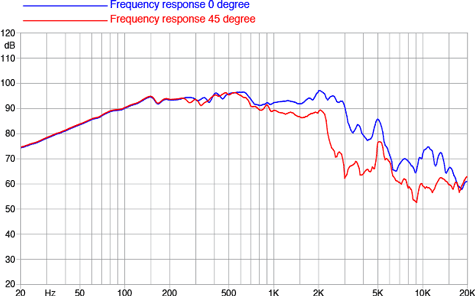

Frequency Response

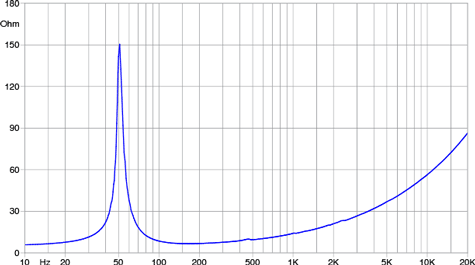

Impedance Curve

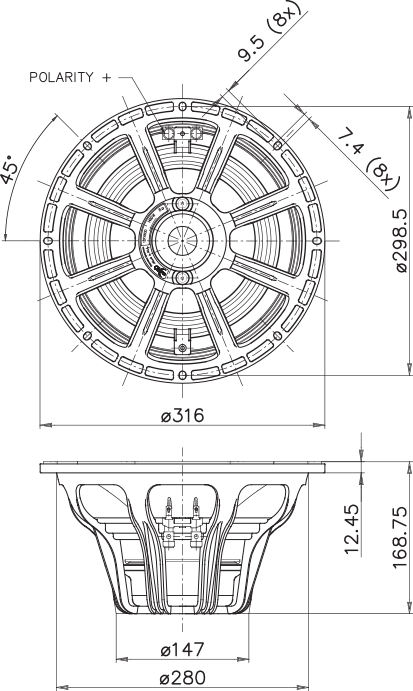

Mounting Dimensions
