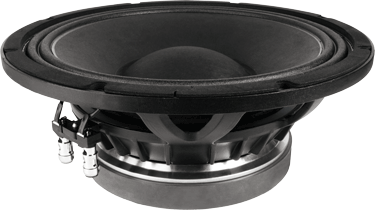

• THE FAITAL PRO 12HP1010 12" HIGH POWER LOW FREQUENCY SPEAKER CAN HANDLE 700 WATTS AES & 1,400 WATTS PROGRAM POWER
• HIGH 9.25MM XMAX FOR A VERY CLEAN STRONG SOUND & WIDE FREQUENCY RANGE FROM 45HZ TO 3.15KHZ
• FEATURES AN INSIDE/OUTSIDE WOUND COPPER VOICE COIL
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• DESIGNED FOR 2 OR 3-WAY SPEAKER SYSTEMS OR IN HIGH POWER PORTED SPEAKER CABINETS
• AVAILABLE IN 8 OHMS ONLY

THE 12HP1010 HANDLES 1,400 WATTS PROGRAM W/ A HIGH 9.25MM XMAX FOR A STRONG SMOOTH TIGHT BASS W/ GOOD MIDS!
	Item Price: $320.95
WOOFER MODEL	12HP1010
Specifications
Nominal Basket Diameter	12" / 300mm
Impedance	8 ohms
AES Power Rating	700 Watts
Program Power	1,400 Watts
Frequency Response	45Hz - 3.15kHz
Sensitivity (1W/1m)	96dB SPL
Voice Coil Diameter	4" / 100mm
Voice Coil Length	22 mm
Air Gap Height	10.5 mm
X Damage	21.9 mm
BL Factor	19.8 N/A
Mounting Information
Overall Diameter	12.44" / 316mm
Bolt Circle Diameter	11.75" / 298.5mm
Baffle Cutout Diameter-Front Mount	11.1" / 282mm
No. Of Mounting Holes	8
Overall Depth	5.59" / 142mm
Flange & gasket Thickness	0.47" / 12mm
Net Weight	20.33 lb. / 9.22 kg.
Shipping Weight	20.94 lb. / 9.5 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Suspension	M-Roll
Former Material	Aluminum
Voice Coil	Copper
Magnet	Ferrite
Thiele-Small Parameters
Resonant Frequency (fs)	45 Hz
Impedance (Re)	5.5 ohms
Coil Inductance (Le)	1.33 mH
Mechanical Q (Qms)	9.4
Electrical Factor (Qes)	.35
Total Q (Qts)	.33
Comp. Equivelant Vol. (Vas)	1.77 ft3 / 50 Liters
Voice Coil Overhang (Xmax)	9.25 mm
Surface Area of Cone (Sd)m2	0.0496m2
Reference Efficiency	1.28%
Diaphragm Mass (Mms)	87.2 Grams
Mechanical Compliance (Cms)	.14 mm/N
Mechanical Resistance (Rms)	2.62 Kg/s
EBP	129

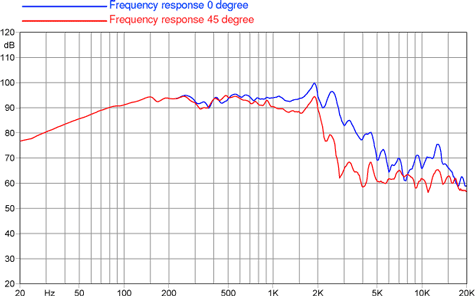

Frequency Response

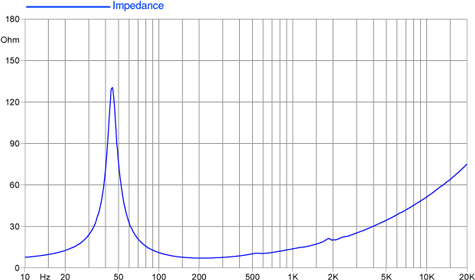

Free Air Impedance Curve

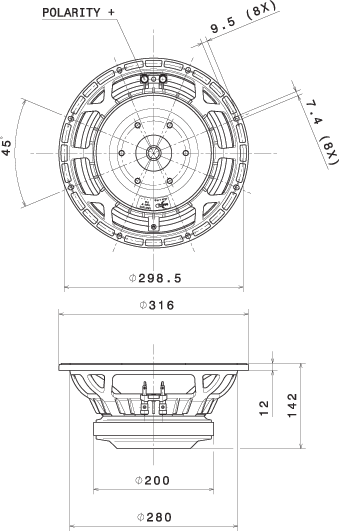

Mounting Dimensions
