FAITAL PRO 12HP1020 - 12" HIGH POWER LOW FREQUENCY SPEAKER

THE FAITAL PRO 12HP1020 HANDLES 1,400 WATTS PROGRAM W/ A HIGH 9.5MM XMAX & 24.3 BL FACTOR!

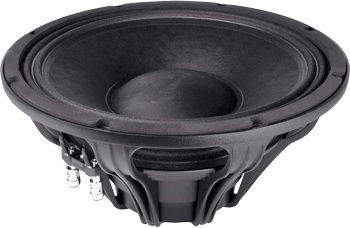

Faital Pro 12HP1020

Item Price: $439.95

WOOFER MODEL 12HP1020

Specifications

Nominal Basket Diameter 12" / 300mm
Impedance 8 ohms
AES Power Rating 700 Watts
Program Power 1,400 Watts
Frequency Response 55Hz - 3.15kHz
Sensitivity (1W/1m) 98dB SPL
Voice Coil Diameter 4" / 100mm
Voice Coil Length 23 mm
Air Gap Height 12 mm
X Damage 16 mm
BL Factor 24.3 N/A

Mounting Information

Overall Diameter 12.44" / 316mm
Bolt Circle Diameter 11.75" / 298.5mm
Baffle Cutout Diameter-Front Mount 11.12" / 282.5mm
No. Of Mounting Holes 8
Overall Depth 6.13" / 155.7mm
Flange & gasket Thickness 0.49" / 12.5mm
Net Weight 12.32 lb. / 5.6 kg.
Shipping Weight 13.64 lb. / 6.2 kg.

Materials

Basket Cast Aluminum
Cone Paper Pulp (Weather Proof)
Surround Treated Cloth
Former Material Glass Fiber
Voice Coil Aluminum
Magnet Neodymium

Thiele-Small Parameters

Resonant Frequency (fs) 55 Hz
Impedance (Re) 5.5 ohms
Coil Inductance (Le) 1.1 mH
Mechanical Q (Qms) 9.4
Electrical Factor (Qes) .28
Total Q (Qts) .27
Comp. Equivelant Vol. (Vas) 1.19 ft3 / 33.7 Liters
Voice Coil Overhang (Xmax) 9.0 mm
Surface Area of Cone (Sd)m2 0.0494m2
Reference Efficiency 1.97%
Diaphragm Mass (Mms) 86 Grams
Mechanical Compliance (Cms) .09 mm/N
Mechanical Resistance (Rms) 3.16 Kg/s

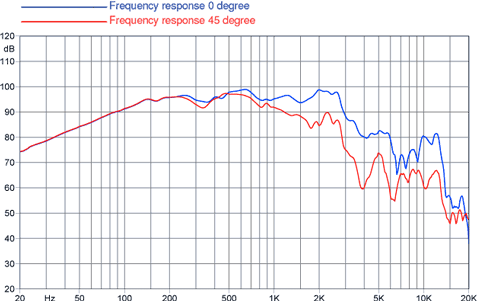

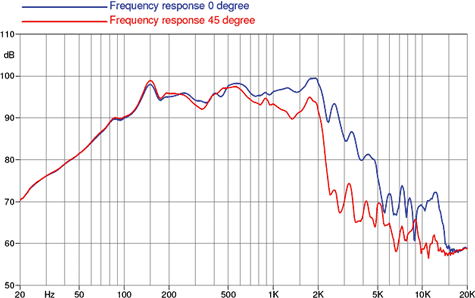

Frequency Response

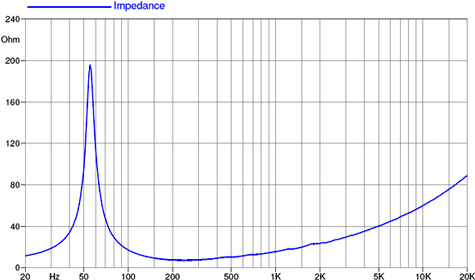

Free Air Impedance Curve

Mounting Dimensions
