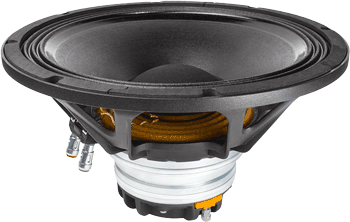

• NEW FAITAL PRO 12HX500 POWERFUL 12" COAXIAL SPEAKER CAN HANDLE 400 WATTS AES & 800 WATTS PROGRAM POWER
• FEATURES A LIGHTWEIGHT NEODYMIUM 1.4" EXIT HF DRIVER & POWERFUL 12" SPEAKER THAT WEIGHS ONLY 12.1LBS.
• BOTH LF & HF DRIVER SHARE 0NE NEODYMIUM MAGNET FOR PROPER TIME ALIGNMENT
• HAS A LARGE SMOOTH TIGHT SOUND WITH A VERY GOOD DETAILED SOUND
• HIGH 9.25MM XMAX FOR A CLEAN SOUND EVEN WHEN PUSHED HARD
• OVERALL FLAT FREQUENCY RESPONSE WITH LOW DISTORTION
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• WORKS GREAT FOR COMPACT 2-WAY SPEAKER SYSTEMS INCLUDING HOME HI-FI, PA SPEAKERS, ETC.

THE 12HX500 LIGHTWEIGHT NEODYMIUM 12" COAXIAL SPEAKER HAS A DETAILED SMOOTH OVERALL SOUND!
	Item Price: $787.95
COAXIAL MODEL	12HX500
Specifications
Low Frequency
Nominal Basket Diameter	12" / 320mm
Impedance	8 ohms
AES Power Rating	400 Watts
Program Power	800 Watts
Frequency Response	50Hz - 5.0kHz
Sensitivity (1W/1m)	95dB SPL
Voice Coil Diameter	3" / 77mm
Winding Depth	.85" / 21.5 mm
Magnetic Gap Depth	.35" / 9.0 mm
X Damage	18.5 mm
Flux Density	1.2 T
BL Factor	16.2 N/A
High Frequency
Throat Diameter	1.4" / 35.6mm
Impedance	8 ohms
AES Power Rating	90 Watts
Program Power	180 Watts
Frequency Response	500Hz - 20kHz
Sensitivity (1W/1m)	105dB SPL
Voice Coil Diameter	2.9" / 74mm
Winding Depth	.14" / 3.5 mm
Magnetic Gap Depth	.15" / 3.7 mm
Flux Density	2 T
Minimum Crossover Frequency	900Hz
Dispersion Angle	100°
Mounting Information
Overall Diameter	12.44" / 316mm
Bolt Circle Diameter	11.75" / 298.5mm
Baffle Cutout Diameter-Front Mount	11.02" / 280mm
No. Of Mounting Holes	8
Overall Depth	6.89" / 175mm
Flange & Gasket Thickness	0.47" / 12mm
Net Weight	12.1lb. / 5.5 kg.
Shipping Weight	13.7 lb. / 6.2 kg.
Materials
Low Frequency
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Surround Shape	Triple Roll
Former Material	Glass Fiber
Voice Coil	Aluminum
Demodulation	Aluminum Ring
Magnet	Neodymium
High Frequency
Voice Coil	Aluminum
Former Material	Kapton
Diaphragm Material	Titanium
Diaphragm Shape	Dome
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	54 Hz
Impedance (Re)	5.6 ohms
Coil Inductance (Le)	0.57 mH
Mechanical Q (Qms)	6.94
Electrical Factor (Qes)	.42
Total Q (Qts)	.39
Comp. Equivelant Vol. (Vas)	2.2 ft3 / 62.3 Liters
Voice Coil Overhang (Xmax)	9.25 mm
Surface Area of Cone (Sd)m2	0.0540m2
Reference Efficiency	2.32%
Diaphragm Mass (Mms)	56.7 Grams
Mechanical Compliance (Cms)	.15 mm/N
Mechanical Resistance (Rms)	2.8 Kg/s
EBP	129
Frequency Response
Free Air Impedance Curve
Horizontal Beamwidth
Mounting Dimensions
