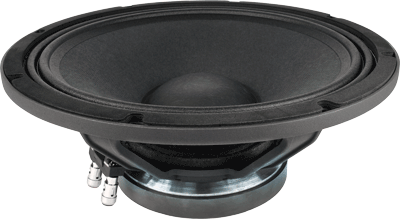

FAITAL PRO 12PR310 - 12" SPEAKER

LOUD FLAT MIDRANGE THAT WORKS WELL FOR VOCALS & TIGHT BASS FROM THIS 300 WATT AES 12" SPEAKER!

Faital Pro 12PR310

4 Ohm Version

Item Price: $231.95

8 Ohm Version

Item Price: $231.95

16 Ohm Version

Item Price: $231.95

WOOFER MODEL 12PR310

Specifications

Nominal Basket Diameter 12" / 300mm
Impedance 4, 8, 16 ohms
AES Power Rating 300 Watts
Program Power 600 Watts
Frequency Response 50Hz - 4.0kHz
Sensitivity (1W/1m) 99dB SPL
Voice Coil Diameter 2.5" / 65mm
Voice Coil Length 12.5 mm
Air Gap Height 8 mm
X Damage 15.2 mm
BL Factor 14.4 N/A

Mounting Information

Overall Diameter 12.4" / 315.2mm
Bolt Circle Diameter 11.75" / 298.5mm
Baffle Cutout Diameter-Front Mount 11.1" / 282mm
No. Of Mounting Holes 8
Overall Depth 5.31" / 135mm
Flange & gasket Thickness 0.47" / 12mm
Net Weight 9.37 lb. / 4.3 kg.
Shipping Weight 11.02 lb. / 5.0 kg.

Materials

Basket Cast Aluminum
Cone Paper Pulp (Weather Proof)
Surround Treated Cloth
Former Material Glass Fiber
Voice Coil Aluminum
Magnet Ferrite

Thiele-Small Parameters

Resonant Frequency (fs) 54 Hz
Impedance (Re) 5.4 ohms
Coil Inductance (Le) 0.61 mH
Mechanical Q (Qms) 11.6
Electrical Factor (Qes) .41
Total Q (Qts) .4
Comp. Equivelant Vol. (Vas) 2.22 ft3 / 62.83 Liters
Voice Coil Overhang (Xmax) 4.92 mm
Surface Area of Cone (Sd)m2 0.0489m2
Reference Efficiency 2.32%
Diaphragm Mass (Mms) 46.9Grams
Mechanical Compliance (Cms) .18 mm/N
Mechanical Resistance (Rms) 1.37 Kg/s

Frequency Response

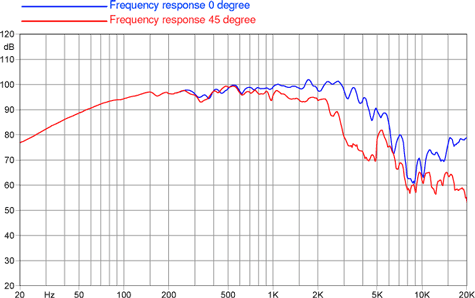

Faital Pro 12PR310 Frequency

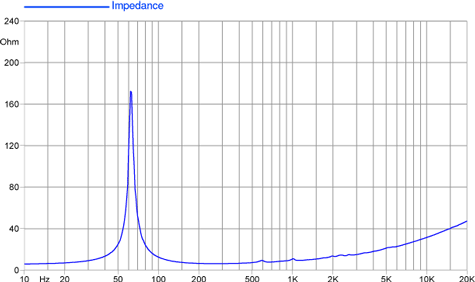

Free Air Impedance Curve

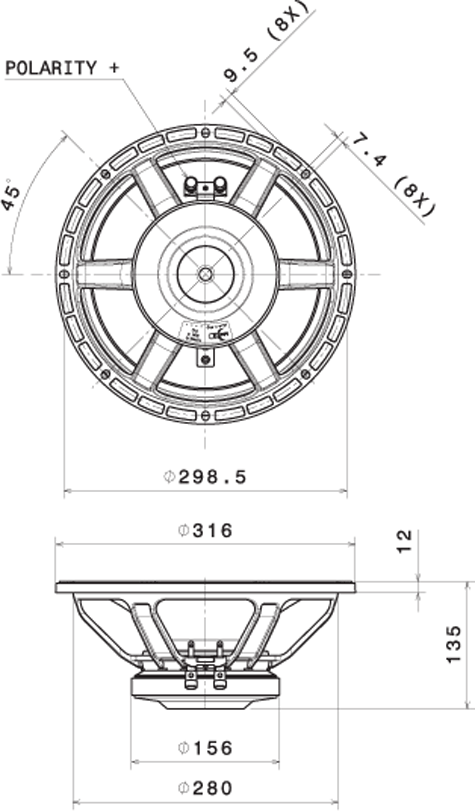

Mounting Dimensions
