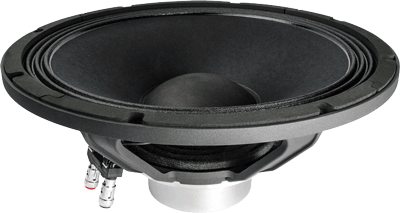

• THE NEW FAITAL PRO 12PR320 12" WOOFER CAN HANDLE 300 WATTS AES & 600 WATTS PROGRAM POWER
• SENSITIVITY OF 97DB SPL, RESONANT FREQUENCY OF 42HZ, FREQUENCY RANGE FROM 45HZ TO 5.0KHZ & A HIGH 7.37MM XMAX FOR CLEAN SOUND
• SMOOTH TIGHT BASS WITH VERY CLEAN MIDRANGE
• WEIGHS ONLY 6.1 LBS. THANKS TO ITS' LIGHTWEIGHT NEODYMIUM MAGNET
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• WORKS GREAT AS A CLEAN TIGHT SOUNDING BASS GUITAR SPEAKER & 2 OR 3-WAY PA SPEAKER SYSTEMS
• AVAILABLE IN 8 OR 16 OHMS

THE FAITAL PRO 12PR320 HAS A SMOOTH TIGHT BASS SOUND & DETAILED MIDS FROM THIS 300 WATT AES 12" SPEAKER!
	8 Ohm Version Item Price: $266.95
	16 Ohm Version Item Price: $266.95
WOOFER MODEL	12PR320
Specifications
Nominal Basket Diameter	12" / 300mm
Impedance	8 ohms
AES Power Rating	300 Watts
Program Power	600 Watts
Frequency Response	45Hz - 5.0kHz
Sensitivity (1W/1m)	97dB SPL
Voice Coil Diameter	2.56" / 65mm
Winding Depth	.69" /17.4 mm
Magnetic Gap Depth	.31" / 8 mm
X Damage	17 mm
BL Factor	13.5 N/A
Mounting Information
Overall Diameter	12.44" / 316mm
Bolt Circle Diameter	11.75" / 298.5mm
Baffle Cutout Diameter-Front Mount	11.1" / 282mm
No. Of Mounting Holes	8
Overall Depth	4.72" / 120mm
Flange & gasket Thickness	0.47" / 12mm
Net Weight	6.1 lb. / 2.75 kg.
Shipping Weight	7.5 lb. / 3.4 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Former Material	Glass Fiber
Voice Coil	Aluminum
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	42 Hz
Impedance (Re)	5.3 ohms
Coil Inductance (Le)	0.67 mH
Mechanical Q (Qms)	7.8
Electrical Factor (Qes)	.39
Total Q (Qts)	.37
Comp. Equivelant Vol. (Vas)	3.35 ft3 / 94.8 Liters
Voice Coil Overhang (Xmax)	7.37 mm
Surface Area of Cone (Sd)m2	0.0489m2
Reference Efficiency	1.73%
Diaphragm Mass (Mms)	51.4 Grams
Mechanical Compliance (Cms)	.28 mm/N
Mechanical Resistance (Rms)	1.74 Kg/s

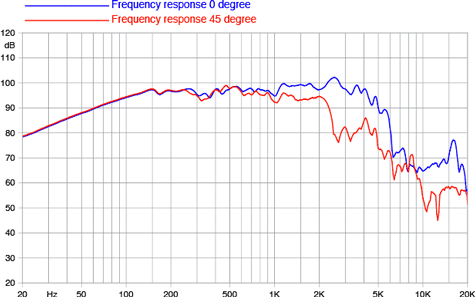

Frequency Response

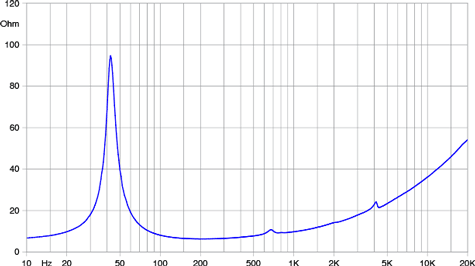

Free Air Impedance Curve

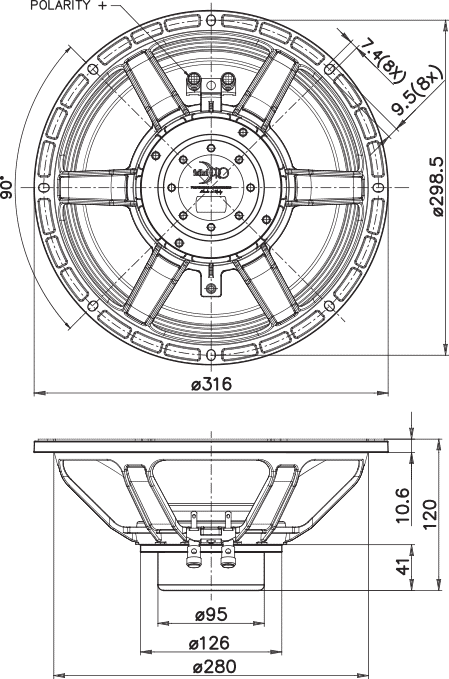

Mounting Dimensions
