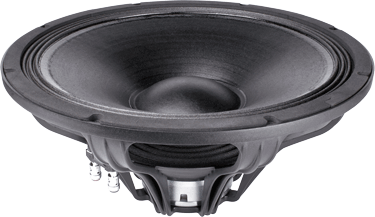

FAITAL PRO 15FH520 - 15" WOOFER
|
|
|
FAITAL PRO 15FH520 - 15" WOOFER |
|
WIDE FLAT EXTENDED FREQUENCY RANGE THANKS TO ITS' ALUMINUM DEMODULATION RING W/ 9.0MM XMAX FOR A STRONG SMOOTH BASS & MIDS! |
|
|
|
New 4 Ohm Version
Item Price: $412.95 |
|
8 Ohm Version
Item Price: $412.95 |
|
|
16 Ohm Version
Item Price: $412.95 |
|
| WOOFER MODEL | 15FH520 |
|
Specifications |
|
|
Nominal
Basket Diameter |
15" |
|
Impedance |
8 ohms |
|
AES
Power Rating |
600 Watts |
| Program Power | 1,200 Watts |
| Frequency Response | 40Hz - 4kHz |
|
Sensitivity
(1W/1m) |
98dB SPL |
| Voice Coil Diameter | 3" / 77mm |
| Voice Coil Length | 21.5 mm |
| Air Gap Height | 12 mm |
| X Damage | 16 mm |
| BL Factor | 18.4 N/A |
|
Mounting Information |
|
| Overall Diameter | 15.47" / 393mm |
| Bolt Circle Diameter | 14.72" / 374mm |
| Baffle Cutout Diameter-Front Mount | 14.01" / 356mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 7.14" / 181.3mm |
| Flange & gasket Thickness | 0.54" / 13.7mm |
| Net Weight | 10.4 lb. / 4.7 kg. |
| Shipping Weight | 11.4 lb. / 5.3 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Treated Cloth |
| Former Material | Glass Fiber |
| Voice Coil | Aluminum |
| Magnet | Neodymium |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 38 Hz |
| Impedance (Re) | 5.6 ohms |
| Coil Inductance (Le) | .89 mH |
| Mechanical Q (Qms) | 10.1 |
| Electrical Factor (Qes) | .41 |
| Total Q (Qts) | .4 |
| Comp. Equivelant Vol. (Vas) | 5.53 ft3 / 156.6 Liters |
| Voice Coil Overhang (Xmax) | 8.75 mm |
| Surface Area of Cone (Sd)m2 | 0.0813m2 |
| Reference Efficiency | 2% |
| Diaphragm Mass (Mms) | 105 Grams |
| Mechanical Compliance (Cms) | .16 mm/N |
| Mechanical Resistance (Rms) | 2.5 Kg/s |
|

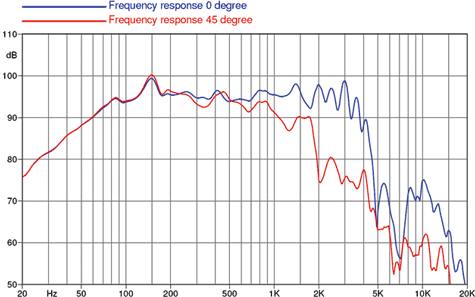

Frequency Response |
|
|
|
|
|

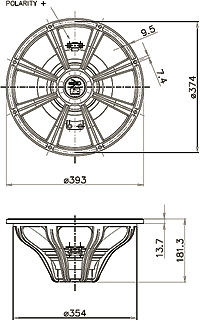

Mounting Dimensions |
|
|
|
|
