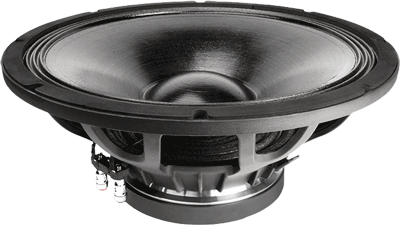

• THE FAITAL PRO 15FH530 15" SPEAKER CAN HANDLE 500 WATTS AES & 1,000 WATTS PROGRAM POWER
• FEATURES AN ALUMINUM DEMODULATION RING FOR A MORE FLATTER RESPONSE WITH LOWER DISTORTION
• ARTICULATE SMOOTH MIDRANGE & A STRONG TIGHT BASS SOUND WITH A HIGH 9.25MM XMAX
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• WORKS GREAT IN HIGH END BASS GUITAR CABINETS & IN 2 OR 3-WAY PA CABINETS

EXCELLENT BASS GUITAR SPEAKER THAT SOUNDS SMOOTH WITH PUNCHY MIDS!
	Item Price: $341.95
WOOFER MODEL	15FH530
Specifications
Nominal Basket Diameter	15" / 380mm
Impedance	8 ohms
AES Power Rating	500 Watts
Program Power	1,000 Watts
Frequency Response	40Hz - 3.15kHz
Sensitivity (1W/1m)	97dB SPL
Voice Coil Diameter	3" / 77mm
Voice Coil Length	22 mm
Air Gap Height	10.5 mm
X Damage	16 mm
Flux Density	1.2 T
BL Factor	20.7 N/A
Mounting Information
Overall Diameter	15.47" / 393mm
Bolt Circle Diameter	14.72" / 374mm
Baffle Cutout Diameter-Front Mount	13.94" / 354mm
No. Of Mounting Holes	8
Overall Depth	7.09" / 180mm
Flange & gasket Thickness	0.52" / 13.1mm
Net Weight	18.7 lb. / 8.5 kg.
Shipping Weight	21.2 lb. / 9.6 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Former Material	Glass Fiber
Voice Coil	Copper
Surround	Triple Roll
Demodulation Ring	Aluminum
Magnet	Ferrite
Thiele-Small Parameters
Resonant Frequency (fs)	39 Hz
Impedance (Re)	5.1 ohms
Coil Inductance (Le)	1.1 mH
Mechanical Q (Qms)	8.9
Electrical Factor (Qes)	.36
Total Q (Qts)	.35
Comp. Equivelant Vol. (Vas)	4.46 ft3 / 126.4 Liters
Voice Coil Overhang (Xmax)	9.25 mm
Surface Area of Cone (Sd)m2	0.0813m2
Reference Efficiency	2.02%
Diaphragm Mass (Mms)	123.5 Grams
Mechanical Compliance (Cms)	.13 mm/N
Mechanical Resistance (Rms)	3.4 Kg/s

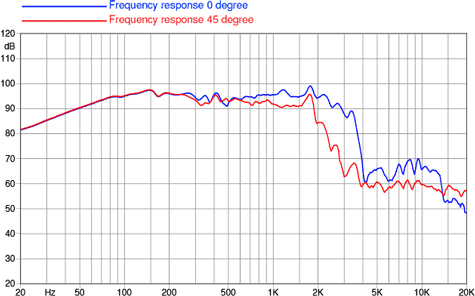

Frequency Response

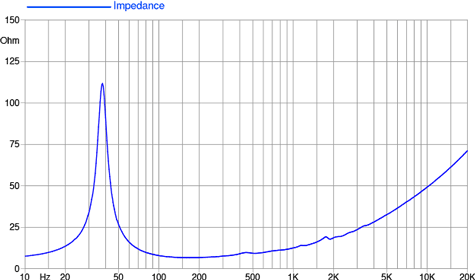

Free Air Impedance Curve

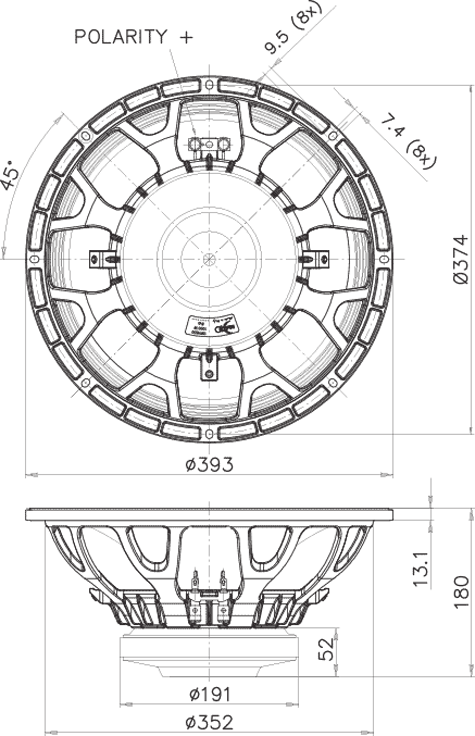

Mounting Dimensions

US Speaker, LLC
