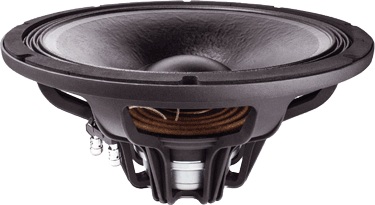

FAITAL PRO 15FX600 - 15" MID-BASS SPEAKER
|
|
|
FAITAL PRO 15FX600 - 15" MID-BASS SPEAKER |
|
LOW DISTORTION THANKS TO ITS' ALUMINUM DEMODULATION RING W/ 11.25MM XMAX FOR A STRONG SMOOTH BASS & MIDS! |
|
|
|
Item Price: $494.95 |
| WOOFER MODEL | 15FX600 |
|
Specifications |
|
|
Nominal
Basket Diameter |
15" |
|
Impedance |
8 ohms |
|
AES
Power Rating |
700 Watts |
| Program Power | 1,400 Watts |
| Frequency Response | 40Hz - 3.15kHz |
|
Sensitivity
(1W/1m) |
98dB SPL |
| Voice Coil Diameter | 3" / 77mm |
| Winding Depth | 26.5 mm |
| Air Gap Height | 12 mm |
| X Damage | 22.9 mm |
| BL Factor | 24.5 N/A |
|
Mounting Information |
|
| Overall Diameter | 15.47" / 393mm |
| Bolt Circle Diameter | 14.72" / 374mm |
| Baffle Cutout Diameter-Front Mount | 13.94" / 354mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 7.65" / 194.3mm |
| Flange & gasket Thickness | 0.54" / 13.7mm |
| Net Weight | 13 lb. / 5.9 kg. |
| Shipping Weight | 15.9 lb. / 7.2 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Treated Cloth |
| Surround Shape | Triple Roll |
| Former Material | Glass Fiber |
| Voice Coil | Copper |
| Demodulation Ring | Aluminum |
| Magnet | Neodymium |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 36 Hz |
| Impedance (Re) | 5 ohms |
| Coil Inductance (Le) | 1.26 mH |
| Mechanical Q (Qms) | 7.4 |
| Electrical Factor (Qes) | .27 |
| Total Q (Qts) | .26 |
| Comp. Equivelant Vol. (Vas) | 4.54 ft3 / 128.6 Liters |
| Voice Coil Overhang (Xmax) | 11.25 mm |
| Surface Area of Cone (Sd)m2 | 0.0813m2 |
| Reference Efficiency | 2.17% |
| Diaphragm Mass (Mms) | 142.5 Grams |
| Mechanical Compliance (Cms) | .14 mm/N |
| Mechanical Resistance (Rms) | 4.35 Kg/s |
|

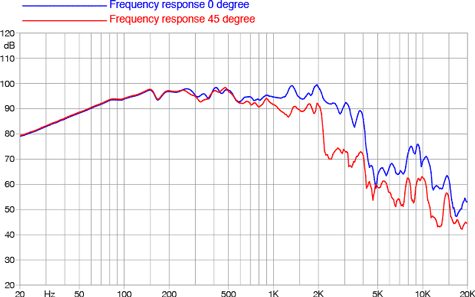

Frequency Response |
|
|
|
|

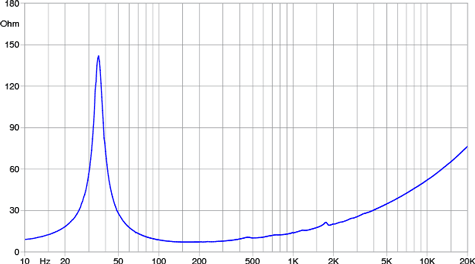

| Free Air Impedance Curve | |
 |
|
|

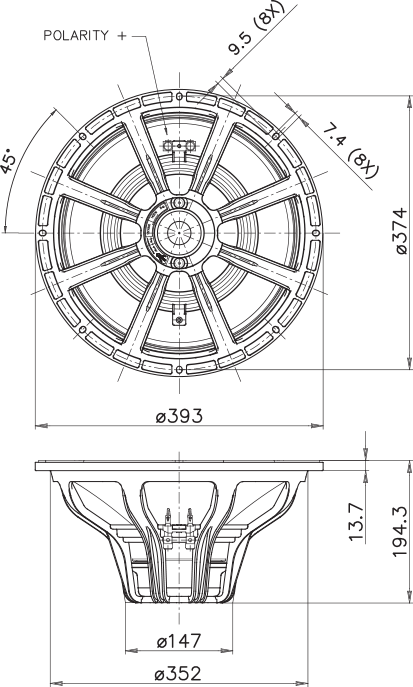

Mounting Dimensions |
|
|
|
|
