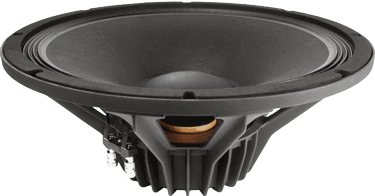

• THE FAITAL PRO 15PR300 15" SPEAKER CAN HANDLE 300 WATTS AES & 600 WATTS PROGRAM POWER
• 97DB SPL, LOW  RESONANT FREQUENCY OF 35HZ & 5.23MM XMAX FOR A STRONG CLEAN BASS & MIDS
• WIDE FREQUENCY RANGE FROM 35HZ-4KHZ & HIGH X DAMAGE (PEAK TO PEAK) OF 12.3MM
• WEIGHS ONLY 7.1 LBS. THANKS TO ITS' LIGHTWEIGHT NEODYMIUM MAGNET
• WORKS GREAT FOR MID-BASS SPEAKER SYSTEMS, HIGH END BASS GUITAR CABINETS & IN 2 OR 3-WAY PA CABINETS
• THE FAITAL PRO 15PR300 IS AVAILABLE IN 8 OHMS

THE FAITAL PRO 15PR300 HAS A WIDE FREQUENCY RANGE FROM 35HZ TO 4KHZ, IS 97B SPL WITH A 5.23MM XMAX!
	Item Price: $289.95
WOOFER MODEL	15PR300
Specifications
Nominal Basket Diameter	15" / 380mm
Impedance	8 ohms
AES Power Rating	300 Watts
Program Power	600 Watts
Frequency Response	35Hz - 4kHz
Sensitivity (1W/1m)	97dB SPL
Voice Coil Diameter	2.56" / 65mm
Winding Depth	13.2 mm
Magnetic Gap Depth	8.2 mm
X Damage	12.3 mm
Flux Density	1.2 T-M
BL Factor	15.6 N/A
Mounting Information
Overall Diameter	15.47" / 393mm
Bolt Circle Diameter	14.72" / 374mm
Baffle Cutout Diameter-Front Mount	14.02" / 356mm
No. Of Mounting Holes	8
Overall Depth	6.5" / 165mm
Flange & gasket Thickness	0.52" / 13.1mm
Net Weight	7.1 lb. / 3.2 kg.
Shipping Weight	9.5 lb. / 4.3 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Former Material	Glass Fiber
Voice Coil	Copper
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	35 Hz
Impedance (Re)	5.4 ohms
Coil Inductance (Le)	.89 mH
Mechanical Q (Qms)	14
Electrical Factor (Qes)	.5
Total Q (Qts)	.48
Comp. Equivelant Vol. (Vas)	7.77ft3 / 220.1Liters
Voice Coil Overhang (Xmax)	5.23 mm
Surface Area of Cone (Sd)m2	0.087m2
Reference Efficiency	1.89%
Diaphragm Mass (Mms)	99.2 Grams
Mechanical Compliance (Cms)	.21 mm/N
Mechanical Resistance (Rms)	1.6 Kg/s

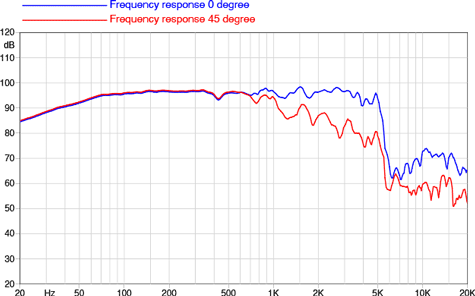

Frequency Response

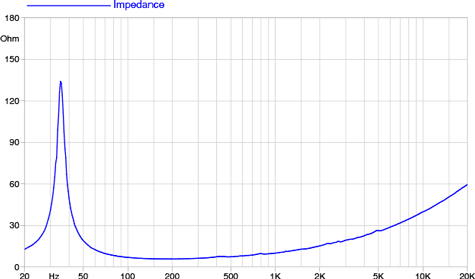

Free Air Impedance Curve

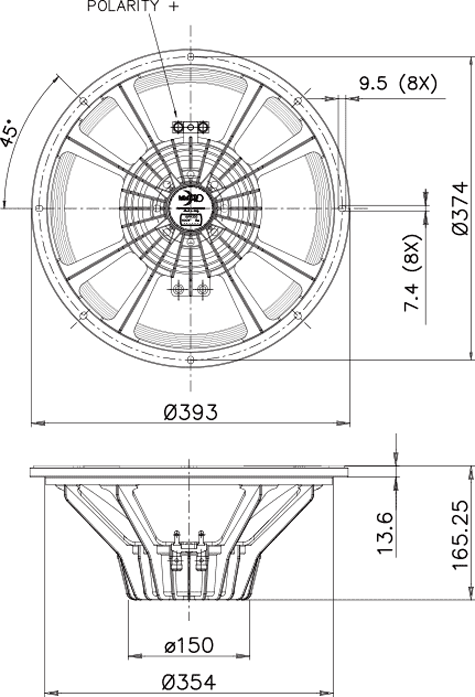

Mounting Dimensions
