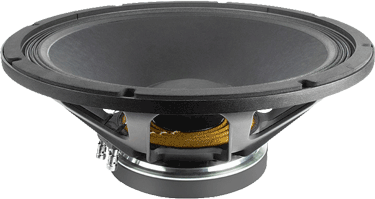

• THE FAITAL PRO 15PR450 15" SPEAKER CAN HANDLE 400 WATTS AES & 800 WATTS PROGRAM POWER
• FEATURES AN ALUMINUM DEMODULATION RING FOR A FLATTER RESPONSE AND LOWER DISTORTION
• HIGH EFFICIENCY OF 98DB SPL, LOW  RESONANT FREQUENCY OF 32HZ & 6.0MM XMAX FOR A STRONG CLEAN BASS & MIDS
• WIDE FREQUENCY RANGE FROM 35HZ-4KHZ & HIGH X DAMAGE (PEAK TO PEAK) OF 23MM
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• WORKS GREAT FOR HIGH END BASS GUITAR CABINETS, MID-BASS SYSTEMS & HI-FI SPEAKER SYSTEMS
• AVAILABLE IN 8 OHMS

THE FAITAL PRO 15PR450 HAS TIGHT BASS WITH CLEAN DEFINED MIDS AND AN OVERALL SMOOTH SOUND?
	COMING SOON
WOOFER MODEL	15PR450
Specifications
Nominal Basket Diameter	15" / 380mm
Impedance	8 ohms
AES Power Rating	400 Watts
Program Power	800 Watts
Frequency Response	35Hz - 4kHz
Sensitivity (1W/1m)	98dB SPL
Voice Coil Diameter	3" / 77mm
Voice Coil Length	15 mm
Air Gap Height	9 mm
X Damage	23 mm
BL Factor	16.6 N/A
Mounting Information
Overall Diameter	15.47" / 393mm
Bolt Circle Diameter	14.72" / 374mm
Baffle Cutout Diameter-Front Mount	13.94" / 354mm
No. Of Mounting Holes	8
Overall Depth	6.8" / 172.6mm
Flange & Gasket Thickness	0.54" / 13.6mm
Net Weight	17.2 lb. / 7.8 kg.
Shipping Weight	19.6 lb. / 8.9 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Surround Shape	4 Accordion Waves
Former Material	Glass Fiber
Voice Coil	Aluminum
Demodulation Ring	Aluminum
Magnet	Ferrite
Thiele-Small Parameters
Resonant Frequency (fs)	35 Hz
Impedance (Re)	5.1 ohms
Coil Inductance (Le)	.65 mH
Mechanical Q (Qms)	6.9
Electrical Factor (Qes)	.37
Total Q (Qts)	.35
Comp. Equivelant Vol. (Vas)	8.32ft3 / 235.6 Liters
Voice Coil Overhang (Xmax)	6.0 mm
Surface Area of Cone (Sd)m2	0.0857m2
Reference Efficiency	2.67%
Diaphragm Mass (Mms)	90 Grams
Mechanical Compliance (Cms)	.23 mm/N
Mechanical Resistance (Rms)	2.9 Kg/s

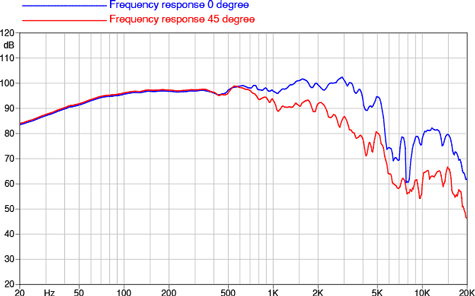

Frequency Response

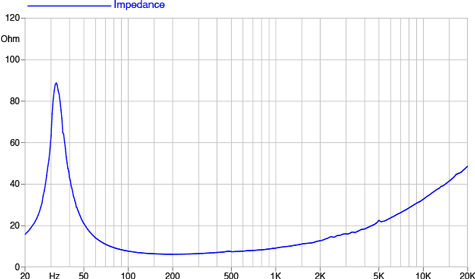

Free Air Impedance Curve

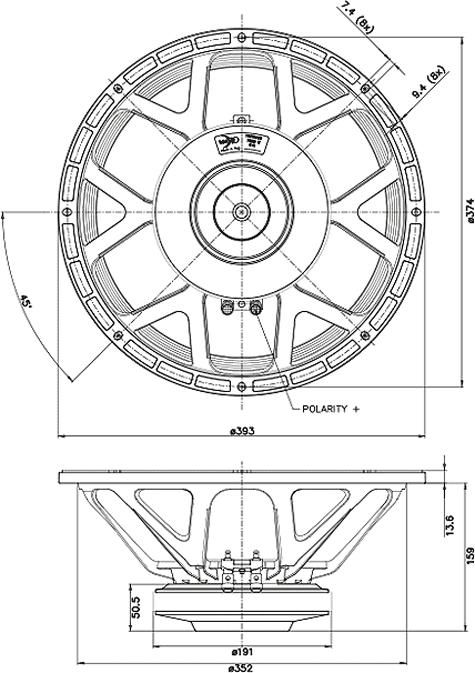

Mounting Dimensions
