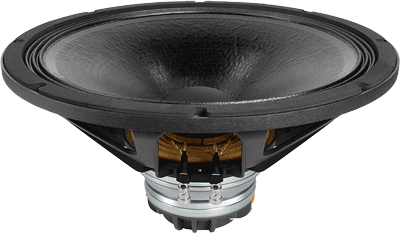

FAITAL PRO 15HX500 - HIGH POWER LIGHTWEIGHT 15" COAXIAL SPEAKER

THE 15HX500 LIGHTWEIGHT NEODYMIUM 15" COAXIAL SPEAKER HAS A DETAILED SMOOTH OVERALL SOUND!

Faital Pro 15HX500

Item Price: $815.95

COAXIAL MODEL 15HX500

Specifications

Low Frequency

Nominal Basket Diameter 15" / 380mm
Impedance 8 ohms
AES Power Rating 400 Watts
Program Power 800 Watts
Frequency Response 40Hz - 3.15kHz
Sensitivity (1W/1m) 97dB SPL
Voice Coil Diameter 3.03" / 77mm
Winding Depth .86" / 21.8 mm
Magnetic Gap Depth .36" / 9.0 mm
X Damage 18.5 mm
Flux Density 1.2 T
BL Factor 22.2 N/A

High Frequency

Impedance (Re) 5.6 ohms
AES Power Rating 90 Watts
Program Power 180 Watts
Frequency Response 500Hz - 20kHz
Sensitivity (1W/1m) 105dB SPL
Voice Coil Diameter 2.91" / 74mm
Winding Depth .14" / 3.5 mm
Magnetic Gap Depth .15" / 3.7 mm
Flux Density 2 T
Minimum Crossover Frequency 900Hz
Dispersion Angle 100

Mounting Information

Overall Diameter 15.47" / 393mm
Bolt Circle Diameter 14.72" / 374mm
Baffle Cutout Diameter-Front Mount 13.86" / 352mm
No. Of Mounting Holes 8
Overall Depth 7.87" / 200mm
Flange & Gasket Thickness 0.55" / 14mm
Net Weight 13.4 lb. / 6.1 kg.
Shipping Weight 15.4 lb. / 7 kg.

Materials

Low Frequency

Basket Cast Aluminum
Cone Paper Pulp (Weather Proof)
Surround Treated Cloth
Surround Shape Triple Roll
Former Material Glass Fiber
Voice Coil Aluminum
Demodulation Aluminum Ring
Magnet Neodymium

High Frequency

Voice Coil Aluminum
Former Material Kapton
Diaphragm Material Titanium
Diaphragm Shape Dome
Magnet Neodymium

Thiele-Small Parameters

Resonant Frequency (fs) 40 Hz
Impedance (Re) 5.0 ohms
Coil Inductance (Le) 0.84 mH
Mechanical Q (Qms) 5.5
Electrical Factor (Qes) .29
Total Q (Qts) .28
Comp. Equivelant Vol. (Vas) 5.3 ft3 / 150.1 Liters
Voice Coil Overhang (Xmax) 9.4 mm
Surface Area of Cone (Sd)m2 0.0864m2
Reference Efficiency 3.2%
BL Factor (T-M) 22.2 N/A
Diaphragm Mass (Mms) 110 Grams
Mechanical Compliance (Cms) .14 mm/N
Mechanical Resistance (Rms) 5.0 Kg/s
EBP 138

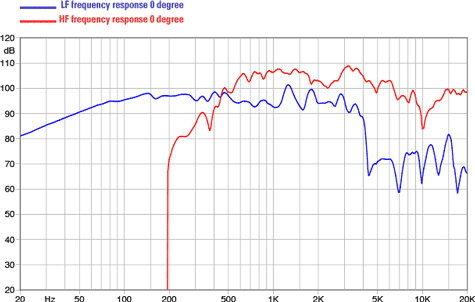

Frequency Response

Faital Pro 15HX500 Frequency

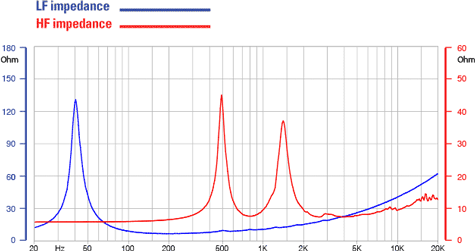

Free Air Impedance Curve
Faital Pro 15HX500 Impedance

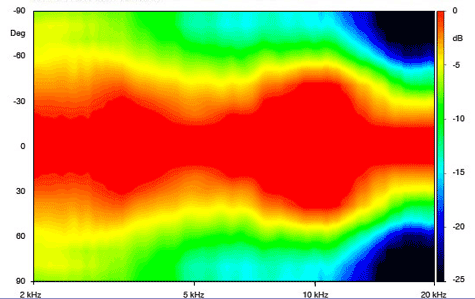

Horizontal Beamwidth

Faital Pro 15HX500 Beamwidth

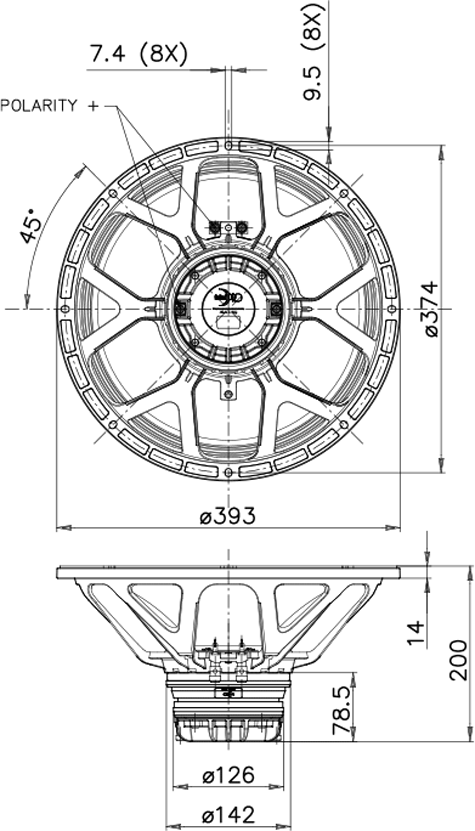

Mounting Dimensions
Faital Pro 15HX500 Drawing
