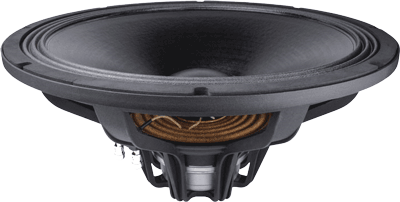

• THE NEW FAITAL PRO 18FX600 18" SPEAKER CAN HANDLE 700 WATTS AES & 1,400 WATTS PROGRAM POWER
• FEATURES AN ALUMINUM DEMODULATION RING OR LOWER DISTORTION, HIGH EFFICIENCY OF 99DB SPL & A HIGH 11.25MM XMAX FOR A STRONG BASS
• WEIGHS ONLY 13.4 LBS. THANKS TO ITS' LIGHTWEIGHT NEODYMIUM MAGNET
• HAS A SMOOTH SOUND W/ A WIDE FREQUENCY RANGE FROM 35HZ TO 2.5KHZ
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• DESIGNED FOR BASS REFLEX(PORTED) SPEAKER CABINETS INCLUDING BASS GUITAR & PA SYSTEMS, ETC.

VERY SMOOTH & CLEAN SOUNDING 18" WOOFER W/ A HIGH 9.25MM XMAX & HIGH 99DB SPL!
	Item Price: $559.95
WOOFER MODEL	18FX600
Specifications
Nominal Basket Diameter	18" / 460mm
Impedance	8 ohms
AES Power Rating	700 Watts
Program Power	1,400 Watts
Frequency Response	35Hz - 2.5kHz
Sensitivity (1W/1m)	99dB SPL
Voice Coil Diameter	3" / 77mm
Winding Depth	26.5 mm
Air Gap Height	12 mm
Flux Density	1.26T
X Damage	22.9 mm
BL Factor	24.5 N/A
Mounting Information
Overall Diameter	18.11" / 460mm
Bolt Circle Diameter	17.32" / 440mm
Baffle Cutout Diameter-Front Mount	16.61" / 422mm
No. Of Mounting Holes	8
Overall Depth	8.46" / 215mm
Flange & gasket Thickness	0.55" / 13.9mm
Net Weight	13.4 lb. / 6.1 kg.
Shipping Weight	16.5 lb. / 7.5 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Surround Shape	Triple Roll
Former Material	Glass Fiber
Voice Coil	Copper
Demodulation Ring	Aluminum
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	32 Hz
Impedance (Re)	5 ohms
Coil Inductance (Le)	1.35 mH
Mechanical Q (Qms)	7.4
Electrical Factor (Qes)	.29
Total Q (Qts)	.28
Comp. Equivelant Vol. (Vas)	9.1 ft3 / 257.8 Liters
Voice Coil Overhang (Xmax)	11.25 mm
Surface Area of Cone (Sd)m2	0.1134m2
Reference Efficiency	2.8%
Diaphragm Mass (Mms)	175 Grams
Mechanical Compliance (Cms)	.014 mm/N
Mechanical Resistance (Rms)	4.75 Kg/s

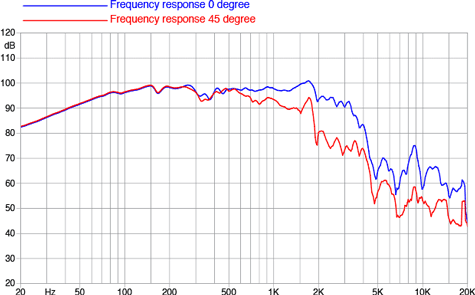

Frequency Response

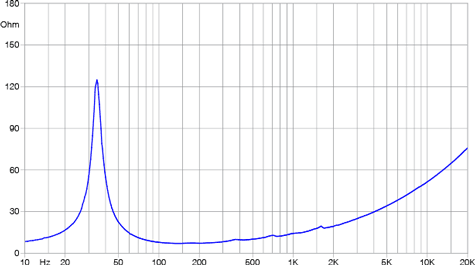

Free Air Impedance Curve

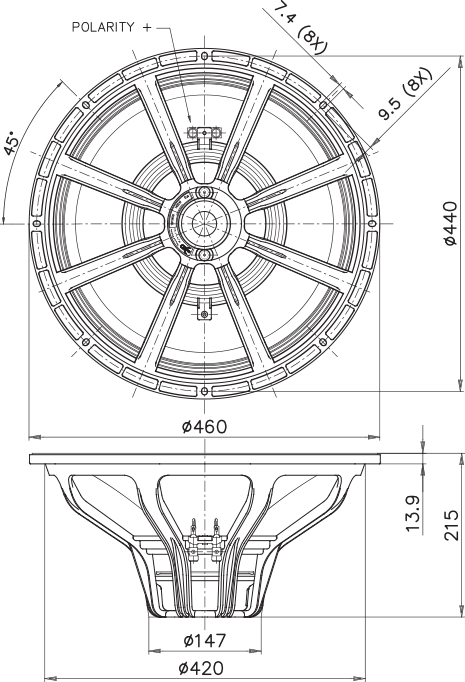

Mounting Dimensions
