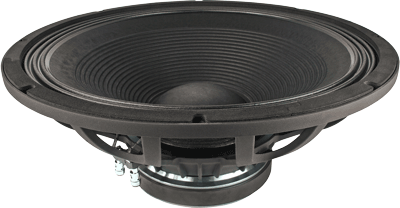

• THE FAITAL PRO 18HP1010 18" SPEAKER CAN HANDLE 1,000 WATTS AES & 2,000 WATTS PROGRAM POWER
• PATENT PENDING THERMAL SYSTEM EXCHANGE DESIGN FOR AIR BENDING & COOLING
• FEATURES A HIGH EFFICIENCY OF 98DB SPL & A HIGH 9.75MM XMAX FOR A STRONG TIGHT BASS
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• DESIGNED FOR HIGH POWER PORTED (BASS REFLEX) OR HORN LOADED SUBWOOFER SPEAKER CABINETS
• AVAILABLE IN 4 OR 8 OHMS

THE 18HP1010  HAS A VERY STRONG DEEP CHEST POUNDING BASS THAT HANDLES A MASSIVE 2,000 WATTS W/ A HIGH  9.75MM XMAX!
	4 Ohm Version Item Price: $423.95
	8 Ohm Version Item Price: $423.95
WOOFER MODEL	18HP1010
Specifications
Nominal Basket Diameter	18" / 460mm
Impedance	8 ohms
AES Power Rating	1,000 Watts
Program Power	2,000 Watts
Frequency Response	35Hz - 2.0kHz
Sensitivity (1W/1m)	98dB SPL
Voice Coil Diameter	4" / 100mm
Voice Coil Length	23 mm
Air Gap Height	10.5 mm
X Damage	21.9 mm
BL Factor	22 N/A
Mounting Information
Overall Diameter	18.11" / 460mm
Bolt Circle Diameter	17.32" / 440mm
Baffle Cutout Diameter-Front Mount	16.57" / 421mm
No. Of Mounting Holes	8
Overall Depth	8.01" / 203.5mm
Flange & gasket Thickness	0.54" / 13.7mm
Net Weight	22.35 lb. / 10.1 kg.
Shipping Weight	24.47 lb. / 11.1 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Surround Shape	Triple Roll
Former Material	Glass Fiber
Voice Coil	Copper
Magnet	Ferrite
Thiele-Small Parameters
Resonant Frequency (fs)	35 Hz
Impedance (Re)	5.3 ohms
Coil Inductance (Le)	1.37 mH
Mechanical Q (Qms)	7.8
Electrical Factor (Qes)	.42
Total Q (Qts)	.4
Comp. Equivelant Vol. (Vas)	7.6 ft3 / 215.3 Liters
Voice Coil Overhang (Xmax)	9.75 mm
Surface Area of Cone (Sd)m2	0.1134m2
Reference Efficiency	2.13%
Diaphragm Mass (Mms)	175.2 Grams
Mechanical Compliance (Cms)	.12 mm/N
Mechanical Resistance (Rms)	4.34 Kg/s

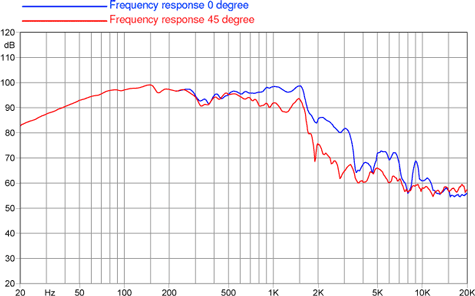

Frequency Response

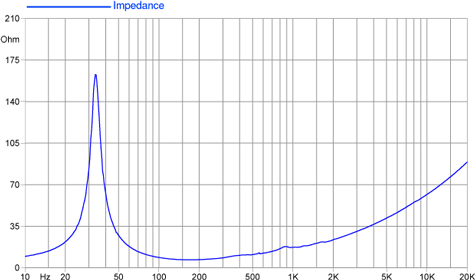

Free Air Impedance Curve
Mounting Dimensions
