• THE FAITAL PRO 18HP1022 18" SPEAKER CAN HANDLE 1,000 WATTS AES & 2,000 WATTS PROGRAM POWER
• NEWLY DESIGNED SPECIALLY REINFORCED CONE TO WITHSTAND HIGH PRESSURE IN HORN LOADED CABINET DESIGNS
• FEATURES A HIGH EFFICIENCY OF 98DB SPL & A LIGHTWEIGHT 14.6 LB. NEODYMIUM MAGNET
• HIGH 9.5MM XMAX FOR A STRONG BASS & FREQUENCY RANGE FROM 35HZ TO 1.6KHZ
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• DESIGNED FOR HIGH POWER FOLDED HORN SPEAKER CABINETS

THE FAITAL PRO 18HP1022 IS DESIGNED TO WORK WELL IN FOLDED SPEAKER CABINETS &  HANDLES A MASSIVE 2,000 WATTS!
	Item Price: $516.95
WOOFER MODEL	18HP1022
Specifications
Nominal Basket Diameter	18" / 460mm
Impedance	8 ohms
AES Power Rating	1,000 Watts
Program Power	2,000 Watts
Frequency Response	35Hz - 1.6kHz
Sensitivity (1W/1m)	98dB SPL
Voice Coil Diameter	4" / 100mm
Voice Coil Length	23 mm
Air Gap Height	12 mm
X Damage	17.5 mm
Flux Density	1.3 T
BL Factor	28 N/A
Mounting Information
Overall Diameter	18.11" / 460mm
Bolt Circle Diameter	17.32" / 440mm
Baffle Cutout Diameter-Front Mount	16.61" / 422mm
No. Of Mounting Holes	8
Overall Depth	7.95" / 202mm
Flange & gasket Thickness	0.55" / 13.9mm
Net Weight	14.6 lb. / 6.6 kg.
Shipping Weight	17.2 lb. / 7.8 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Former Material	Glass Fiber
Voice Coil	Copper
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	35 Hz
Impedance (Re)	5.4 ohms
Coil Inductance (Le)	1.75 mH
Mechanical Q (Qms)	14.4
Electrical Factor (Qes)	.31
Total Q (Qts)	.3
Comp. Equivelant Vol. (Vas)	6.32 ft3 / 179 Liters
Voice Coil Overhang (Xmax)	9.5 mm
Surface Area of Cone (Sd)m2	0.1124m2
Reference Efficiency	2.43%
Diaphragm Mass (Mms)	207 Grams
Mechanical Compliance (Cms)	.01 mm/N
Mechanical Resistance (Rms)	3.67 Kg/s

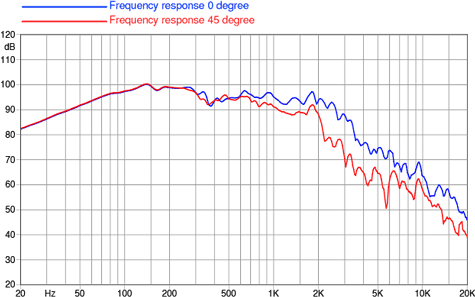

Frequency Response

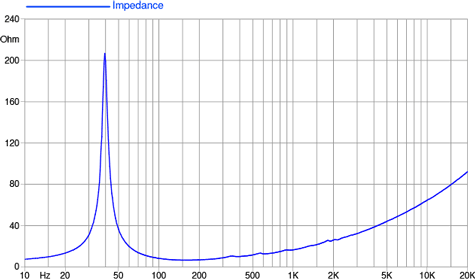

Free Air Impedance Curve

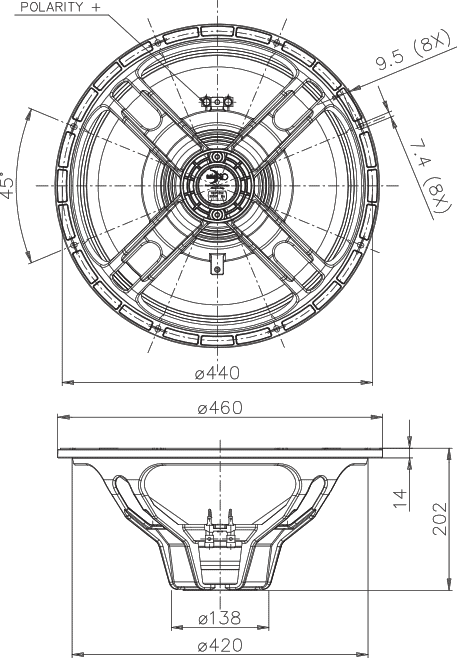

Mounting Dimensions
