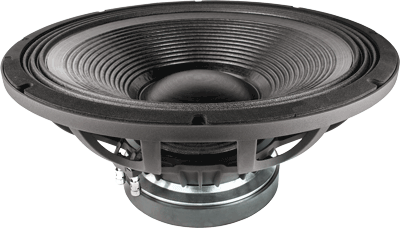

FAITAL PRO 18HP1030 - 18" HIGH POWER WOOFER
|
|
|
FAITAL PRO 18HP1030 - 18" HIGH POWER WOOFER |
|
THE 18HP1030 HAS A VERY STRONG DEEP CHEST POUNDING BASS THAT HANDLES A MASSIVE 2,400 WATTS W/ A HIGH 12.45MM XMAX! |
|
|
|
4 Ohm Version
Item Price: $519.95 |
|
8 Ohm Version
Item Price: $519.95 |
|
| WOOFER MODEL | 18HP1030 |
|
Specifications |
|
|
Nominal
Basket Diameter |
18" |
|
Impedance |
4 or 8 ohms |
|
AES
Power Rating |
1,200 Watts |
| Program Power | 2,400 Watts |
| Frequency Response | 35Hz - 1.6kHz |
|
Sensitivity
(1W/1m) |
98dB SPL |
| Voice Coil Diameter | 4" / 100mm |
| Voice Coil Length | 28.9 mm |
| Air Gap Height | 12 mm |
| X Damage | 23.1 mm |
| BL Factor | 24.3 N/A |
|
Mounting Information |
|
| Overall Diameter | 18.11" / 460mm |
| Bolt Circle Diameter | 17.32" / 440mm |
| Baffle Cutout Diameter-Front Mount | 16.57" / 421mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 8.21" / 208.5mm |
| Flange & gasket Thickness | 0.54" / 13.7mm |
| Net Weight | 26.62 lb. / 12.1 kg. |
| Shipping Weight | 29.26 lb. / 13.3 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Treated Cloth |
| Surround Shape | Triple Roll |
| Former Material | Glass Fiber |
| Voice Coil | Copper |
| Demodulation | Aluminum Ring |
| Magnet | Ferrite |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 35 Hz |
| Impedance (Re) | 5.0 ohms |
| Coil Inductance (Le) | 1.37 mH |
| Mechanical Q (Qms) | 11.6 |
| Electrical Factor (Qes) | .44 |
| Total Q (Qts) | .43 |
| Comp. Equivelant Vol. (Vas) | 5.88 ft3 / 166.4 Liters |
| Voice Coil Overhang (Xmax) | 12.45 mm |
| Surface Area of Cone (Sd)m2 | 0.1174m2 |
| Reference Efficiency | 1.67% |
| Diaphragm Mass (Mms) | 205.8 Grams |
| Mechanical Compliance (Cms) | .085 mm/N |
| Mechanical Resistance (Rms) | 4.46 Kg/s |
|

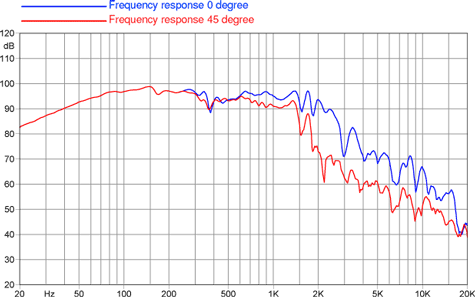

Frequency Response |
|
|
|
|

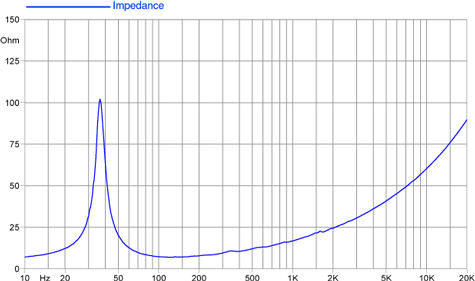

| Free Air Impedance Curve | |
 |
|
|

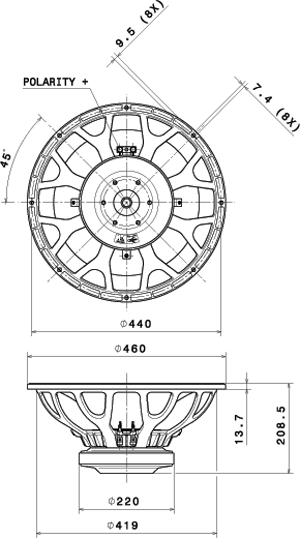

Mounting Dimensions |
|
|
|
|
