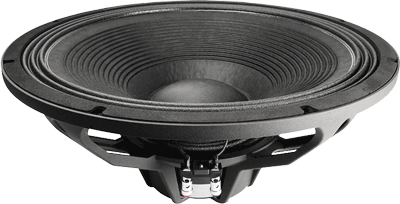

• THE FAITAL PRO 18HP1042 18" SPEAKER CAN HANDLE 1,000 WATTS AES & 2,000 WATTS PROGRAM POWER
• NEWLY DESIGNED SPECIALLY REINFORCED CONE TO WITHSTAND HIGH PRESSURE IN PORTED CABINET DESIGNS
• FEATURES A HIGH EFFICIENCY OF 98DB SPL & A LIGHTWEIGHT 14.8LB. NEODYMIUM MAGNET
• HIGH 9.0MM XMAX FOR A STRONG BASS & FREQUENCY RANGE FROM 38HZ TO 2.5KHZ
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• DUAL SPIDER MOUNTED INDEPENDENTLY 1.OMM APART FOR INCREASED LINEARITY
• DESIGNED FOR HIGH POWER PORTED (BASS REFLEX) SUBWOOFER SPEAKER CABINETS

THE FAITAL PRO 18HP1042 IS DESIGNED TO WORK IN PORTED SUBWOOFER CABINETS & HANDLES A MASSIVE 2,000 WATTS!
	Item Price: $516.95
WOOFER MODEL	18HP1042
Specifications
Nominal Basket Diameter	18" / 460mm
Impedance	8 ohms
AES Power Rating	1,000 Watts
Program Power	2,000 Watts
Frequency Response	38Hz - 2.5kHz
Sensitivity (1W/1m)	98dB SPL
Voice Coil Diameter	4" / 100mm
Voice Coil Length	22 mm
Air Gap Height	12 mm
X Damage	17.5 mm
Flux Density	1.3 T
BL Factor	24.5 N/A
Mounting Information
Overall Diameter	18.11" / 460mm
Bolt Circle Diameter	17.32" / 440mm
Baffle Cutout Diameter-Front Mount	16.61" / 422mm
No. Of Mounting Holes	8
Overall Depth	7.95" / 202mm
Flange & gasket Thickness	0.55" / 13.9mm
Net Weight	14.8 lb. / 6.7 kg.
Shipping Weight	17.2 lb. / 7.8 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Former Material	Glass Fiber
Voice Coil	Aluminum
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	38 Hz
Impedance (Re)	5.5 ohms
Coil Inductance (Le)	1.3 mH
Mechanical Q (Qms)	10.3
Electrical Factor (Qes)	.43
Total Q (Qts)	.42
Comp. Equivelant Vol. (Vas)	5.33 ft3 / 151 Liters
Voice Coil Overhang (Xmax)	9.0 mm
Surface Area of Cone (Sd)m2	0.1124m2
Reference Efficiency	2.1%
Diaphragm Mass (Mms)	187.5 Grams
Mechanical Compliance (Cms)	.08 mm/N
Mechanical Resistance (Rms)	4.58 Kg/s

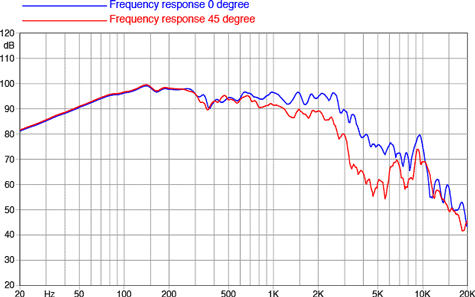

Frequency Response

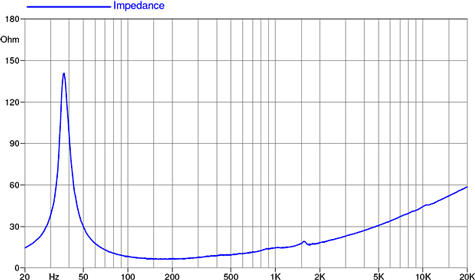

Free Air Impedance Curve

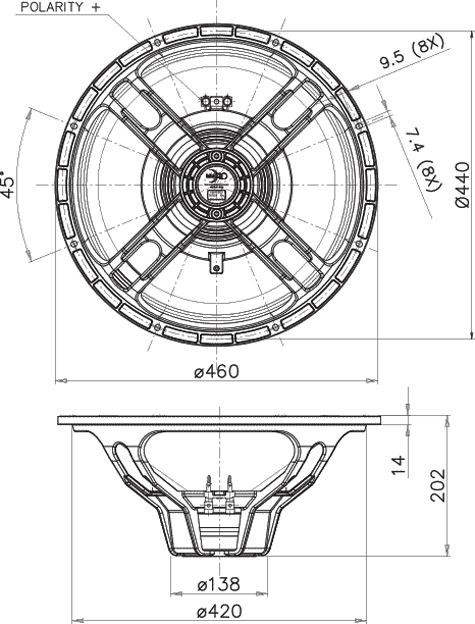

Mounting Dimensions
