• THE FAITAL PRO 18HP1060 18" SPEAKER CAN HANDLE 1,200 WATTS AES & 2,400 WATTS PROGRAM POWER
• FEATURES A HIGH EFFICIENCY OF 98DB SPL & A LIGHTWEIGHT 16.09 LB. NEODYMIUM MAGNET
• VERY HIGH 12.45MM XMAX FOR A STRONG BASS & FREQUENCY RANGE FROM 35HZ TO 1.6KHZ
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• DUAL SPIDER MOUNTED INDEPENDENTLY 1.OMM APART FOR INCREASED LINEARITY
• DESIGNED FOR HIGH POWER PORTED (BASS REFLEX) SUBWOOFER SPEAKER CABINETS
• AVAILABLE IN 4 OR 8 OHMS

VERY STRONG DEEP CHEST POUNDING BASS THAT HANDLES A MASSIVE 2,400 WATTS W/ A HIGH 12.45MM XMAX!
	4 Ohm Version Item Price: $620.95
	8 Ohm Version Item Price: $620.95
WOOFER MODEL	18HP1060
Specifications
Nominal Basket Diameter	18" / 460mm
Impedance	4 or 8 ohms
AES Power Rating	1,200 Watts
Program Power	2,400 Watts
Frequency Response	35Hz - 1.6kHz
Sensitivity (1W/1m)	98dB SPL
Voice Coil Diameter	4" / 100mm
Voice Coil Length	28.9 mm
Air Gap Height	12 mm
X Damage	21 mm
BL Factor	24.8 N/A
Mounting Information
Overall Diameter	18.11" / 460mm
Bolt Circle Diameter	17.32" / 440mm
Baffle Cutout Diameter-Front Mount	16.61" / 422mm
No. Of Mounting Holes	8
Overall Depth	8.46" / 215mm
Flange & gasket Thickness	0.55" / 13.9mm
Net Weight	16.1 lb. / 7.3 kg.
Shipping Weight	19.18 lb. / 8.7 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Former Material	Glass Fiber
Voice Coil	Copper
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	35 Hz
Impedance (Re)	5.0 ohms
Coil Inductance (Le)	1.26 mH
Mechanical Q (Qms)	11.1
Electrical Factor (Qes)	.38
Total Q (Qts)	.37
Comp. Equivelant Vol. (Vas)	6.74 ft3 / 190.8 Liters
Voice Coil Overhang (Xmax)	12.45 mm
Surface Area of Cone (Sd)m2	0.1174m2
Reference Efficiency	2.1%
Diaphragm Mass (Mms)	211.8 Grams
Mechanical Compliance (Cms)	.098 mm/N
Mechanical Resistance (Rms)	4.19 Kg/s

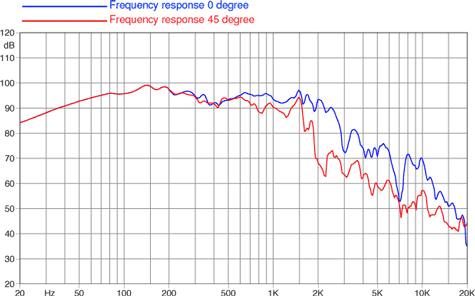

Frequency Response

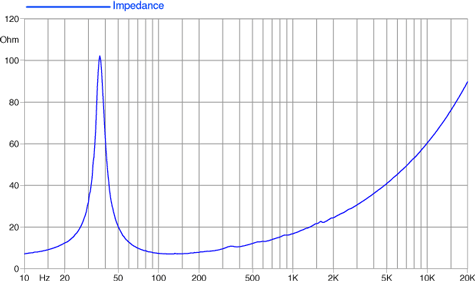

Free Air Impedance Curve

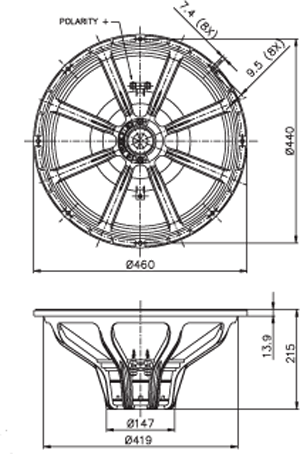

Mounting Dimensions
