• THE FAITAL PRO 18XL1600 18" SPEAKER CAN HANDLE A MASSIVE 1,600 WATTS AES & 3,200 WATTS PROGRAM POWER
• FEATURES A HIGH XMAX OF 13.0MM, COPPER VOICE COIL, HIGH EFFICIENCY OF 98DB SPL & A LIGHTWEIGHT 23.1 LB. NEODYMIUM MAGNET
• FREQUENCY RANGE FROM 30HZ TO 1.5KHZ
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• DUAL SPIDER MOUNTED INDEPENDENTLY 1.OMM APART FOR INCREASED LINEARITY
• DESIGNED FOR HIGH POWER PORTED (BASS REFLEX) & FOLDED HORN SUBWOOFER SPEAKER CABINETS
• AVAILABLE IN 4 OR 8 OHMS

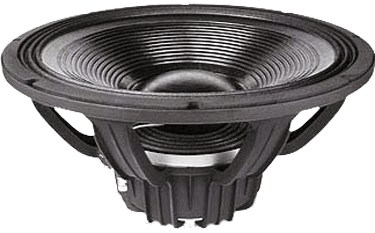

FAITAL PRO 18XL1600 HANDLES A MASSIVE 3,200 WATTS PROGRAM W/ A STRONG TIGHT BASS & A VERY HIGH 13.0MM XMAX!
	4 Ohm Version Item Price: $757.95
	8 Ohm Version Item Price: $757.95
WOOFER MODEL	18XL1600
Specifications
Nominal Basket Diameter	18" / 460mm
Impedance	4 or 8 ohms
AES Power Rating	1,600 Watts
Program Power	3,200 Watts
Frequency Response	30Hz - 1.5kHz
Sensitivity (1W/1m)	98dB SPL
Voice Coil Diameter	4" / 100mm
Voice Coil Length	31.3 mm
Air Gap Height	15.5 mm
X Damage	28 mm
BL Factor	26.7 N/A
Mounting Information
Overall Diameter	18.11" / 460mm
Bolt Circle Diameter	17.32" / 440mm
Baffle Cutout Diameter-Front Mount	16.61" / 422mm
No. Of Mounting Holes	8
Overall Depth	9.09" / 231mm
Flange & gasket Thickness	0.55" / 14mm
Net Weight	26.9 lb. / 12.2 kg.
Shipping Weight	30.2 lb. / 13.7 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Former Material	Glass Fiber
Voice Coil	Copper
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	32 Hz
Impedance (Re)	5.4 ohms
Coil Inductance (Le)	1.45 mH
Mechanical Q (Qms)	9.3
Electrical Factor (Qes)	.37
Total Q (Qts)	.36
Comp. Equivelant Vol. (Vas)	6.52 ft3 / 184.7 Liters
Voice Coil Overhang (Xmax)	13.0 mm
Surface Area of Cone (Sd)m2	0.1124m2
Reference Efficiency	1.76%
Diaphragm Mass (Mms)	240 Grams
Mechanical Compliance (Cms)	.1 mm/N
Mechanical Resistance (Rms)	5.2 Kg/s
EBP	86

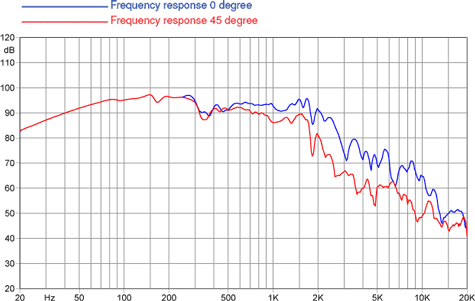

Frequency Response

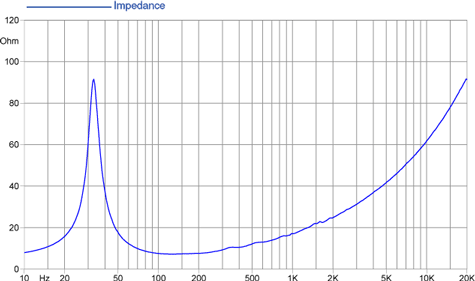

Free Air Impedance Curve

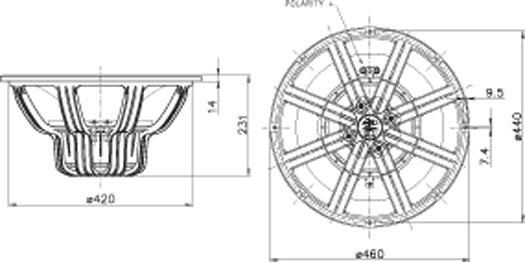

Mounting Dimensions
