• NEW FAITAL PRO 18XL1700 18" SPEAKER CAN HANDLE A MASSIVE 1,600 WATTS AES & 3,200 WATTS PROGRAM POWER
• FEATURES A HIGH XMAX OF 16.17MM, COPPER VOICE COIL & HIGH MOTOR STRENGTH OF 30.5 N/A
• LIGHTWEIGHT 32.7 LB. NEODYMIUM MAGNET
• FREQUENCY RANGE FROM 30HZ TO 1.5KHZ
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• DUAL SPIDER MOUNTED INDEPENDENTLY 1.OMM APART FOR INCREASED LINEARITY
• DESIGNED FOR HIGH POWER PORTED (BASS REFLEX) & FOLDED HORN SUBWOOFER SPEAKER CABINETS
• AVAILABLE IN 8 OHMS ONLY

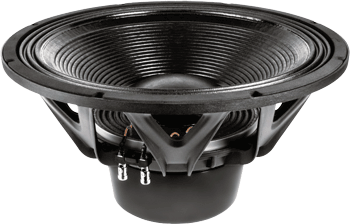

FAITAL PRO 18XL1700 HANDLES 3,200 WATTS PROGRAM W/ A STRONG TIGHT BASS & A VERY HIGH 16.17MM XMAX!
	Item Price: $829.95
WOOFER MODEL	18XL1700
Specifications
Nominal Basket Diameter	18" / 460mm
Impedance	8 ohms
AES Power Rating	1,600 Watts
Program Power	3,200 Watts
Frequency Response	30Hz - 1.5kHz
Sensitivity (1W/1m)	97dB SPL
Voice Coil Diameter	4" / 100mm
Winding Depth	37mm
Magnetic Gap Depth	14mm
X Damage	27mm
BL Factor	30.5 N/A
Mounting Information
Overall Diameter	18.11" / 460mm
Bolt Circle Diameter	17.32" / 440mm
Baffle Cutout Diameter-Front Mount	16.61" / 422mm
No. Of Mounting Holes	8
Overall Depth	9.21" / 234mm
Flange & gasket Thickness	0.55" / 14mm
Net Weight	32.7 lb. / 14.9 kg.
Shipping Weight	36 lb. / 16.4 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Former Material	Glass Fiber
Voice Coil	Copper
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	28Hz
Impedance (Re)	5.4 ohms
Coil Inductance (Le)	2.36 mH
Mechanical Q (Qms)	10
Electrical Factor (Qes)	.29
Total Q (Qts)	.28
Comp. Equivelant Vol. (Vas)	8.02 ft3 / 227 Liters
Voice Coil Overhang (Xmax)	16.17 mm
Surface Area of Cone (Sd)m2	0.1124m2
Reference Efficiency	1.76%
Diaphragm Mass (Mms)	280 Grams
Mechanical Compliance (Cms)	.12 mm/N
Mechanical Resistance (Rms)	4.9 Kg/s
EBP	98

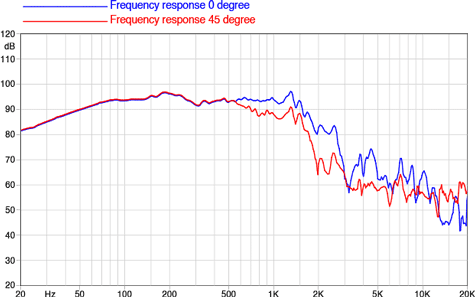

Frequency Response

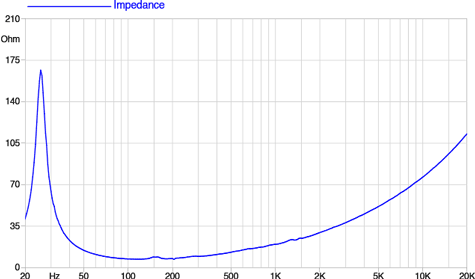

Free Air Impedance Curve

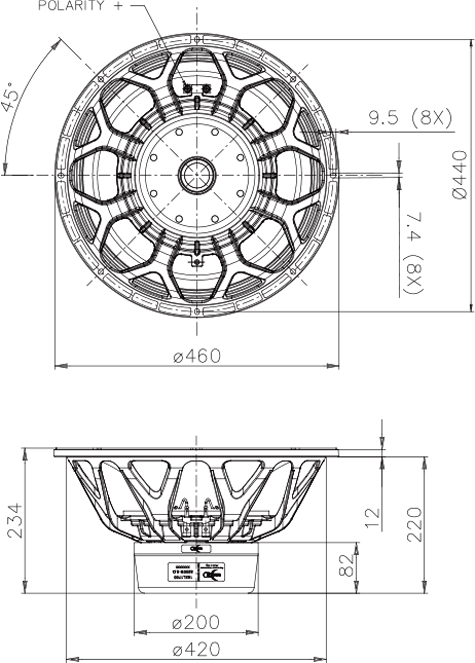

Mounting Dimensions
