FAITAL PRO 18XL2000 - 18" EXTREME POWER SUBWOOFER SPEAKER

THE FAITAL PRO 18XL2000 HANDLES A MASSIVE 4,000 WATTS PROGRAM W/ A STRONG BASS & A VERY HIGH 16.32MM XMAX!

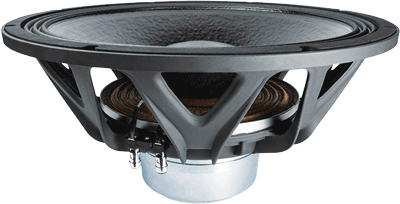

Faital Pro 18XL2000

Item Price: $734.95

WOOFER MODEL 18XL2000

SPEAKER CABINET DESIGNS BELOW

Specifications

Nominal Basket Diameter 18" / 460mm
Impedance 8 ohms
AES Power Rating 2,000 Watts
Program Power 4,000 Watts
Frequency Response 30Hz - 1.6kHz
Sensitivity (1W/1m) 97dB SPL
Voice Coil Diameter 4.65" / 118mm
Voice Coil Length 37.3 mm
Air Gap Height 14 mm
X Damage (peak to peak) 33 mm
Flux Density 1.2 T
BL Factor 30.8 N/A

Mounting Information

Overall Diameter 18.11" / 460mm
Bolt Circle Diameter 17.32" / 440mm
Baffle Cutout Diameter-Front Mount 16.61" / 422mm
No. Of Mounting Holes 8
Overall Depth 8.94" / 227mm
Flange & gasket Thickness 0.55" / 14mm
Net Weight 24.9 lb. / 11.3 kg.
Shipping Weight 28.2 lb. / 12.8 kg.

Materials

Basket Cast Aluminum
Cone Paper Pulp (Weather Proof)
Surround Treated Cloth
Surround Shape Triple Roll
Former Material Glass Fiber
Voice Coil Copper
Demodulation Rings x 2 Aluminum
Magnet Neodymium

Thiele-Small Parameters

Resonant Frequency (fs) 28 Hz
Impedance (Re) 5.3 ohms
Coil Inductance (Le) 1.45 mH
Mechanical Q (Qms) 10.1
Electrical Factor (Qes) .28
Total Q (Qts) .27
Comp. Equivelant Vol. (Vas) 7.15 ft3 / 202.4 Liters
Voice Coil Overhang (Xmax) 16.32 mm
Surface Area of Cone (Sd)m2 0.1124m2
Reference Efficiency 1.06%
Diaphragm Mass (Mms) 286 Grams
Mechanical Compliance (Cms) .11 mm/N
Mechanical Resistance (Rms) 5.0 Kg/s
EBP 100

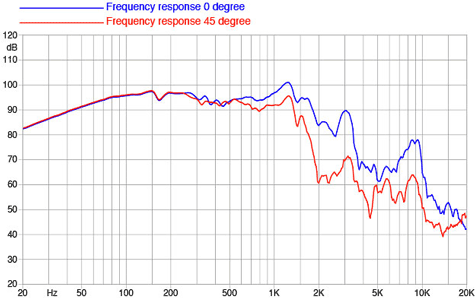

Frequency Response

Faital Pro 18XL2000 Frequency

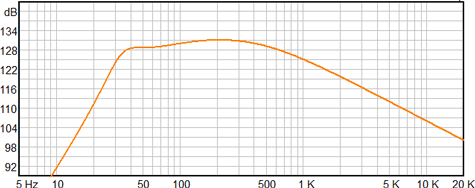

Bass Reflex(Ported) Single 18" Cabinet Size
SINGLE 18" CABINET SPECS
  • Enclosure Type - Single Bass Reflex/Ported - 1 x 18"

  • Internal Cabinet Volume - 7.0 cu. ft.

  • Internal Cabinet Dimensions: 20" Wide x 24" Height x 25.25" Deep

  • Tuning - 34Hz

  • Frequency @ -3dB - 35.5Hz

  • Slot Port - 20" Wide x 3" Height

  • Slot Port Depth - 17.875" Deep

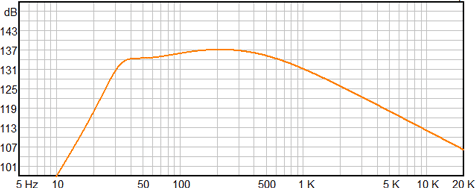

Bass Reflex(Ported) Dual 18" Cabinet Size
DUAL 18" CABINET SPECS
  • Enclosure Type - Single Bass Reflex/Ported - 2 x 18"

  • Internal Cabinet Volume - 14.0 cu. ft.

  • Internal Cabinet Dimensions: 40" Wide x 24" Height x 25.25" Deep

  • Tuning - 33Hz

  • Frequency @ -3dB - 34.97Hz

  • Slot Port - 40" Wide x 3" Height

  • Slot Port Depth - 18.25" Deep

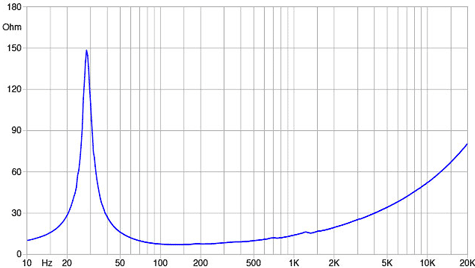

Free Air Impedance Curve
Faital Pro 18XL2000 Impedance

Mounting Dimensions

Faital Pro 18XL2000 Mounting
