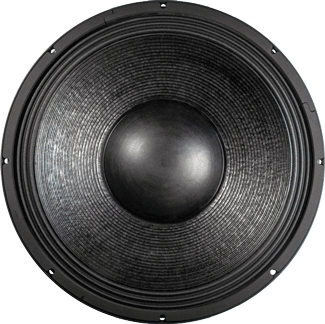

FAITAL PRO 21XL3000 - 21" EXTREME POWER SUBWOOFER SPEAKER
|
|
|
FAITAL PRO 21XL3000 - 21" EXTREME POWER SUBWOOFER SPEAKER |
|
THE FAITAL PRO 21XL3000 HANDLES A MASSIVE 6,000 WATTS PROGRAM W/ A STRONG BASS & A VERY HIGH 16.32MM XMAX! |
|
|
|
COMING SUMMER 2025 |
| WOOFER MODEL | 21XL3000 |
|
Specifications |
|
|
Nominal Basket Diameter |
21" |
|
Impedance |
8 ohms |
|
AES
Power Rating |
3,000 Watts |
| Program Power | 6,000 Watts |
| Frequency Response | 30Hz - 1.6kHz |
|
Sensitivity (1W/1m) |
98dB SPL |
| Voice Coil Diameter | 6.5" / 165mm |
| Winding Depth | 1.57" / 40 mm |
| Magnetic Gap Depth | 14 mm |
| X Damage | 40 mm |
| Flux Density | 1.4 T |
| BL Factor | 43 N/A |
|
Mounting Information |
|
| Overall Diameter | 21.54 / 547mm |
| Bolt Circle Diameter | 20.75" / 527mm |
| Baffle Cutout Diameter-Front Mount | 20" / 508mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 10.79 / 274mm |
| Flange & gasket Thickness | 0.63" / 16mm |
| Net Weight | 47.4 lb. / 21.5 kg. |
| Shipping Weight | 51.8 lb. / 23.5kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Treated Cloth |
| Surround Shape | Triple Roll |
| Former Material | Glass Fiber |
| Voice Coil | Aluminum |
| Demodulation Rings x 2 | Aluminum |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 30 Hz |
| Impedance (Re) | 5.9 ohms |
| Coil Inductance (Le) | 1.25 mH |
| Mechanical Q (Qms) | 8.8 |
| Electrical Factor (Qes) | .25 |
| Total Q (Qts) | .25 |
| Comp. Equivelant Vol. (Vas) | 10.05 ft3 / 284.6 Liters |
| Voice Coil Overhang (Xmax) | 17.67 mm |
| Surface Area of Cone (Sd)m2 | 0.1744m2 |
| Reference Efficiency | 1.06% |
| Diaphragm Mass (Mms) | 420 Grams |
| Mechanical Compliance (Cms) | .07 mm/N |
| Mechanical Resistance (Rms) | 9.0 Kg/s |
| EBP | 119 |
|

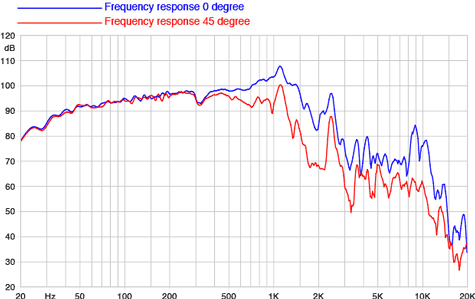

Frequency Response |
|
|
COMING SOON |
|

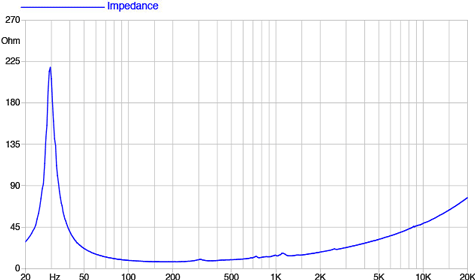

| Free Air Impedance Curve | |
| COMING SOON | |
|

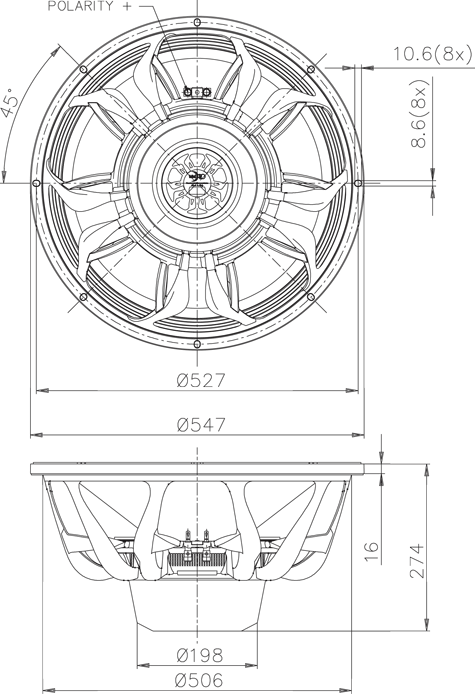

Mounting Dimensions |
|
|
|
|
