• THE NEW FAITAL PRO 21XL3000-4 21" SPEAKER CAN HANDLE A MASSIVE 3,000 WATTS AES & 6,000 WATTS PROGRAM POWER
• FEATURES A LARGE 6.5" VOICE COIL, HIGH XMAX OF 17.67MM & VERY HIGH MOTOR STRENGTH OF 43 N/A FOR A SUPER TIGHT CLEAN SOUND
• 2 DEMODULATION RINGS FOR LOWER DISTORTION & LIGHTWEIGHT NEODYMIUM MAGNET THAT WEIGHS ONLY 47.4 LB.
• WATERPROOF FRONT & BACK CONE FOR OUTDOOR USE
• DESIGNED FOR HIGH POWER PORTED (BASS REFLEX) & FOLDED HORN SUBWOOFER SPEAKER CABINETS
• DESIGNED TO DELIVER EXTREMELY HIGH IMPACT BASS FOR CINEMA, THEATER, CONCERT, SPORT FACILITIES, CHURCHES & TOURING SPEAKER SYSTEMS
• 4 OHM VERSION

THE FAITAL PRO 21XL3000 HANDLES A MASSIVE 6,000 WATTS PROGRAM W/ A STRONG BASS & A VERY HIGH 17.67MM XMAX!
	21XL3000-4 - 4 Ohms Item Price: $1,724.99 Free UPS Ground Shipping in the U.S.
WOOFER MODEL	21XL3000-4
Specifications
Nominal Basket Diameter	21" / 535mm
Impedance	4 ohms
AES Power Rating	3,000 Watts
Program Power	6,000 Watts
Frequency Response	30Hz - 1.0kHz
Sensitivity (1W/1m)	98dB SPL
Voice Coil Diameter	6.5" / 165mm
Winding Depth	1.57" / 40 mm
Magnetic Gap Depth	14 mm
X Damage	40 mm
Flux Density	1.35 T
BL Factor	35.5 N/A
Mounting Information
Overall Diameter	21.54 / 547mm
Bolt Circle Diameter	20.75" / 527mm
Baffle Cutout Diameter-Front Mount	20" / 508mm
No. Of Mounting Holes	8
Overall Depth	10.79 / 274mm
Flange & gasket Thickness	0.63" / 16mm
Net Weight	47.4 lb. / 21.5 kg.
Shipping Weight	51.8 lb. / 23.5kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Surround Shape	Triple Roll
Former Material	Glass Fiber
Voice Coil	Aluminum
Demodulation Rings x 2	Aluminum
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	32 Hz
Impedance (Re)	3 ohms
Coil Inductance (Le)	.7 mH
Mechanical Q (Qms)	17
Electrical Factor (Qes)	.22
Total Q (Qts)	.22
Comp. Equivelant Vol. (Vas)	7.89 ft3 / 223.5 Liters
Voice Coil Overhang (Xmax)	17.67 mm
Surface Area of Cone (Sd)m2	0.1744m2
Reference Efficiency	3.2%
Diaphragm Mass (Mms)	470 Grams
Mechanical Compliance (Cms)	.05 mm/N
Mechanical Resistance (Rms)	5.6 Kg/s
EBP	142

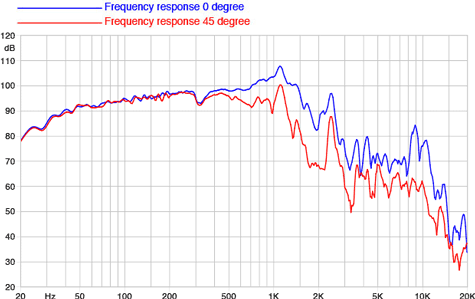

Frequency Response

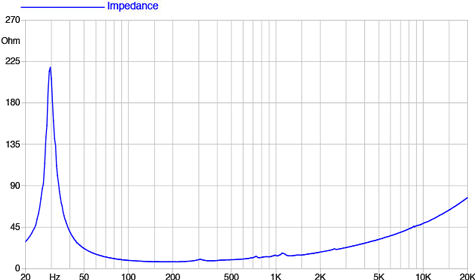

Free Air Impedance Curve
Mounting Dimensions
