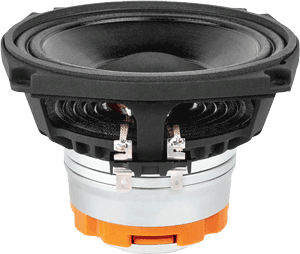

FAITAL PRO 5HX140 - 5" COAXIAL SPEAKER
|
|
|
FAITAL PRO 5HX140 - 5" COAXIAL SPEAKER |
|
THE 5HX140 5" COAXIAL SPEAKER HAS A KETONE POLYMER DIAPHRAGM FOR A SMOOTH NATURAL SOUND! |
|
|
|
Item Price: $218.95 |
| COAXIAL MODEL | 5HX140 |
|
Specifications |
|
|
Low Frequency |
|
|
Nominal
Basket Diameter |
5" |
|
Impedance |
8 ohms |
|
AES
Power Rating |
120 Watts |
| Program Power | 240 Watts |
| Frequency Response | 100Hz - 8kHz |
|
Sensitivity
(1W/1m) |
91dB SPL |
| Voice Coil Diameter | 1.46" / 37mm |
| Winding Depth | .48" / 12.2mm |
| Magnetic Gap Depth | .24" / 6.0mm |
| Flux Density | 1.3T |
| BL Factor | 8 N/A |
|
High Frequency |
|
|
AES
Power Rating |
15 Watts |
| Program Power | 30 Watts |
| Frequency Response | 1.5kHz - 18kHz |
| Sensitivity (1W/1m) | 101dB SPL |
| Voice Coil Diameter | .98" / 25mm |
| Winding Depth | ..07" / 1.7mm |
| Magnetic Gap Depth | .08" / 2.0mm |
| Flux Density | 1.3 T |
| Minimum Crossover Frequency | 1.7kHz |
| Dispersion Angle | 90° |
|
Mounting Information |
|
| Overall Diameter | 5.91"/5.05" / 150mm/128.2mm |
| Bolt Circle Diameter | 5.47" / 139mm |
| Baffle Cutout Diameter-Front Mount | 4.65" / 118mm |
| No. Of Mounting Holes | 4 |
| Overall Depth | 2.91" / 74mm |
| Flange & Gasket Thickness | 0.35" / 9mm |
| Net Weight | 2.7 lb. / 1.22 kg. |
| Shipping Weight | 3.1 lb. / 1.4 kg. |
|
Materials |
|
|
Low Frequency |
|
| Basket | Cast Aluminum |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Treated Cloth |
| Surround Shape | M Roll |
| Former Material | Kapton |
| Voice Coil | Aluminum |
| Demodulation | Aluminum Ring |
| Magnet | Neodymium |
|
High Frequency |
|
| Voice Coil | Ketone Polymer |
| Former Material | Kapton |
| Diaphragm Material | Ketone Polymer |
| Diaphragm Shape | Dome |
| Magnet | Neodymium |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 100 Hz |
| Impedance (Re) | 5.9 ohms |
| Coil Inductance (Le) | 0.29 mH |
| Mechanical Q (Qms) | 4.8 |
| Electrical Factor (Qes) | .45 |
| Total Q (Qts) | .41 |
| Comp. Equivelant Vol. (Vas) | 0.12 ft3 / 3.4 Liters |
| Voice Coil Overhang (Xmax) | 5.1 mm |
| Surface Area of Cone (Sd)m2 | 0.0085m2 |
| Reference Efficiency | .76% |
| Diaphragm Mass (Mms) | 7.5 Grams |
| Mechanical Compliance (Cms) | .34 mm/N |
| Mechanical Resistance (Rms) | 1.0 Kg/s |
| EBP | 222 |
|

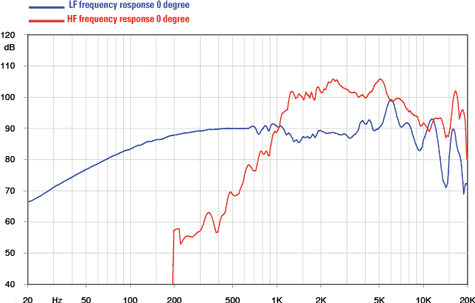

Frequency Response |
|
|
|
|

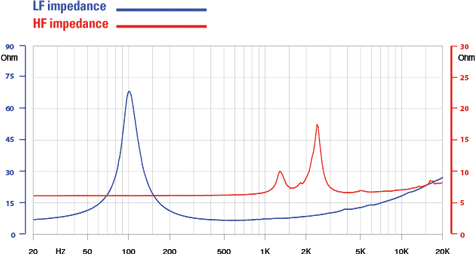

| Free Air Impedance Curve | |
 |
|
|
Directivity |
|
|
|
|

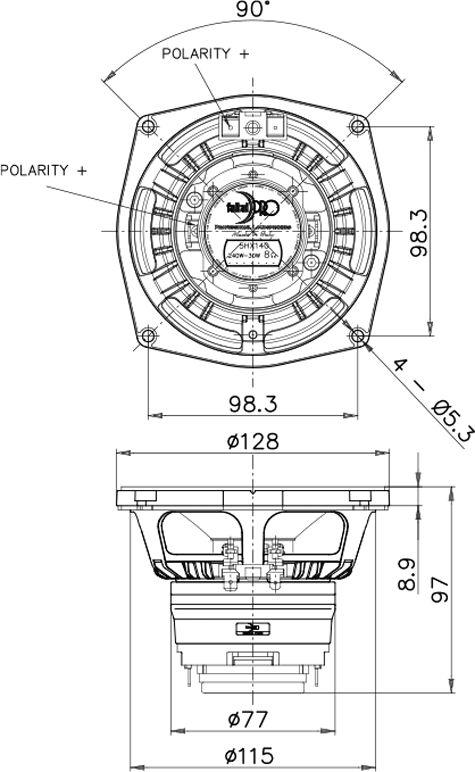

| Mounting Dimensions | |
 |
|
