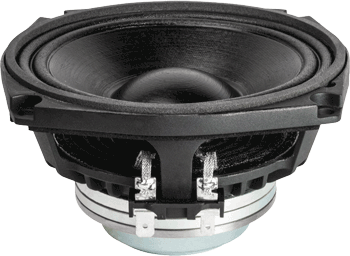

FAITAL PRO 5PR160 - NEODYMIUM 5" MIDRANGE SPEAKER

THE 5PR160 IS A SPECIALIZED 5" MIDRANGE SPEAKER THAT HANDLES 240 WATTS PROGRAM!

Faital Pro 5PR160



Item Price: $110.95

WOOFER MODEL 5PR160

Specifications

Nominal Basket Diameter 5" / 130mm
Impedance 8 ohms
AES Power Rating 120 Watts
Program Power 240 Watts
Frequency Response 100Hz - 6kHz
Sensitivity (1W/1m) 92dB SPL
Voice Coil Diameter 1.45" / 37mm
Winding Depth 12.2 mm
Magnetic Gap Depth 6.0 mm
X Damage (peak to peak) 16.85 mm
BL Factor 9.6 N/A

Mounting Information

Overall Diameter 5.91"/5.05" / 150mm/128.2mm
Bolt Circle Diameter 5.47" / 139mm
Baffle Cutout Diameter-Front Mount 4.65" / 118mm
No. Of Mounting Holes 4
Overall Depth 2.91" /74mm
Flange & Gasket Thickness 0.35" / 9mm
Net Weight 1.9 lb. / .85 kg.
Shipping Weight 2.2 lb. / 1.0 kg.

Materials

Basket Cast Aluminum
Cone Paper Pulp (Weather Proof)
Surround Treated Cloth
Surround Shape M-Roll
Former Material Kapton
Voice Coil Copper
Demodulation Aluminum Ring
Magnet Neodymium

Thiele-Small Parameters

Resonant Frequency (fs) 90 Hz
Impedance (Re) 6.1 ohms
Coil Inductance (Le) 0.3 mH
Mechanical Q (Qms) 4.4
Electrical Factor (Qes) .33
Total Q (Qts) .31
Comp. Equivelant Vol. (Vas) 0.13 ft3 / 3.7 Liters
Voice Coil Overhang (Xmax) 5.1 mm
Surface Area of Cone (Sd)m2 0.01321m2
Reference Efficiency .83%
Diaphragm Mass (Mms) 8.5 Grams
Mechanical Compliance (Cms) .37 mm/N
Mechanical Resistance (Rms) 1.1 Kg/s

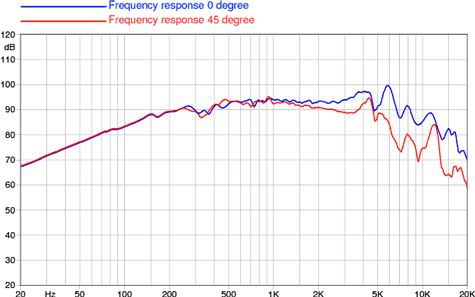

Frequency Response

Faital Pro 5PR160 Frequency

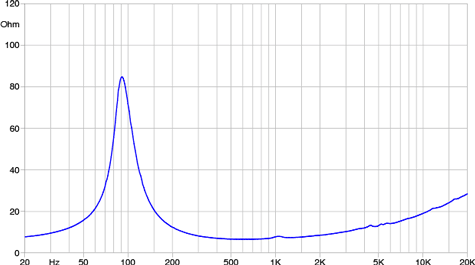

Free Air Impedance Curve
Faital Pro 5PR160 Impedance

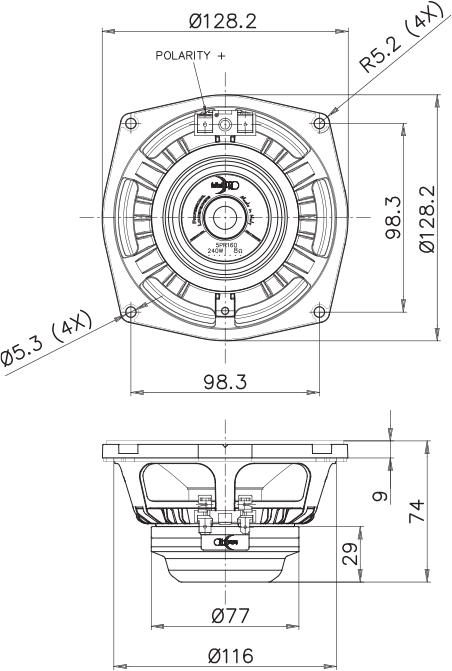

Mounting Dimensions

Faital Pro 5PR160 Drawing
