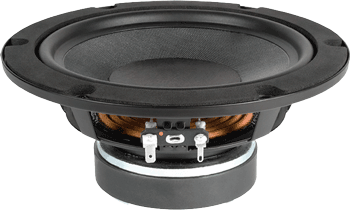

FAITAL PRO 6FE125 - 6.5" BASS / MID-BASS SPEAKER
|
|
|
FAITAL PRO 6FE125 - 6.5" BASS / MID-BASS SPEAKER |
|
THE FAITAL PRO 6FE125 6.5" SPEAKER HAS A TIGHT BASS & CLEAR MIDS W/ 200 WATTS POWER HANDLING & 5.25MM XMAX! |
|
|
|
Item Price: $51.95 |
| WOOFER MODEL | 6FE125 |
|
Specifications |
|
|
Nominal
Basket Diameter |
6.5" |
|
Impedance |
8 ohms |
|
AES
Power Rating |
100 Watts |
| Program Power | 200 Watts |
| Frequency Response | 63Hz - 5.0kHz |
|
Sensitivity
(1W/1m) |
91dB SPL |
| Voice Coil Diameter | 1.26" / 32mm |
| Voice Coil Length | 12.5 mm |
| Air Gap Height | 6.0 mm |
| X Damage | 13.15 mm |
| Flux Density | 1.0 T |
| BL Factor | 6.8 N/A |
|
Mounting Information |
|
| Overall Diameter | 7.15" / 181.8mm |
| Bolt Circle Diameter | 6.57" / 167mm |
| Baffle Cutout Diameter-Front Mount | 5.79" / 147mm |
| No. Of Mounting Holes | 6 |
| Overall Depth | 3.33" / 84.5mm |
| Flange & gasket Thickness | 0.31" / 8.0mm |
| Net Weight | 2.6 lb. / 1.2 kg. |
|
Materials |
|
| Basket | Steel |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Rubber |
| Surround Shape | Half Roll |
| Former Material | Kapton |
| Voice Coil | Copper |
| Demodulation Ring | Aluminum |
| Magnet | Ferrite |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 61 Hz |
| Impedance (Re) | 5.4 ohms |
| Coil Inductance (Le) | 0.5 mH |
| Mechanical Q (Qms) | 6.0 |
| Electrical Factor (Qes) | .6 |
| Total Q (Qts) | .55 |
| Comp. Equivelant Vol. (Vas) | 0.53 ft3 / 15.1 Liters |
| Voice Coil Overhang (Xmax) | 5.25 mm |
| Surface Area of Cone (Sd)m2 | 0.0143m2 |
| Reference Efficiency | .5% |
| Diaphragm Mass (Mms) | 14 Grams |
| Mechanical Compliance (Cms) | .48 mm/N |
| Mechanical Resistance (Rms) | .9 Kg/s |
|

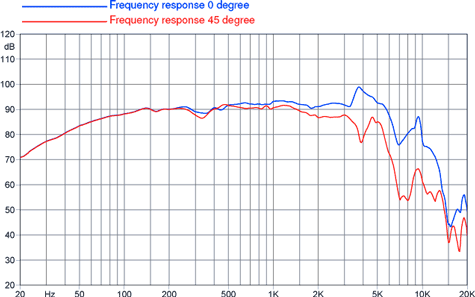

Frequency Response |
|
|
|
|

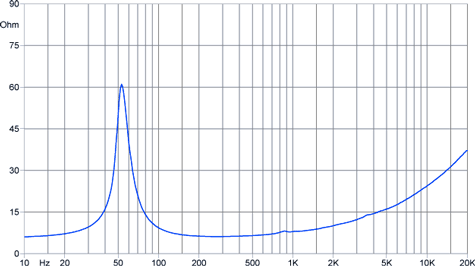

| Free Air Impedance Curve | |
 |
|
|

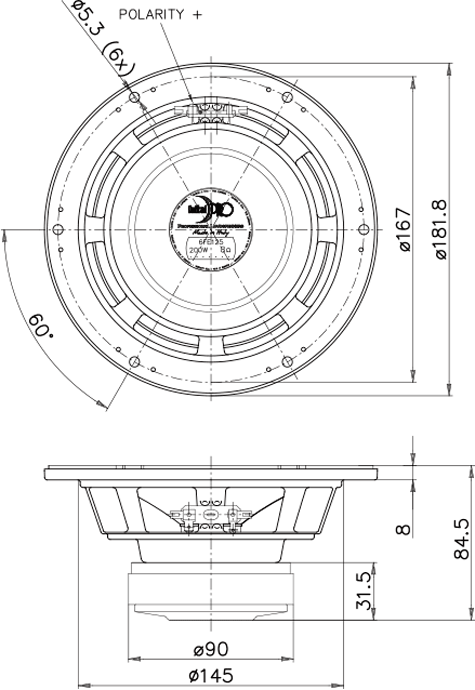

Mounting Dimensions |
|
|
|
|
