FAITAL PRO 6FE300 - 6.5" MID-BASS SPEAKER
|
|
|
FAITAL PRO 6FE300 - 6.5" MID-BASS SPEAKER |
|
THE FAITAL PRO 6FE300 6.5" SPEAKER HAS A STRONG MIDRANGE & TIGHT BASS W/ 350 WATTS POWER HANDLING! |
|
|
|
Item Price: $90.95 |
| WOOFER MODEL | 6FE300 |
|
Specifications |
|
|
Nominal
Basket Diameter |
6.5" |
|
Impedance |
8 ohms |
|
AES
Power Rating |
175 Watts |
| Program Power | 350 Watts |
| Frequency Response | 90Hz - 4.0kHz |
|
Sensitivity
(1W/1m) |
94dB SPL |
| Voice Coil Diameter | 2.05" / 52mm |
| Winding Depth | 9.8 mm |
| Magnetic Gap Depth | 6.0 mm |
| X Damage | 13.1 mm |
| BL Factor | 10 N/A |
|
Mounting Information |
|
| Overall Diameter | 6.56" / 166.5mm |
| Bolt Circle Diameter | 6.1" / 155mm |
| Baffle Cutout Diameter-Front Mount | 5.75" / 146mm |
| No. Of Mounting Holes | 4 |
| Overall Depth | 3.19" / 81mm |
| Flange & Gasket Thickness | 0.28" / 7.0mm |
| Net Weight | 6.2 lb. / 2.8 kg. |
| Shipping Weight | 7.2 lb. / 3.27 kg. |
|
Materials |
|
| Basket | Steel |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Treated Cloth |
| Former Material | Glass Fiber |
| Voice Coil | Aluminum |
| Magnet | Ferrite |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 100 Hz |
| Impedance (Re) | 5.3 ohms |
| Coil Inductance (Le) | 0.4 mH |
| Mechanical Q (Qms) | 10.5 |
| Electrical Factor (Qes) | .48 |
| Total Q (Qts) | .46 |
| Comp. Equivelant Vol. (Vas) | 0.17 ft3 / 4.7 Liters |
| Voice Coil Overhang (Xmax) | 3.9 mm |
| Surface Area of Cone (Sd)m2 | 0.0138m2 |
| Reference Efficiency | .97% |
| Diaphragm Mass (Mms) | 14.2 Grams |
| Mechanical Compliance (Cms) | .18 mm/N |
| Mechanical Resistance (Rms) | .8 Kg/s |
|

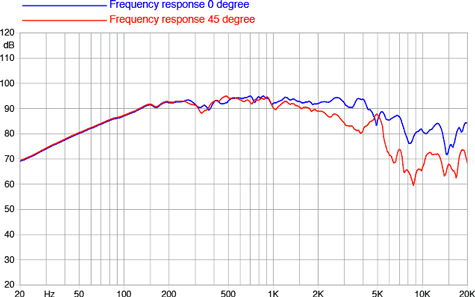

Frequency Response |
|
|
|
|

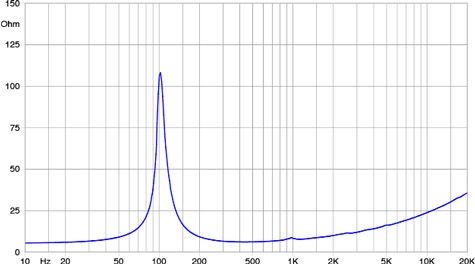

| Free Air Impedance Curve | |
 |
|
|
Mounting Dimensions |
|
|
|
|
