• THE NEW FAITAL PRO 6FE300-4 6.5" MID-BASS SPEAKER CAN HANDLE 175 WATTS AES & 350 WATTS PROGRAM POWER
• FREQUENCY RANGE FROM 100HZ TO 4.0KHZ, EFFICIENCY OF 92DB SPL & WEIGHS ONLY 6.2 LBS. THANKS
• 3.9MM XMAX FOR A TIGHT BASS SOUND WITH CLEAN NATURAL SOUNDING MIDS
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• WORKS GREAT FOR MID-BASS OR MIDRANGE IN 2 OR 3-WAY QUALITY SPEAKER SYSTEMS
• AVAILABLE IN 4 OHMS

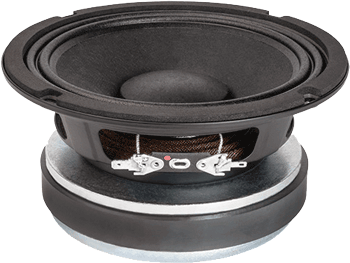

THE FAITAL PRO 6FE300-4 6.5" SPEAKER HAS A STRONG MIDRANGE & TIGHT BASS W/ 350 WATTS POWER HANDLING!
	Item Price: $90.95
WOOFER MODEL	6FE300-4
Specifications
Nominal Basket Diameter	6.5" / 160mm
Impedance	4 ohms
AES Power Rating	175 Watts
Program Power	350 Watts
Frequency Response	100Hz - 4.0kHz
Sensitivity (1W/1m)	92dB SPL
Voice Coil Diameter	2.05" / 52mm
Winding Depth	9.8 mm
Magnetic Gap Depth	6.0 mm
X Damage	16.7 mm
BL Factor	8.33 N/A
Mounting Information
Overall Diameter	6.56" / 166.5mm
Bolt Circle Diameter	6.1" / 155mm
Baffle Cutout Diameter-Front Mount	5.75" / 146mm
No. Of Mounting Holes	4
Overall Depth	3.19" / 81m
Flange & Gasket Thickness	0.28" / 7.0mm
Net Weight	6.2 lb. / 2.8 kg.
Shipping Weight	7.2 lb. / 3.27 kg.
Materials
Basket	Steel
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Former Material	Glass Fiber
Voice Coil	Aluminum
Magnet	Ferrite
Thiele-Small Parameters
Resonant Frequency (fs)	98 Hz
Impedance (Re)	3 ohms
Coil Inductance (Le)	0.4 mH
Mechanical Q (Qms)	9.8
Electrical Factor (Qes)	.43
Total Q (Qts)	.41
Comp. Equivelant Vol. (Vas)	0.15 ft3 / 4.4 Liters
Voice Coil Overhang (Xmax)	3.9 mm
Surface Area of Cone (Sd)m2	0.0138m2
Reference Efficiency	.94%
Diaphragm Mass (Mms)	16 Grams
Mechanical Compliance (Cms)	.16 mm/N
Mechanical Resistance (Rms)	1.0 Kg/s

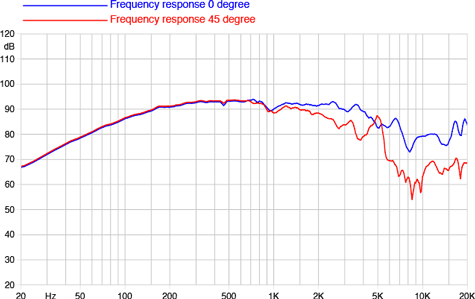

Frequency Response

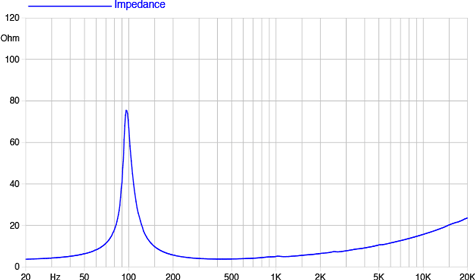

Free Air Impedance Curve
Mounting Dimensions
