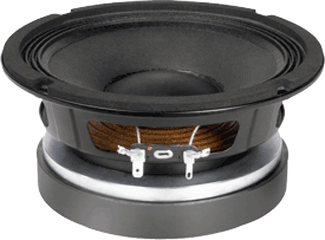

FAITAL PRO 6FE400 - 6.5" MIDRANGE SPEAKER
|
|
|
FAITAL PRO 6FE400 - 6.5" MIDRANGE SPEAKER |
|
THE FAITAL PRO 6FE400 6.5" MIDRANGE SPEAKER DELIVERS CLEAN MIDS W/ 400 WATTS POWER HANDLING! |
|
|
|
Item Price: $74.99 |
| WOOFER MODEL | 6FE400 |
|
Specifications |
|
|
Nominal
Basket Diameter |
6.5" |
|
Impedance |
8 ohms |
|
AES
Power Rating |
200 Watts |
| Program Power | 400 Watts |
| Frequency Response | 100Hz - 7.0kHz |
|
Sensitivity
(1W/1m) |
94dB SPL |
| Voice Coil Diameter | 1.74" / 44mm |
| Winding Depth | 12.2 mm |
| Magnetic Gap Depth | 8.0 mm |
| X Damage | 15.5 mm |
| BL Factor | 10.5 N/A |
|
Mounting Information |
|
| Overall Diameter | 6.56" / 166.5mm |
| Bolt Circle Diameter | 6.1" / 155mm |
| Baffle Cutout Diameter-Front Mount | 5.75" / 146mm |
| No. Of Mounting Holes | 4 |
| Overall Depth | 3.31" / 84mm |
| Flange & Gasket Thickness | 0.28" / 7.0mm |
| Net Weight | 6 lb. / 2.7 kg. |
| Shipping Weight | 6.4 lb. / 2.9 kg. |
|
Materials |
|
| Basket | Steel |
| Cone | Paper Pulp (Weather Proof) |
| Cone Surround | Triple Roll |
| Surround | Treated Cloth |
| Former Material | Aluminum |
| Voice Coil | Aluminum |
| Magnet | Ferrite |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 100 Hz |
| Impedance (Re) | 5 ohms |
| Coil Inductance (Le) | 0.42 mH |
| Mechanical Q (Qms) | 3.7 |
| Electrical Factor (Qes) | .4 |
| Total Q (Qts) | .36 |
| Comp. Equivelant Vol. (Vas) | 0.18 ft3 / 5 Liters |
| Voice Coil Overhang (Xmax) | 4.77 mm |
| Surface Area of Cone (Sd)m2 | 0.0141m2 |
| Reference Efficiency | 1.22% |
| Diaphragm Mass (Mms) | 14 Grams |
| Mechanical Compliance (Cms) | .18 mm/N |
| Mechanical Resistance (Rms) | 2.4 Kg/s |
|

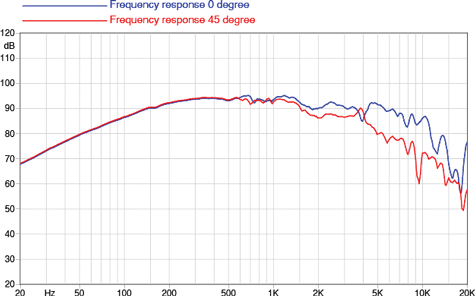

Frequency Response |
|
|
|
|

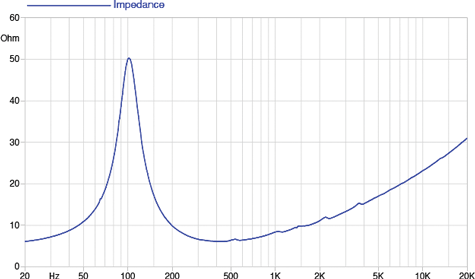

| Free Air Impedance Curve | |
 |
|
|

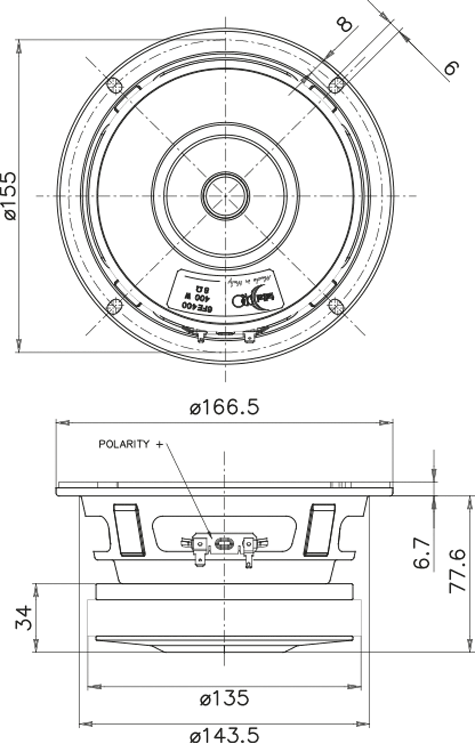

Mounting Dimensions |
|
|
|
|
