FAITAL PRO 6HX150 - 6.5" COAXIAL SPEAKER
|
|
|
FAITAL PRO 6HX150 - 6.5" COAXIAL SPEAKER |
|
THE 6HX150 6.5" COAXIAL SPEAKER HAS A KETONE POLYMER DIAPHRAGM THAT HELPS KEEP THE HIGH FREQUENCY SMOOTH SOUNDING! |
|
|
|
Item Price: $285.95 |
| COAXIAL MODEL | 6HX150 |
|
Specifications |
|
|
Low Frequency |
|
|
Nominal
Basket Diameter |
6.5" |
|
Impedance |
8 ohms |
|
AES
Power Rating |
150 Watts |
| Program Power | 300 Watts |
| Frequency Response | 90Hz - 1.6kHz |
|
Sensitivity
(1W/1m) |
92dB SPL |
| Voice Coil Diameter | 2.05" / 52mm |
| Voice Coil Length | 10.7 mm |
| Air Gap Height | 6.0 mm |
| X Damage | 10 mm |
| BL Factor | 12 N/A |
|
High Frequency |
|
|
AES
Power Rating |
15 Watts |
| Program Power | 30 Watts |
| Frequency Response | 1.5kHz - 18kHz |
| Sensitivity (1W/1m) | 104dB SPL |
| Voice Coil Diameter | .98" / 25mm |
| Voice Coil Length | 1.7 mm |
| Air Gap Height | 2.0 mm |
| Flux Density | 1.35 T |
| Minimum Crossover Frequency | 1.7kHz |
| Dispersion Angle | 90° |
|
Mounting Information |
|
| Overall Diameter | 7.34"/6.37" / 186.5mm/162mm |
| Bolt Circle Diameter | 6.77" / 172mm |
| Baffle Cutout Diameter-Front Mount | 5.79" / 147mm |
| No. Of Mounting Holes | 4 |
| Overall Depth | 3.74" / 95mm |
| Flange & Gasket Thickness | 0.37" / 9.3mm |
| Net Weight | 2.87 lb. / 1.3 kg. |
| Shipping Weight | 6.17 lb. / 2.8 kg. |
|
Materials |
|
|
Low Frequency |
|
| Basket | Cast Aluminum |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Treated Cloth |
| Surround Shape | Half Roll |
| Former Material | Glass Fiber |
| Voice Coil | Copper |
| Demodulation | Aluminum Ring |
| Magnet | Neodymium |
|
High Frequency |
|
| Voice Coil | Aluminum |
| Former Material | Kapton |
| Diaphragm Material | Ketone Polymer |
| Diaphragm Shape | Dome |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 88 Hz |
| Impedance (Re) | 5.5 ohms |
| Coil Inductance (Le) | 0.64 mH |
| Mechanical Q (Qms) | 8.3 |
| Electrical Factor (Qes) | .35 |
| Total Q (Qts) | .33 |
| Comp. Equivelant Vol. (Vas) | 0.17 ft3 / 4.8 Liters |
| Voice Coil Overhang (Xmax) | 4.35 mm |
| Surface Area of Cone (Sd)m2 | 0.013m2 |
| Reference Efficiency | 1.22% |
| Diaphragm Mass (Mms) | 13.3 Grams |
| Mechanical Compliance (Cms) | .2 mm/N |
| Mechanical Resistance (Rms) | 1.0 Kg/s |
| EBP | 251 |
|

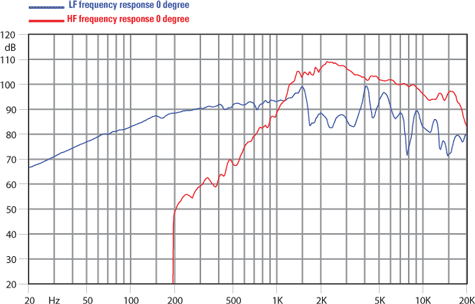

Frequency Response |
|
|
|
|

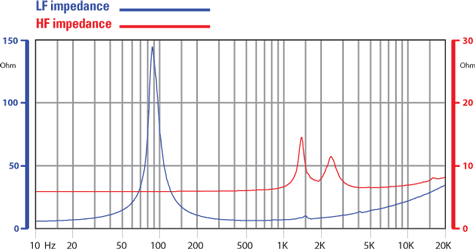

| Free Air Impedance Curve | |
 |
|
|

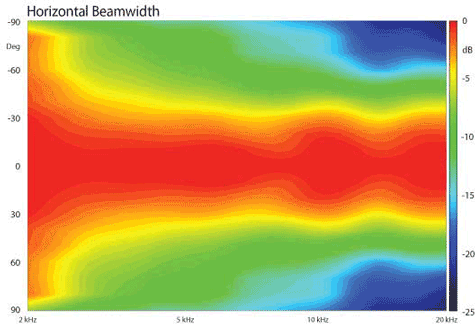

Directivity |
|
|
|
|

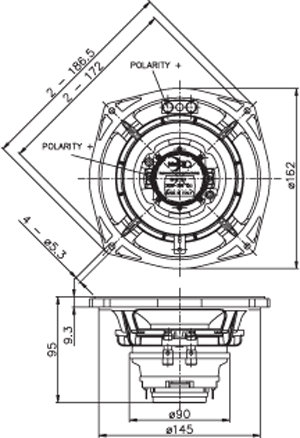

| Mounting Dimensions | |
 |
|
