• THE NEW FAITAL PRO 6PR122 6.5" MIDRANGE SPEAKER CAN HANDLE 120 WATTS AES & 240 WATTS PROGRAM POWER
• FEATURES AN ALUMINUM DEMODULATION RING FOR A FLATTER RESPONSE & LOWER DISTORTION
• WIDE FREQUENCY RANGE FROM 125HZ TO 10.0KHZ & HIGH EFFICIENCY OF 97DB SPL
• WEIGHS ONLY 2.8 LBS. THANKS TO ITS' LIGHTWEIGHT NEODYMIUM MAGNET
• MAGNET CAN NOT SHIFT BECAUSE CAST FRAME IS BUILT AROUND THE NEODYMIUM MAGNET
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• WORKS GREAT FOR MIDRANGE IN 3-WAY PA SPEAKER SYSTEMS

THE 6PR122 HAS AN ALUMINUM DEMODULATION RING FOR LOWER DISTORTION IN THE MIDRANGE!
	Item Price: $167.95
WOOFER MODEL	6PR122
Specifications
Nominal Basket Diameter	6.5" / 160mm
Impedance	8 ohms
AES Power Rating	120 Watts
Program Power	240 Watts
Frequency Response	125Hz - 10.0kHz
Sensitivity (1W/1m)	97dB SPL
Voice Coil Diameter	1.46" / 37mm
Voice Coil Length	7.5 mm
Air Gap Height	6.0 mm
X Damage	11.6 mm
BL Factor	10.5 N/A
Mounting Information
Overall Diameter	7.34"/6.37" / 186.5mm/162
Bolt Circle Diameter	6.77" / 172mm
Baffle Cutout Diameter-Front Mount	5.79" / 147mm
No. Of Mounting Holes	4
Overall Depth	3.07" / 78mm
Flange & gasket Thickness	0.37" / 9.5mm
Net Weight	2.8 lb. / 1.3 kg.
Shipping Weight	3.2 lb. / 1.5 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Surround Shape	Half Roll
Former Material	Kapton
Voice Coil	Aluminum
Demodulation	Aluminum Ring
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	110 Hz
Impedance (Re)	6.0 ohms
Coil Inductance (Le)	0.15 mH
Mechanical Q (Qms)	3.3
Electrical Factor (Qes)	.44
Total Q (Qts)	.39
Comp. Equivelant Vol. (Vas)	0.15 ft3 / 4.2 Liters
Voice Coil Overhang (Xmax)	2.75 mm
Surface Area of Cone (Sd)m2	0.0129m2
Reference Efficiency	1.22%
Diaphragm Mass (Mms)	11.7 Grams
Mechanical Compliance (Cms)	.18 mm/N
Mechanical Resistance (Rms)	2.42 Kg/s

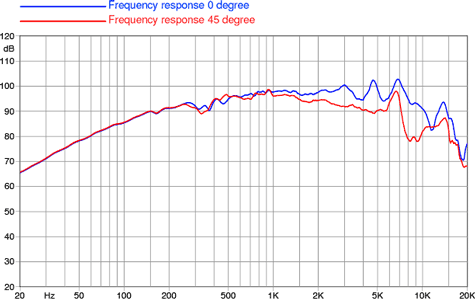

Frequency Response

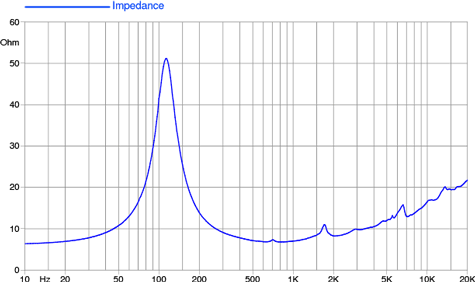

Free Air Impedance Curve

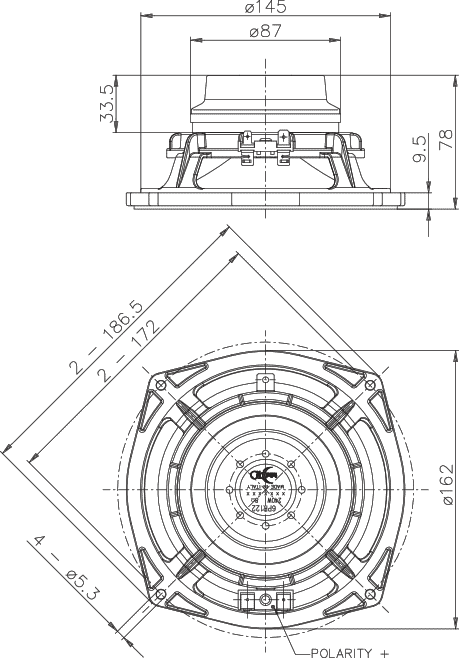

Mounting Dimensions
