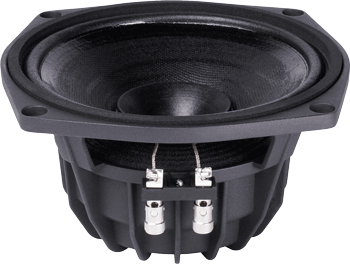

FAITAL PRO 6PR150 - 6.5" MIDRANGE SPEAKER
|
|
|
FAITAL PRO 6PR150 - 6.5" MIDRANGE SPEAKER |
|
THE 6PR150 HAS A SOFT SOUNDING LOUD MIDRANGE THAT HAS LOW DISTORTION W/ 300 WATTS POWER HANDLING! |
|
|
|
Item Price: $166.95 |
| WOOFER MODEL | 6PR150 |
|
Specifications |
|
|
Nominal
Basket Diameter |
6.5" |
|
Impedance |
8 ohms |
|
AES
Power Rating |
150 Watts |
| Program Power | 300 Watts |
| Frequency Response | 100Hz - 5.0kHz |
|
Sensitivity
(1W/1m) |
97dB SPL |
| Voice Coil Diameter | 2" / 52mm |
| Voice Coil Length | 6.6 mm |
| Air Gap Height | 6.0 mm |
| X Damage | 11.6 mm |
| BL Factor | 11.6 N/A |
|
Mounting Information |
|
| Overall Diameter | 7.34"/6.37" / 186.5mm/162 |
| Bolt Circle Diameter | 6.77" / 172mm |
| Baffle Cutout Diameter-Front Mount | 5.78" / 147mm |
| No. Of Mounting Holes | 4 |
| Overall Depth | 3.43" / 87.2mm |
| Flange & gasket Thickness | 0.29" / 7.5mm |
| Net Weight | 3.08 lb. / 1.4 kg. |
| Shipping Weight | 3.52 lb. / 1.6 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Treated Cloth |
| Former Material | Glass Fiber |
| Voice Coil | Aluminum |
| Magnet | Neodymium |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 100 Hz |
| Impedance (Re) | 5.5 ohms |
| Coil Inductance (Le) | 0.28 mH |
| Mechanical Q (Qms) | 8.8 |
| Electrical Factor (Qes) | .35 |
| Total Q (Qts) | .35 |
| Comp. Equivelant Vol. (Vas) | 0.2 ft3 / 5.8 Liters |
| Voice Coil Overhang (Xmax) | 2.3 mm |
| Surface Area of Cone (Sd)m2 | 0.01478m2 |
| Reference Efficiency | 1.63% |
| Diaphragm Mass (Mms) | 13.5 Grams |
| Mechanical Compliance (Cms) | .19 mm/N |
| Mechanical Resistance (Rms) | .96 Kg/s |
|

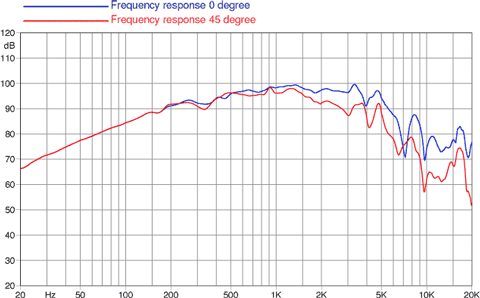

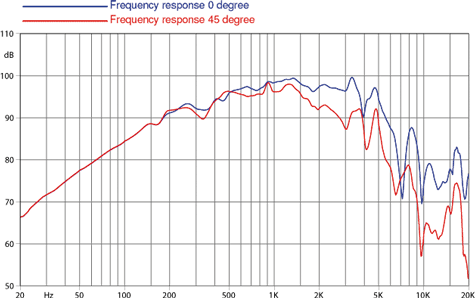

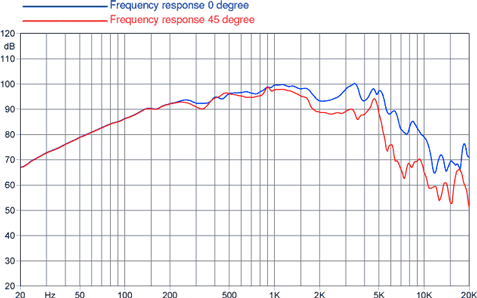

Frequency Response |
|
|
|
|

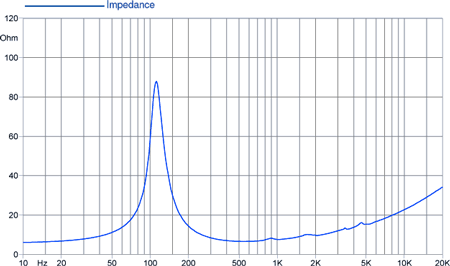

| Free Air Impedance Curve | |
 |
|
|

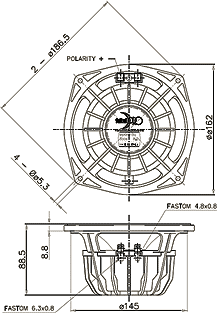

Mounting Dimensions |
|
|
|
|
